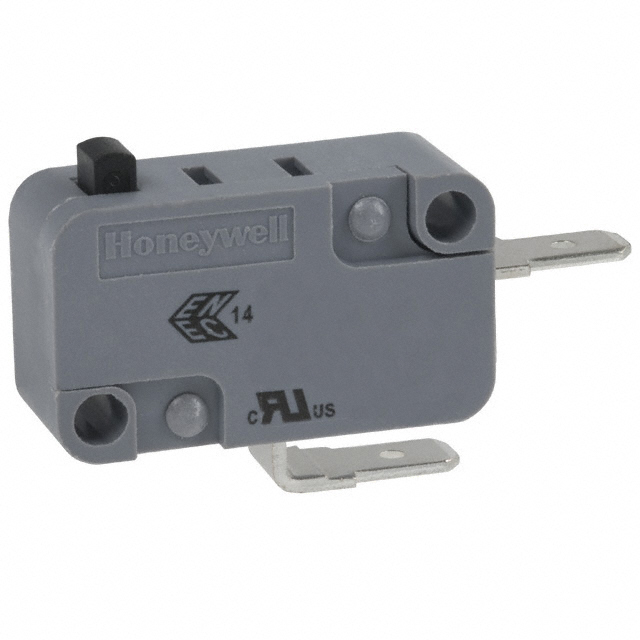

V9-16S Series
Manufacturer: Honeywell Sensing and Productivity Solutions
Beta
⌘K
SWITCH SNAP ACT SPST-NO 16A 125V
| Part | Mechanical Life | Termination Style | Overtravel [custom] | Overtravel [custom] | Operating Temperature [Min] | Operating Temperature [Max] | Electrical Life | Actuator Type | Differential Travel | Differential Travel | Operating Position | Operating Position | Current Rating (Amps) | Circuit | Mounting Type | Voltage Rating - AC | Switch Function | Operating Force | Pretravel | Pretravel |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Honeywell Sensing and Productivity Solutions | 5000000 Cycles | Quick Connect | 0.7 mm | 0.026 " | -25 °C | 125 °C | 6000 Cycles | Round (Pin Plunger) | 1.2 mm | 0.047 in | 14.4 mm | 0.567 in | 16 A | SPST-NO | Chassis Mount | 125 V | Off-Mom | 510 gf | 1.9 mm | 0.075 in |
