0FHZ0007Z Series

7-Stud ZCase Fuse Box Full Assembly

Manufacturer: Littelfuse/Commercial Vehicle Products

Catalog

7-Stud ZCase Fuse Box Full Assembly

Part	Voltage	Orientation	Termination Style	Number of Circuits	For Use With/Related Products	Mounting Type	Fuse Type	Current Rating (Amps)	Fuseholder Type
Littelfuse/Commercial Vehicle Products 0FHZ0007Z	80 V	Horizontal and Vertical	Bolt Down	7	ZCASE®	Chassis Mount	Bolt Down	400 A	Holder

Catalog

7-Stud ZCase Fuse Box Full Assembly

Key Features

• Seven-stud fuse box with an M8 input and six M8 outputs

• Full assembly includes the base, studs, nuts, seven-position bus bar (882-869-7), bottom caps, dust covers, tether, and a cover with latches

Description

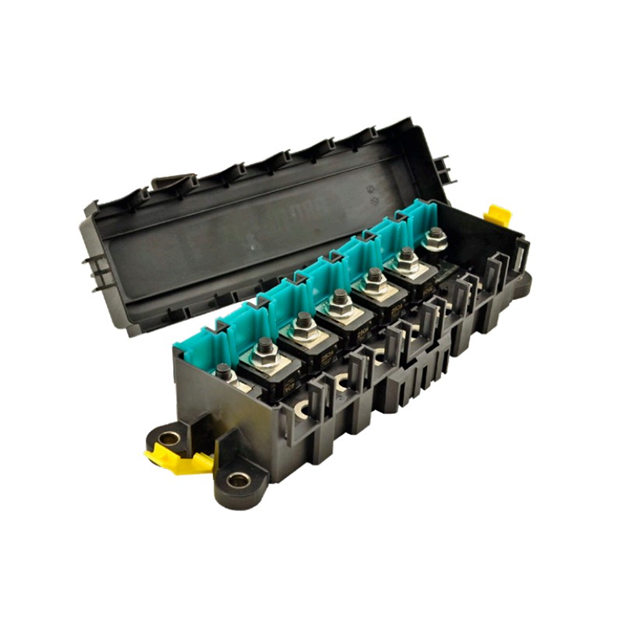

This ZCASE® FHZ bolt-down power distribution module (0FHZ0007Z) is a seven-stud fuse holder designed for primary high-current power distribution. It features an M8 input stud and six M8 output studs. The unsealed configuration of the ZCASE® FHZ fuse box includes a seven-position bus bar, and it comes with dust covers, a tether, and a cover with latches to protect installed fuses (sold separately) from debris.
