LPH80 Series

Catalog

FAN AXIAL 80X25MM 90-264VAC

Part	Lifetime @ Temp.	Voltage Range [Min]	Voltage Range [Max]	Material - Blade	Current Rating (Amps)	Material - Frame	Power (Watts)	Termination	Fan Type	Bearing Type	Voltage - Rated [Max]	Voltage - Rated [Min]	Static Pressure	Static Pressure	Approval Agency	Features	Air Flow	Air Flow	Noise	Size / Dimension [z]	Size / Dimension [x]	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	RPM	Width [y]	Termination	Ingress Protection	Weight [custom]	Weight [custom]
Mechatronics Fan Group LPH80B99-BTMR	50000 Hrs	90 VAC	264 VAC	Plastic	50 mA	Plastic	2.4 W	2	Tubeaxial	Ball	240 VAC	100 VAC	42.3 Pa	0.17 in H2O	CE cUL TUV UL	Auto Restart Electronic Commutation (EC)	0.896 m³/min	32 CFM	27 dB(A)	80 mm	80 mm	-40 C	70 °C	70 °C	-40 °C	3000 RPM	25.5 mm

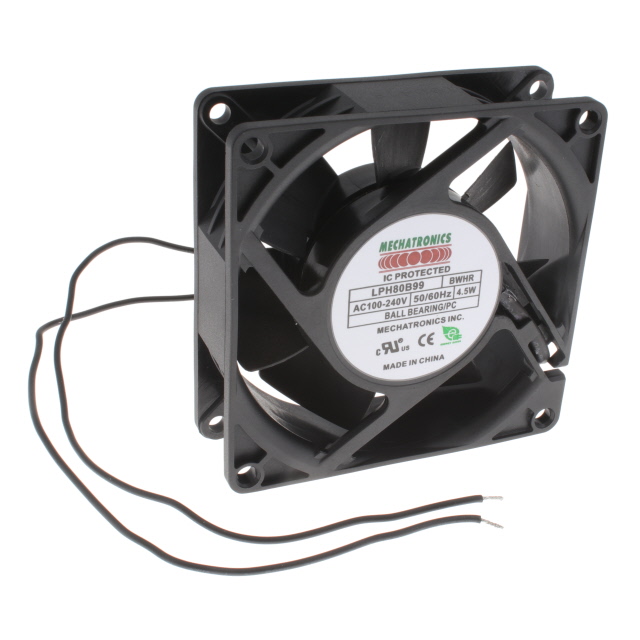

Mechatronics Fan Group LPH80B99-BWHR-PC		90 VAC	264 VAC	Plastic	60 mA	Plastic	4.5 W		Tubeaxial	Ball	240 VAC	100 VAC	62.3 Pa	0.25 in H2O		Auto Restart Electronic Commutation (EC) Parylene Coating	1.09 m³/min	39 CFM	31 dB(A)	80 mm	80 mm					3500 RPM	25.5 mm	2 Wire Leads	IP55 - Dust Protected Water Resistant	94.89 g	0.209 lb
