305-064 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 64POS 0.156

Part	Termination Rows [custom]	Material - Insulation	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Card Thickness [Max]	Card Thickness [Min]	Contact Type	Gender	Number of Positions/Bay/Row	Mounting Type	Contact Finish Thickness	Contact Finish Thickness	Pitch	Pitch	Color	Read Out	Contact Material	Card Type	Contact Finish	Number of Rows [custom]	Number of Positions	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]	Features

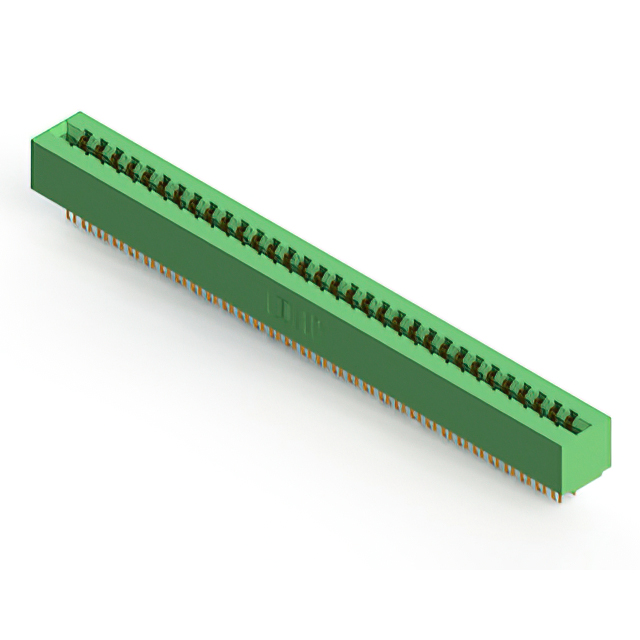

EDAC Inc. 305-064-500-201	2	Polyester Thermoplastic	Solder Eyelet(s)	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	Semi Bellows	Female	32	Free Hanging (In-Line)	0.25 Ám	10 Áin	3.96 mm	0.156 in	Green	Dual	Copper Alloy	Non Specified - Dual Edge	Gold	2	64

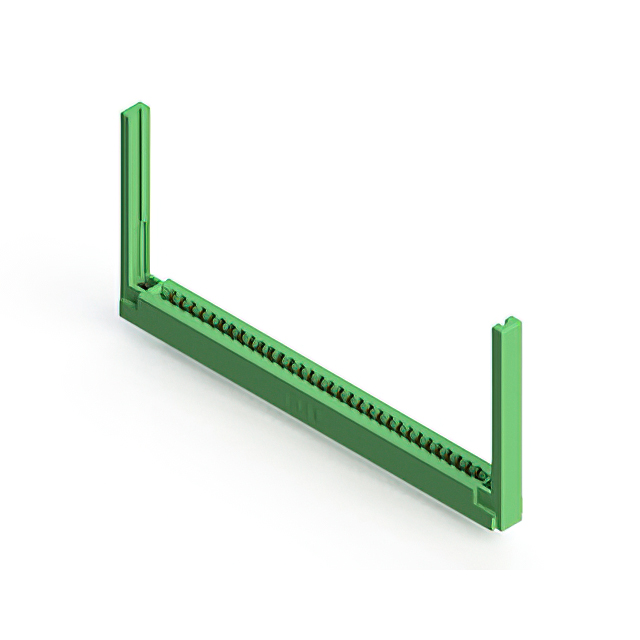

EDAC Inc. 305-064-521-568	2	Polyester Thermoplastic	Solder	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	Semi Bellows	Female	32	Panel Mount Through Hole	0.25 Ám	10 Áin	3.96 mm	0.156 in	Green	Dual	Copper Alloy	Non Specified - Dual Edge	Gold	2	64	4-40 Flush Mount Threaded Insert Top Opening

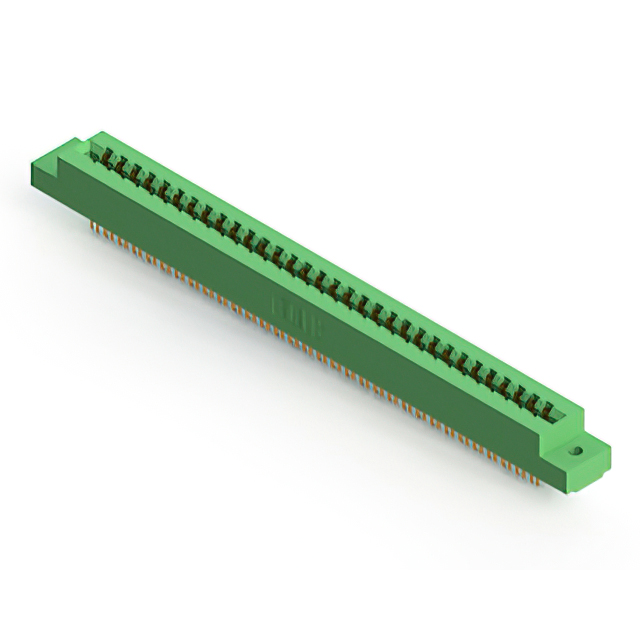

EDAC Inc. 305-064-500-502	2	Polyester Thermoplastic	Solder Eyelet(s)	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	Semi Bellows	Female	32	Panel Mount	0.25 Ám	10 Áin	3.96 mm	0.156 in	Green	Dual	Copper Alloy	Non Specified - Dual Edge	Gold	2	64	Flush Mount Top Opening Unthreaded	3.25 mm	0.128 "

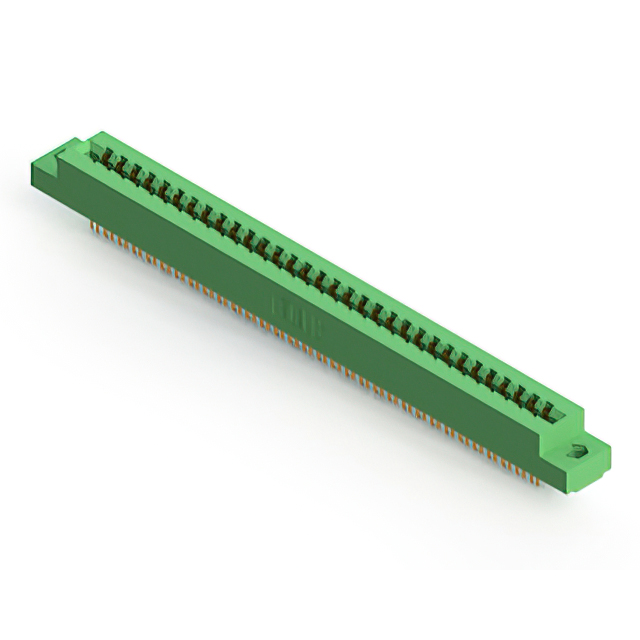

EDAC Inc. 305-064-500-204	2	Polyester Thermoplastic	Solder Eyelet(s)	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	Semi Bellows	Female	32	Panel Mount	0.25 Ám	10 Áin	3.96 mm	0.156 in	Green	Dual	Copper Alloy	Non Specified - Dual Edge	Gold	2	64	Flush Mount Top Opening Unthreaded	3.96 mm	0.156 "

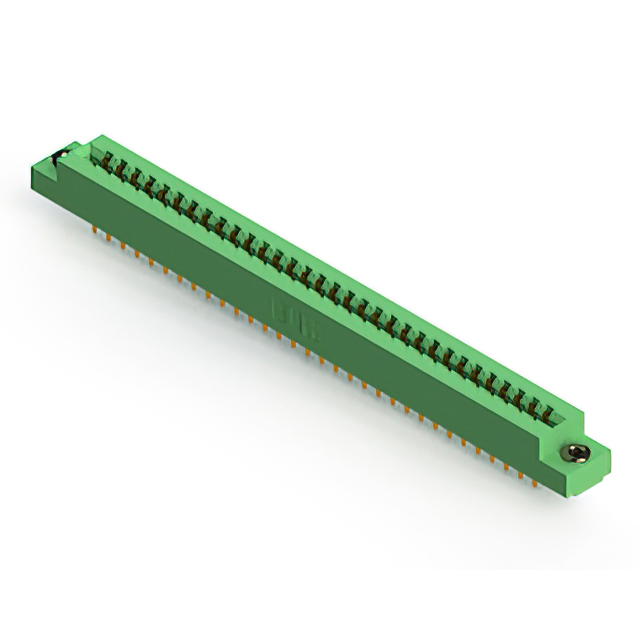

EDAC Inc. 305-064-520-203	2	Polyester Thermoplastic	Solder	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	Semi Bellows	Female	32	Panel Mount Through Hole	0.25 Ám	10 Áin	3.96 mm	0.156 in	Green	Dual	Copper Alloy	Non Specified - Dual Edge	Gold	2	64	Floating Bobbin Flush Mount	2.95 mm	0.116 "
EDAC Inc. 305-064-555-502	2	Polyester Thermoplastic	Solder	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	Semi Bellows	Female	32	Board Edge Straddle Mount	0.25 Ám	10 Áin	3.96 mm	0.156 in	Green	Dual	Copper Alloy	Non Specified - Dual Edge	Gold	2	64	Flush Mount Top Opening Unthreaded	3.25 mm	0.128 "	Card Extender

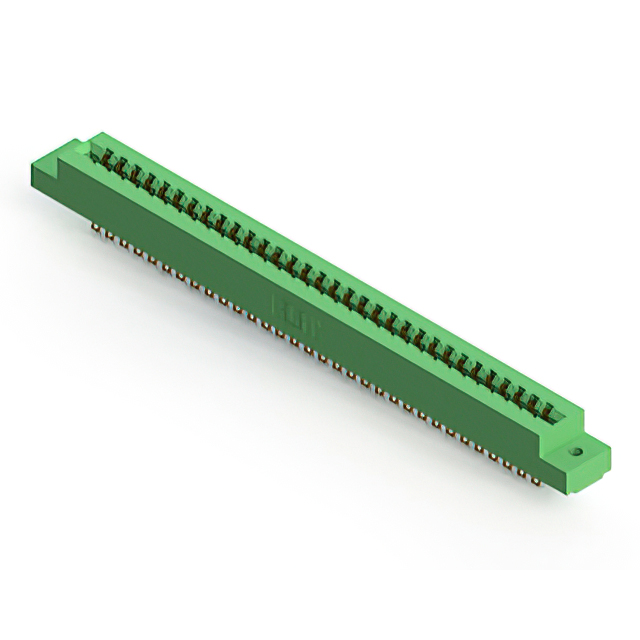

EDAC Inc. 305-064-555-202	2	Polyester Thermoplastic	Solder	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	Semi Bellows	Female	32	Board Edge Straddle Mount	0.25 Ám	10 Áin	3.96 mm	0.156 in	Green	Dual	Copper Alloy	Non Specified - Dual Edge	Gold	2	64	Flush Mount Top Opening Unthreaded	3.25 mm	0.128 "	Card Extender

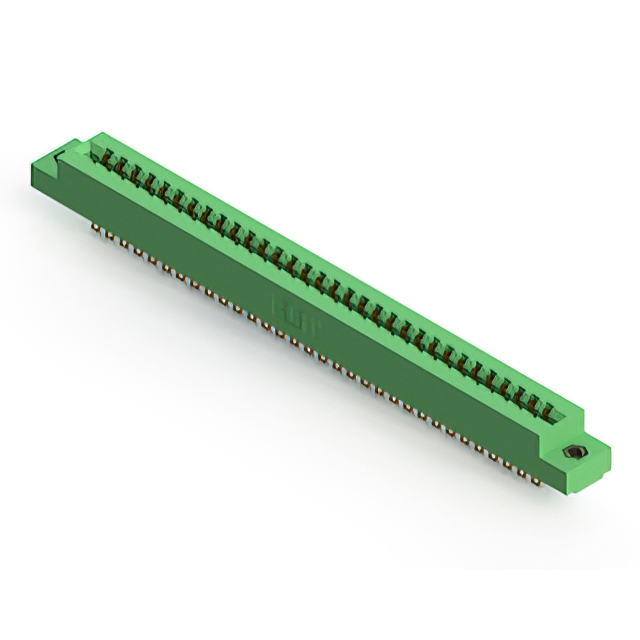

EDAC Inc. 305-064-555-207	2	Polyester Thermoplastic	Solder	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	Semi Bellows	Female	32	Board Edge Straddle Mount	0.25 Ám	10 Áin	3.96 mm	0.156 in	Green	Dual	Copper Alloy	Non Specified - Dual Edge	Gold	2	64	Flush Mount M3 Threaded Insert Top Opening			Card Extender

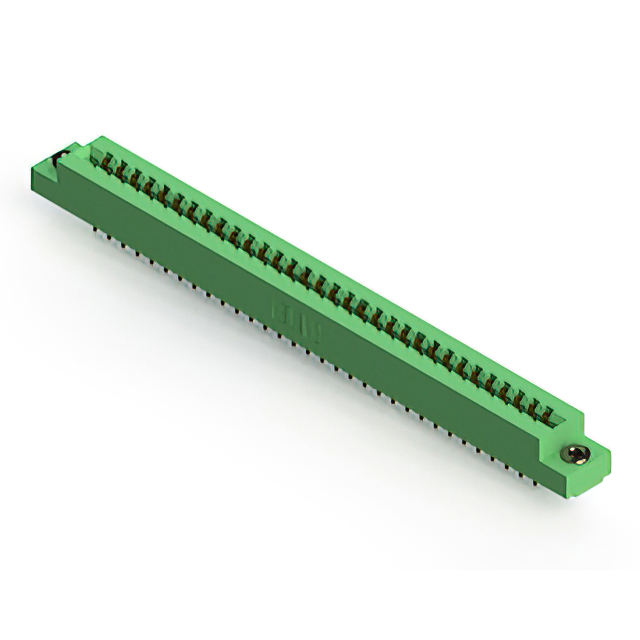

EDAC Inc. 305-064-556-203	2	Polyester Thermoplastic	Solder	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	Semi Bellows	Female	32	Board Edge Straddle Mount	0.25 Ám	10 Áin	3.96 mm	0.156 in	Green	Dual	Copper Alloy	Non Specified - Dual Edge	Gold	2	64	Floating Bobbin Flush Mount	2.95 mm	0.116 "	Card Extender
EDAC Inc. 305-064-500-568	2	Polyester Thermoplastic	Solder Eyelet(s)	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	Semi Bellows	Female	32	Panel Mount	0.25 Ám	10 Áin	3.96 mm	0.156 in	Green	Dual	Copper Alloy	Non Specified - Dual Edge	Gold	2	64	4-40 Flush Mount Threaded Insert Top Opening
