MXC8-PW Series

Manufacturer: Lumileds

Catalog

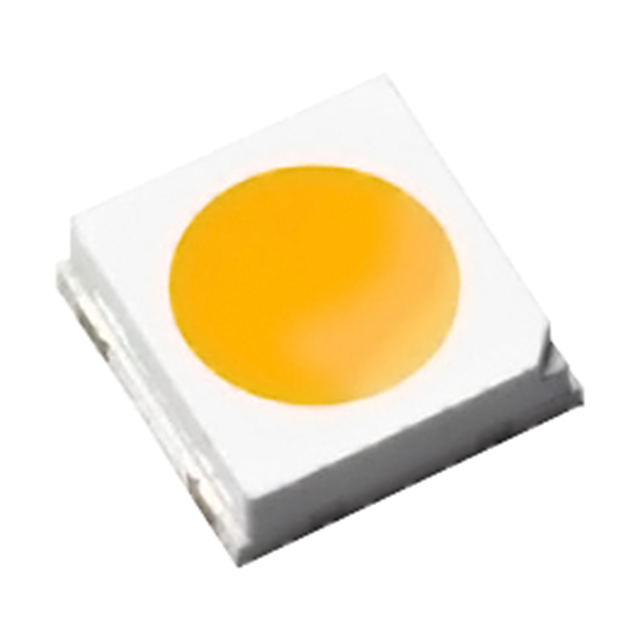

LED LUXEON WARM WHITE 2700K 3535

Part	Thermal Resistance of Package	Flux @ 25°C, Current - Test	Mounting Type	Current - Test	Color	Viewing Angle	CRI (Color Rendering Index)	Current - Max [Max]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Supplier Device Package	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Voltage - Forward (Vf) (Typ)	Package / Case	CCT (K)	Lumens/Watt @ Current - Test
Lumileds MXC8-PW27-VZ05	18 °C/W	80 lm	Surface Mount	100 mA	Warm White	115 °	80	200 mA	0.035 in	0.9 mm	3535	3.4 mm	0.138 in	3.5 mm	0.134 in	6.1 V	1414 (3535 Metric)	2700 K	131 lm/W
Lumileds MXC8-PW27-YD02	18 °C/W	80 lm	Surface Mount	100 mA	Warm White	115 °	80	200 mA	0.035 in	0.9 mm	3535	3.4 mm	0.138 in	3.5 mm	0.134 in	6.1 V	1414 (3535 Metric)	2700 K	131 lm/W
Lumileds MXC8-PW50-0000	18 °C/W	75 lm	Surface Mount	100 mA	Cool White	115 °	80	200 mA	0.035 in	0.9 mm	3535	3.4 mm	0.138 in	3.5 mm	0.134 in	6.1 V	1414 (3535 Metric)	5000 K	123 lm/W
Lumileds MXC8-PW30-0038	18 °C/W	80 lm	Surface Mount	100 mA	Warm White	115 °	80	200 mA	0.035 in	0.9 mm	3535	3.4 mm	0.138 in	3.5 mm	0.134 in	6.1 V	1414 (3535 Metric)	3000 K	131 lm/W
Lumileds MXC8-PW27-0000	18 °C/W	69 lm	Surface Mount	100 mA	Warm White	115 °	80	200 mA	0.035 in	0.9 mm	3535	3.4 mm	0.138 in	3.5 mm	0.134 in	6.1 V	1414 (3535 Metric)	2700 K	113 lm/W
Lumileds MXC8-PW40-WY04	18 °C/W	82 lm	Surface Mount	100 mA	Neutral White	115 °	80	200 mA	0.035 in	0.9 mm	3535	3.4 mm	0.138 in	3.5 mm	0.134 in	6.1 V	1414 (3535 Metric)	4000 K	134 lm/W
Lumileds MXC8-PW57-0038	18 °C/W	73 lm	Surface Mount	100 mA	Cool White	115 °	80	200 mA	0.035 in	0.9 mm	3535	3.4 mm	0.138 in	3.5 mm	0.134 in	6.1 V	1414 (3535 Metric)	5700 K	120 lm/W
Lumileds MXC8-PW27-XB03	18 °C/W	80 lm	Surface Mount	100 mA	Warm White	115 °	80	200 mA	0.035 in	0.9 mm	3535	3.4 mm	0.138 in	3.5 mm	0.134 in	6.1 V	1414 (3535 Metric)	2700 K	131 lm/W
