RJE06188 Series
Manufacturer: Amphenol ICC (Commercial Products)
Beta
⌘K

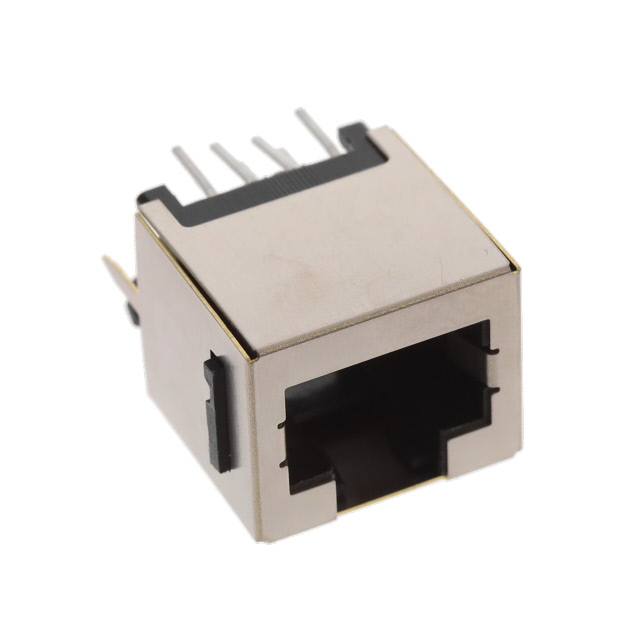

CONN MOD JACK 8P8C VERT SHIELDED
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Housing Material | Contact Finish Thickness | Contact Finish Thickness | Tab Direction | Termination | Mounting Type | Contact Finish | Number of Rows | Number of Positions/Contacts | Orientation | Contact Material | LED Color | Connector Type | Shielding | Number of Ports | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol ICC (Commercial Products) | 70 °C | -40 C | Thermoplastic | 0.38 µm | 15 µin | User Selectable | Solder | Through Hole | Gold | 1 | 8p8c (RJ45 Ethernet) | Vertical | Phosphor Bronze | Does Not Contain LED | Jack | Shielded | 1 | Board Lock Panel Stops |
 Amphenol ICC (Commercial Products) | 70 °C | -40 C | Thermoplastic | 1.27 µm | 50 µin | User Selectable | Solder | Through Hole | Gold | 1 | 8p8c (RJ45 Ethernet) | Vertical | Phosphor Bronze | Does Not Contain LED | Jack | Shielded | 1 | Board Lock Panel Stops |
 Amphenol ICC (Commercial Products) | 70 °C | -40 C | Thermoplastic | 0.76 Ám | 30 Áin | User Selectable | Solder | Through Hole | Gold | 1 | 8p8c (RJ45 Ethernet) | Vertical | Phosphor Bronze | Does Not Contain LED | Jack | Unshielded | 1 | Board Lock |
 Amphenol ICC (Commercial Products) | 70 °C | -40 C | Thermoplastic | 0.152 Ám | 6 Áin | User Selectable | Solder | Through Hole | Gold | 1 | 8p8c (RJ45 Ethernet) | Vertical | Phosphor Bronze | Does Not Contain LED | Jack | Shielded | 1 | Board Lock Panel Stops |
Amphenol ICC (Commercial Products) | 70 °C | -40 C | Thermoplastic | 0.152 Ám | 6 Áin | User Selectable | Solder | Through Hole | Gold | 1 | 8p8c (RJ45 Ethernet) | Vertical | Phosphor Bronze | Does Not Contain LED | Jack | Unshielded | 1 | Board Lock |
Amphenol ICC (Commercial Products) | 70 °C | -40 C | Thermoplastic | 0.76 Ám | 30 Áin | User Selectable | Solder | Through Hole | Gold | 1 | 8p8c (RJ45 Ethernet) | Vertical | Phosphor Bronze | Does Not Contain LED | Jack | Shielded | 1 | Board Lock Panel Stops |
