81C2A Series
Manufacturer: Bourns Inc.
Beta
⌘K

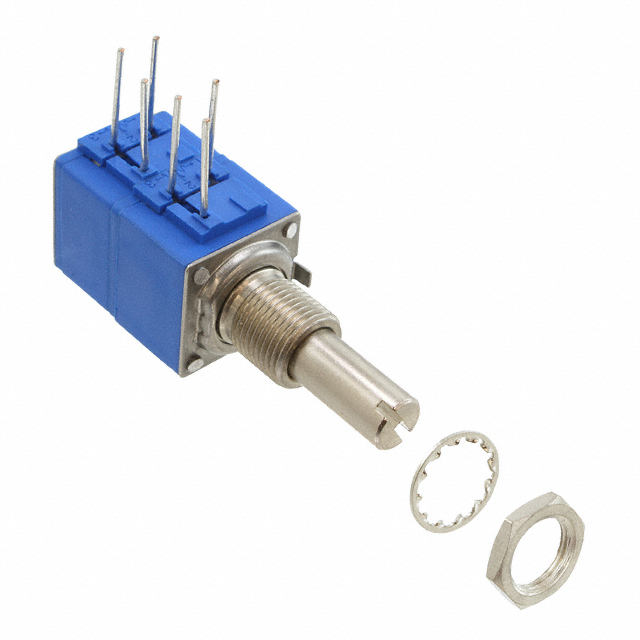

POT 10K OHM 1/4W PLASTIC LOG
| Part | Resistance (Ohms) | Actuator Diameter [diameter] | Actuator Diameter [diameter] | Taper | Actuator Type | Mounting Type | Number of Turns | Tolerance | Built in Switch | Temperature Coefficient | Size - Body [y] | Size - Body [y] | Size - Body [x] | Size - Body [x] | Rotation | Actuator Length [x] | Actuator Length [x] | Termination Style | Bushing Thread | Number of Gangs | Power (Watts) | Power (Watts) | Adjustment Type | Resistive Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bourns Inc. | 10k | 3.18 mm | 0.125 in | Logarithmic | Slotted | Panel Mount | 1 | 20 % | None | 1000 ppm/°C | 0.625 " | 15.88 mm | 0.625 " | 15.88 mm | 300 ░ | 19.05 mm | 0.75 in | PC Pins | 1/4-32 | 2 | 0.25 W | 0.25 W | Side Adjustment | Conductive Plastic |
