GLCA01 Series
Manufacturer: Honeywell Sensing and Productivity Solutions
Beta
⌘K
SWITCH SNAP ACTION SPDT 6A 120V
| Part | Pretravel | Pretravel | Ingress Protection | Termination Style | Overtravel | Overtravel | Actuator Type | Circuit | Operating Position | Operating Position | Operating Force | Voltage Rating - DC | Operating Temperature [Max] | Operating Temperature [Min] | Mechanical Life | Current Rating (Amps) | Voltage Rating - AC | Mounting Type | Switch Function | Features | Differential Travel |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

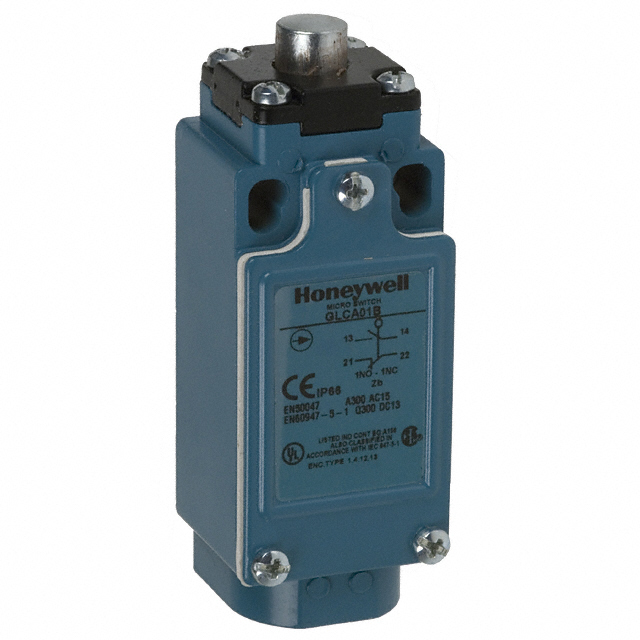

 Honeywell Sensing and Productivity Solutions | 0.12 in | 3 mm | IP67 - Dust Tight Waterproof | Screw Terminal | 3 mm | 0.118 in | Round (Pin Plunger) | SPDT | 18 mm | 0.71 " | 1632 gf | 125 VDC | 85 °C | -40 °C | 15000000 Cycles | 6 A 550 mA | 120 V | Chassis Mount | On-Mom | ||
Honeywell Sensing and Productivity Solutions | 26 ° | IP67 - Dust Tight Waterproof | Screw Terminal | 49 ° | Roller Side Rotary | SPDT | 26 ° | 12 gfm | 125 VDC | 85 °C | -40 °C | 10000000 Cycles | 6 A 550 mA | 120 V | Chassis Mount | On-Mom | Steel Roller | 12 ° | |||

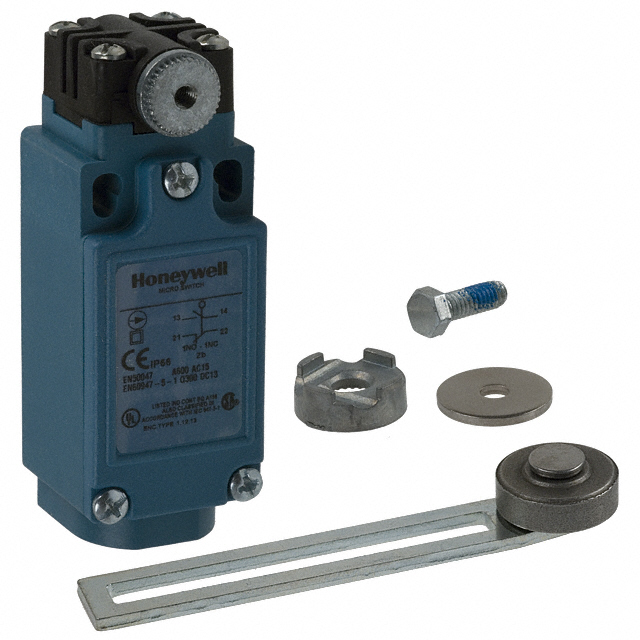

 Honeywell Sensing and Productivity Solutions | 26 ° | IP67 - Dust Tight Waterproof | Screw Terminal | 49 ° | Side Rotary Adjustable Roller | SPDT | 26 ° | 12 gfm | 125 VDC | 85 °C | -40 °C | 10000000 Cycles | 6 A 550 mA | 120 V | Chassis Mount | On-Mom | Steel Roller | 12 ° | |||

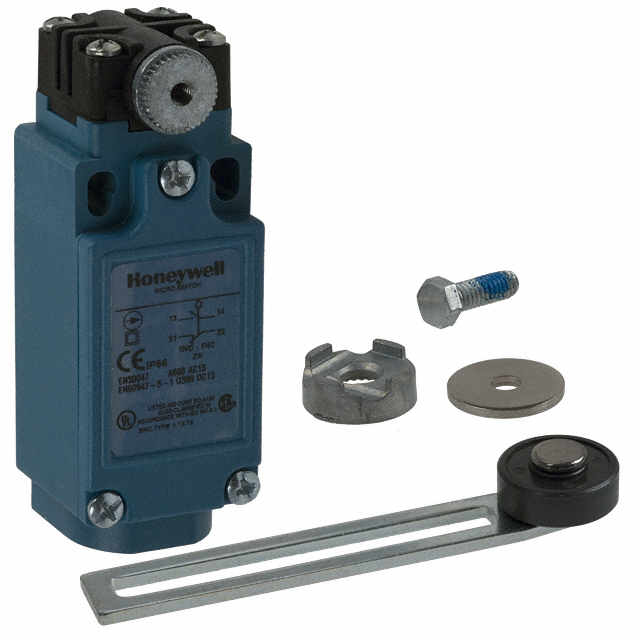

 Honeywell Sensing and Productivity Solutions | 26 ° | IP67 - Dust Tight Waterproof | Screw Terminal | 49 ° | Side Rotary Adjustable Roller | SPDT | 26 ° | 12 gfm | 125 VDC | 85 °C | -40 °C | 10000000 Cycles | 6 A 550 mA | 120 V | Chassis Mount | On-Mom | Nylon Roller | 12 ° |
