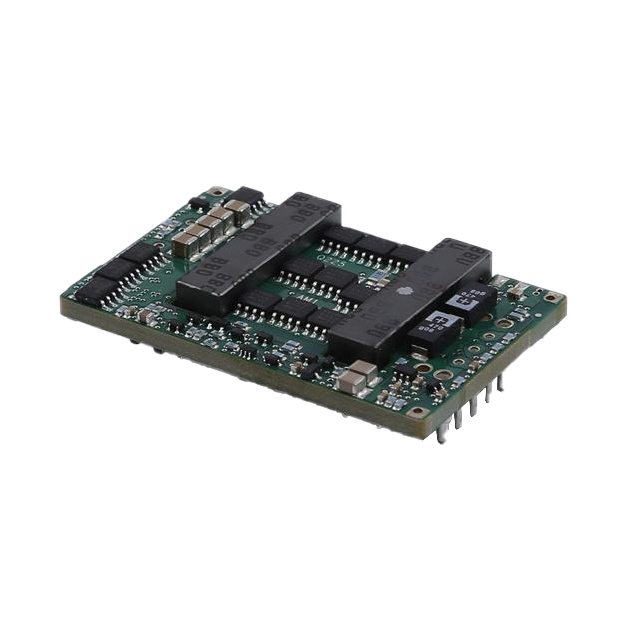

QPS4033 Series
Manufacturer: NetPower
Beta
⌘K
DC DC CONVERTER 3.3V 182W
| Part | Applications | Mounting Type | Type | Current - Output (Max) [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Number of Outputs | Package / Case | Control Features | Power (Watts) | Supplier Device Package | Voltage - Input (Max) [Max] | Voltage - Input (Min) [Min] | Efficiency | Voltage - Output 1 | Voltage - Isolation | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [z] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NetPower | ITE (Commercial) | Through Hole | Isolated Module | 55 A | 85 °C | -40 C | 1 | Quarter Brick | Active Low Enable | 182 W | Quarter Brick | 75 V | 36 V | 93 % | 3.3 V | 2250 VDC | 57.9 mm | 10.2 mm | 2.28 " | 36.8 mm | 1.45 in | 0.4 " | Adjustable Output Remote On/Off Remote Sense |
