19396060 Series
Manufacturer: HARTING
Beta
⌘K

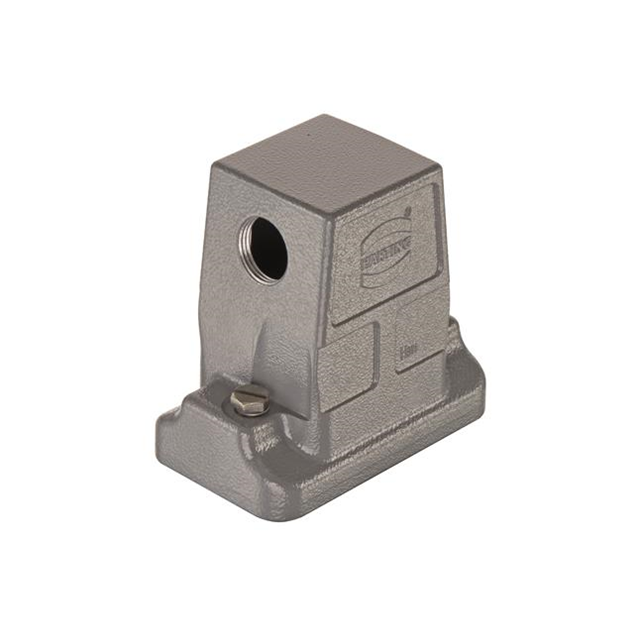

HAN 6 HP DIRECT B HOOD, SIDE ENTRY, M20
| Part | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Housing Finish | Size | Thread Size | Housing Color | Operating Temperature [Max] | Operating Temperature [Min] | Style | Connector Type | Lock Location | Housing Material | Ingress Protection |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 HARTING | 2.244 " | 93 mm | 3.583 in | 57 mm | 3.661 " | 91 mm | Powder Coated | 6B | M20 | Gray | 125 °C | -40 C | Side Entry | Hood | Screw Locks on Hood | Aluminum Die Cast | IP66 IP68 IP69K |
HARTING | 2.244 " | 93 mm | 3.583 in | 57 mm | 3.661 " | 91 mm | Powder Coated | 6B | M25 | Gray | 125 °C | -40 C | Side Entry | Hood | Screw Locks on Hood | Aluminum Die Cast | IP66 IP68 IP69K |
