ED360 Series

Catalog

TERM BLK 6P TOP ENTRY 7.5MM PCB

Part	Contact Material - Plating	Clamp Material - Plating	Operating Temperature [Min]	Operating Temperature [Max]	Housing Material	Screw Thread	Torque - Screw	Torque - Screw	Current	Voltage	Mounting Type	Pitch	Pitch	Mating Orientation	Number of Levels	Positions Per Level	Wire Gauge [Max]	Wire Gauge [Min]	Color	Wire Termination
On Shore Technology Inc. ED360/6	Brass	Copper	-30 ░C	105 ░C	Polyamide (PA) Nylon	M3	4.4 Lb-In	0.5 Nm	16 A	300 VDC	Through Hole	0.295 in	7.5 mm	Vertical with Board	1	6	22 AWG	12 AWG	Green	Screw - Rising Cage Clamp
On Shore Technology Inc. ED360/2	Brass	Copper	-30 ░C	105 ░C	Polyamide (PA) Nylon	M3	4.4 Lb-In	0.5 Nm	16 A	300 VDC	Through Hole	0.295 in	7.5 mm	Vertical with Board	1	2	22 AWG	12 AWG	Green	Screw - Rising Cage Clamp
On Shore Technology Inc. ED360/11	Brass	Copper	-30 ░C	105 ░C	Polyamide (PA) Nylon	M3	4.4 Lb-In	0.5 Nm	16 A	300 VDC	Through Hole	0.295 in	7.5 mm	Vertical with Board	1	11	22 AWG	12 AWG	Green	Screw - Rising Cage Clamp
On Shore Technology Inc. ED360/4	Brass	Copper	-30 ░C	105 ░C	Polyamide (PA) Nylon	M3	4.4 Lb-In	0.5 Nm	16 A	300 VDC	Through Hole	0.295 in	7.5 mm	Vertical with Board	1	4	22 AWG	12 AWG	Green	Screw - Rising Cage Clamp
On Shore Technology Inc. ED360/3	Brass	Copper	-30 ░C	105 ░C	Polyamide (PA) Nylon	M3	4.4 Lb-In	0.5 Nm	16 A	300 VDC	Through Hole	0.295 in	7.5 mm	Vertical with Board	1	3	22 AWG	12 AWG	Green	Screw - Rising Cage Clamp
On Shore Technology Inc. ED360/5	Brass	Copper	-30 ░C	105 ░C	Polyamide (PA) Nylon	M3	4.4 Lb-In	0.5 Nm	16 A	300 VDC	Through Hole	0.295 in	7.5 mm	Vertical with Board	1	5	22 AWG	12 AWG	Green	Screw - Rising Cage Clamp

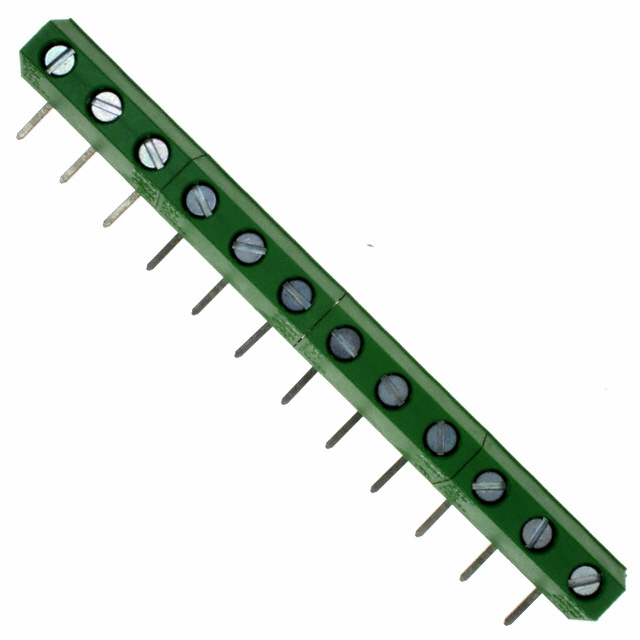

On Shore Technology Inc. ED360/12	Brass	Copper	-30 ░C	105 ░C	Polyamide (PA) Nylon	M3	4.4 Lb-In	0.5 Nm	16 A	300 VDC	Through Hole	0.295 in	7.5 mm	Vertical with Board	1	12	22 AWG	12 AWG	Green	Screw - Rising Cage Clamp
