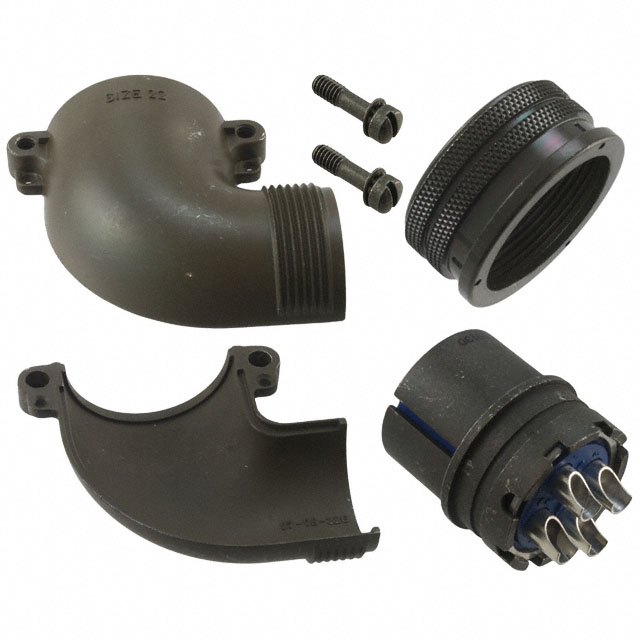

97-3108B22 Series
Manufacturer: Amphenol Industrial Operations
Beta
⌘K
CONN PLUG MALE 19P SOLDER CUP
| Part | Insert Material | Connector Type | Shell Size - Insert | Applications | Color | Mounting Type | Primary Material | Shell Material | Orientation | Number of Positions | Features | Shell Finish | Shielding | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish - Mating | Shell Size - Insert [Min] | Shell Size - Insert [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Industrial Operations | Diallyl Phthalate (DAP) | Male Pins Plug | 22-14 | Automotive Industrial | Olive Drab | Free Hanging (In-Line) Right Angle | Metal | Aluminum Alloy | X | 19 | Coupling Nut | Olive Drab Chromate over Cadmium | Unshielded | Copper Alloy | -55 °C | 125 °C | Silver | ||
Amphenol Industrial Operations | Diallyl Phthalate (DAP) | Male Pins Plug | Automotive Industrial | Olive Drab | Free Hanging (In-Line) Right Angle | Metal | Aluminum Alloy | W | 8 | Coupling Nut | Olive Drab Chromate over Cadmium | Unshielded | Copper Alloy | -55 °C | 125 °C | Silver | 22 | 23 | |
Amphenol Industrial Operations | Diallyl Phthalate (DAP) | Female Sockets Plug | Automotive Industrial | Olive Drab | Free Hanging (In-Line) Right Angle | Metal | Aluminum Alloy | W | 7 | Coupling Nut | Olive Drab Chromate over Cadmium | Unshielded | Copper Alloy | -55 °C | 125 °C | Silver | 22 | 28 | |
 Amphenol Industrial Operations | Diallyl Phthalate (DAP) | Female Sockets Plug | Automotive Industrial | Olive Drab | Free Hanging (In-Line) Right Angle | Metal | Aluminum Alloy | N | 4 | Coupling Nut Rotatable | Olive Drab Chromate over Cadmium | Unshielded | Copper Alloy | -55 °C | 125 °C | Silver | 22 | 22 | |
Amphenol Industrial Operations | Diallyl Phthalate (DAP) | Male Pins Plug | Automotive Industrial | Olive Drab | Free Hanging (In-Line) Right Angle | Metal | Aluminum Alloy | Y | 8 | Coupling Nut | Olive Drab Chromate over Cadmium | Unshielded | Copper Alloy | -55 °C | 125 °C | Silver | 22 | 23 | |
Amphenol Industrial Operations | Diallyl Phthalate (DAP) | Male Pins Plug | 22-5 | Automotive Industrial | Olive Drab | Free Hanging (In-Line) Right Angle | Metal | Aluminum Alloy | W | 6 | Coupling Nut | Olive Drab Chromate over Cadmium | Unshielded | Copper Alloy | -55 °C | 125 °C | Silver | ||
Amphenol Industrial Operations | Diallyl Phthalate (DAP) | Female Sockets Plug | Automotive Industrial | Olive Drab | Free Hanging (In-Line) Right Angle | Metal | Aluminum Alloy | X | 4 | Coupling Nut | Olive Drab Chromate over Cadmium | Unshielded | Copper Alloy | -55 °C | 125 °C | Silver | 22 | 22 | |
Amphenol Industrial Operations | Diallyl Phthalate (DAP) | Male Pins Plug | Automotive Industrial | Olive Drab | Free Hanging (In-Line) Right Angle | Metal | Aluminum Alloy | N | 8 | Coupling Nut | Olive Drab Chromate over Cadmium | Unshielded | Copper Alloy | -55 °C | 125 °C | Silver | 22 | 23 | |
Amphenol Industrial Operations | Diallyl Phthalate (DAP) | Female Sockets Plug | Automotive Industrial | Olive Drab | Free Hanging (In-Line) Right Angle | Metal | Aluminum Alloy | W | 7 | Coupling Nut | Olive Drab Chromate over Cadmium | Unshielded | Copper Alloy | -55 °C | 125 °C | Silver | 22 | 28 | |
Amphenol Industrial Operations | Diallyl Phthalate (DAP) | Female Sockets Plug | Automotive Industrial | Olive Drab | Free Hanging (In-Line) Right Angle | Metal | Aluminum Alloy | Z | 2 | Coupling Nut | Olive Drab Chromate over Cadmium | Unshielded | Copper Alloy | -55 °C | 125 °C | Silver | 22 | 8 |
