53105 Series

Manufacturer: LAPP

Catalog

CABLE GLND 9.02-12MM M20 S STEEL

Part	Color	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Thread Size	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Ingress Protection	Ingress Protection	Material	Thread Length	Thread Length	Type	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Max) [Max]	Outside Cable Diameter (Max) [Max]	Outside Cable Diameter (Max)	Outside Cable Diameter (Min) [Min]	Outside Cable Diameter (Min) [Min]	Outside Cable Diameter (Min)	Outside Cable Diameter (Min)
LAPP 53105302	Silver	12 mm	0.472 in	-20 ░C	100 °C	M20x1.5	9.02 mm	0.355 in	1 NEMA 2 4 6 NEMA 12	IP68 IP69	Stainless Steel	0.315 "	8 mm	Cable Gland
LAPP 53105200	Silver			-20 ░C	100 °C	M12x1.5	0.118 in		1 NEMA 2 4 6 NEMA 12	IP68 IP69	Stainless Steel	0.256 in	6.5 mm	Cable Gland	3 mm	4.5 mm	0.177 in
LAPP 53105230	Silver			-20 ░C	100 °C	M25x1.5	9.02 mm	0.355 in	1 NEMA 2 4 6 NEMA 12	IP68 IP69	Stainless Steel	0.315 "	8 mm	Cable Gland			0.493 in	12.52 mm
LAPP 53105303	Silver			-20 ░C	100 °C	M25x1.5			1 NEMA 2 4 6 NEMA 12	IP68 IP69	Stainless Steel	0.315 "	8 mm	Cable Gland			0.61 in	15.5 mm	11.5 mm	0.453 "
LAPP 53105110	Silver			-20 ░C	100 °C	M16x1.5			1 NEMA 2 4 6 NEMA 12	IP68 IP69	Stainless Steel	0.276 "	7 mm	Cable Gland		9.02 mm	0.355 in		6.5 mm	0.256 in
LAPP 53105301	Silver			-20 ░C	100 °C	M16x1.5			1 NEMA 2 4 6 NEMA 12	IP68 IP69	Stainless Steel	0.276 "	7 mm	Cable Gland			0.374 in	9.5 mm	6.5 mm	0.256 in
LAPP 53105210	Silver			-20 ░C	100 °C	M16x1.5	4.5 mm	0.177 in	1 NEMA 2 4 6 NEMA 12	IP68 IP69	Stainless Steel	0.276 "	7 mm	Cable Gland			0.276 in	7 mm

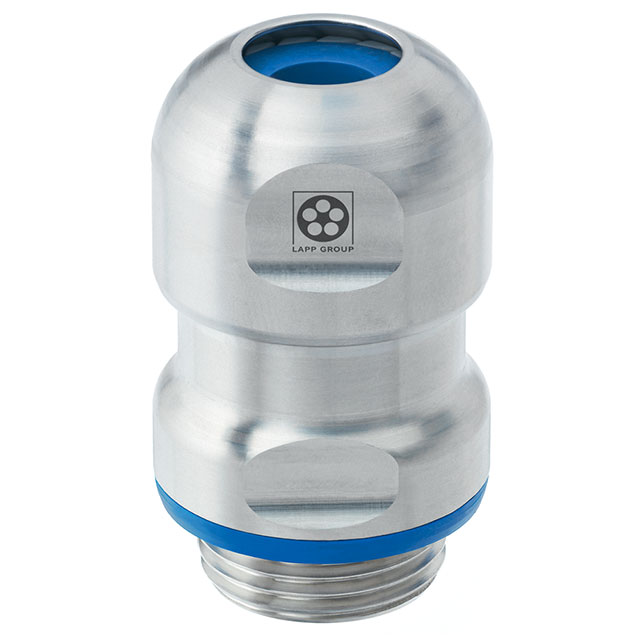

LAPP 53105300	Silver			-20 ░C	100 °C	M12x1.5	4.01 mm	0.158 in	1 NEMA 2 4 6 NEMA 12	IP68 IP69	Stainless Steel	0.256 in	6.5 mm	Cable Gland			0.236 in	6 mm
LAPP 53105220	Silver	10 mm	0.394 in	-20 ░C	100 °C	M20x1.5			1 NEMA 2 4 6 NEMA 12	IP68 IP69	Stainless Steel	0.315 "	8 mm	Cable Gland							7 mm	0.276 in
