MDM-1 Series

Catalog

MICRO 15 F SOLDER JACKS

Part	Number of Positions	Contact Finish	Termination	Connector Type	Connector Style	Flange Feature	Operating Temperature [Min]	Operating Temperature [Max]	Shell Material, Finish	Features	Number of Rows	Mounting Type	Contact Type	Dielectric Material	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Contact Material	Current Rating (Amps)	Type	Length	Length	Color	2nd Connector	1st Connector	Number of Rows [custom]	Primary Material	Shell Size, Connector Layout [y]	Shell Size, Connector Layout [x]
ITT Cannon, LLC MDM-15SSM2-F222
ITT Cannon, LLC MDM-100PCBR	100	Gold	Solder	Plug Male Pins	D-Type Micro-D	Housing/Shell (Unthreaded)	-55 C	125 °C	Aluminum Yellow Chromate Plated Cadmium	Shielded	8	Panel Mount Right Angle Through Hole	Signal	Liquid Crystal Polymer (LCP)	0.1	0.05	Copper Alloy	3 A
ITT Cannon, LLC MDM-15PH006B-F234	15	Gold																	D-Type Micro-D	91.44 cm	3 ft	Individual Multiple	Individual Wire Leads	Male Pins Receptacle
ITT Cannon, LLC MDM-15SBSM7	15	Gold	Solder	Receptacle Female Sockets	D-Type Micro-D	Mating Side Female Screwlock (2-56)	-55 C	125 °C	Aluminum Yellow Chromate Plated Cadmium	Shielded		Panel Mount Through Hole	Signal	Liquid Crystal Polymer (LCP)	0.1	0.05	Copper Alloy	3 A							2	Metal
ITT Cannon, LLC MDM-15SSM7-A174	15	Gold		Receptacle Female Sockets	D-Type Micro-D	Mating Side Female Screwlock (2-56)	-55 C	125 °C	Aluminum Electroless Nickel Plated	Shielded		Panel Mount	Signal	Liquid Crystal Polymer (LCP)			Copper Alloy	3 A							2		0.043 in	0.05 in
ITT Cannon, LLC MDM-100PSK-A172

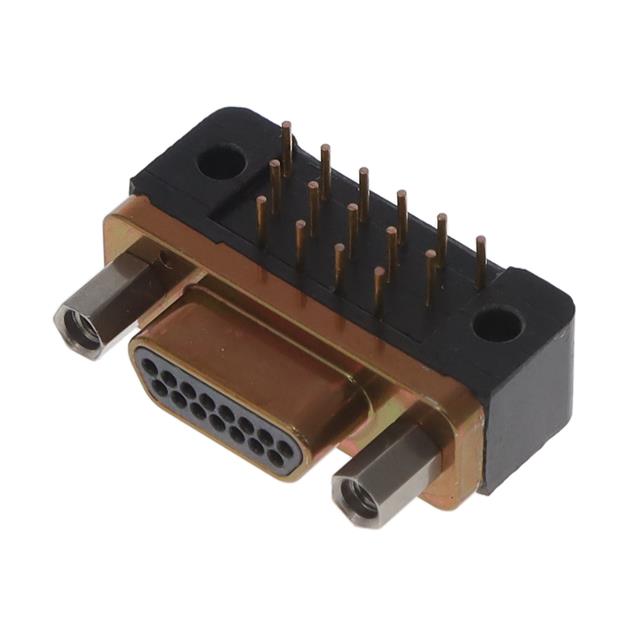

ITT Cannon, LLC MDM-15PCBRM7-F222	15	Gold	Solder	Plug Male Pins	D-Type Micro-D	Mating Side Female Screwlock (2-56)	-55 C	200 °C	Aluminum Yellow Chromate Plated Cadmium	Shielded		Panel Mount Through Hole	Signal	Liquid Crystal Polymer (LCP)	0.1	0.05	Copper Alloy	3 A							3

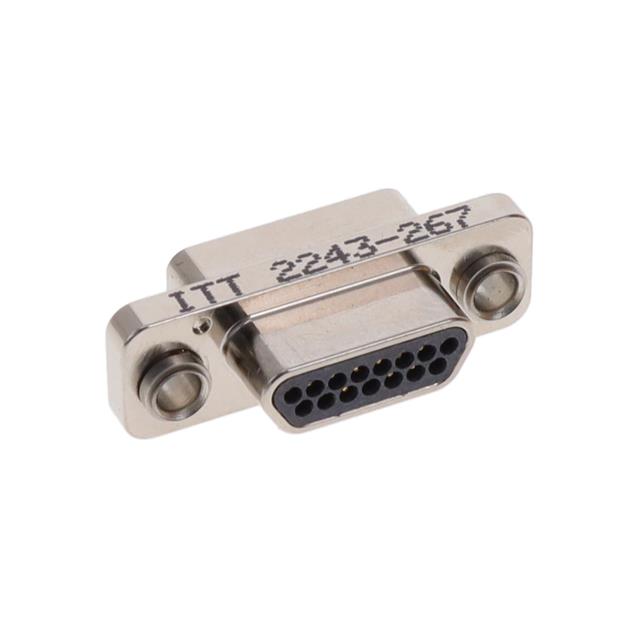

ITT Cannon, LLC MDM-15PSF-A174	15	Gold		Plug Male Pins	D-Type Micro-D	Housing/Shell (Unthreaded)	-55 C	125 °C	Aluminum Electroless Nickel Plated	Shielded		Panel Mount	Signal	Liquid Crystal Polymer (LCP)			Copper Alloy	3 A							2		0.043 in	0.05 in
ITT Cannon, LLC MDM-15SBRM7	15	Gold	Solder	Receptacle Female Sockets	D-Type Micro-D	Mating Side Female Screwlock (2-56)	-55 C	125 °C	Aluminum Yellow Chromate Plated Cadmium	Shielded		Panel Mount Right Angle Through Hole	Signal	Liquid Crystal Polymer (LCP)	0.1	0.05	Copper Alloy	3 A							2

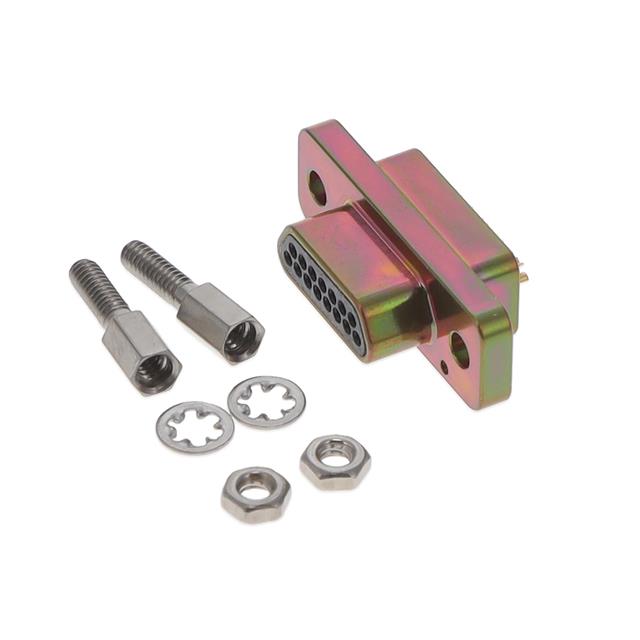

ITT Cannon, LLC MDM-15PSM7	15	Gold		Plug Male Pins	D-Type Micro-D	Mating Side Female Screwlock (2-56)	-55 C	125 °C	Aluminum Yellow Chromate Plated Cadmium	Shielded		Panel Mount	Signal	Liquid Crystal Polymer (LCP)			Copper Alloy	3 A							2		0.043 in	0.05 in
