2002 Series

Catalog

CONN TERMINAL BLOCK 3 POS PUSH-IN CAGE CLAMP T DIN RAIL 20A CAGE CLAMP® BOX

...

Part	Stripping Length [Min]	Stripping Length [Max]	Material - Insulation	Termination Style	Number of Levels	Current - UL	Voltage - IEC	Current - IEC	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Terminal - Width [y]	Voltage - UL	Type	Wire Gauge or Range - mm² [Max]	Wire Gauge or Range - mm² [Min]	Color	Number of Positions	For Use With/Related Products	Style

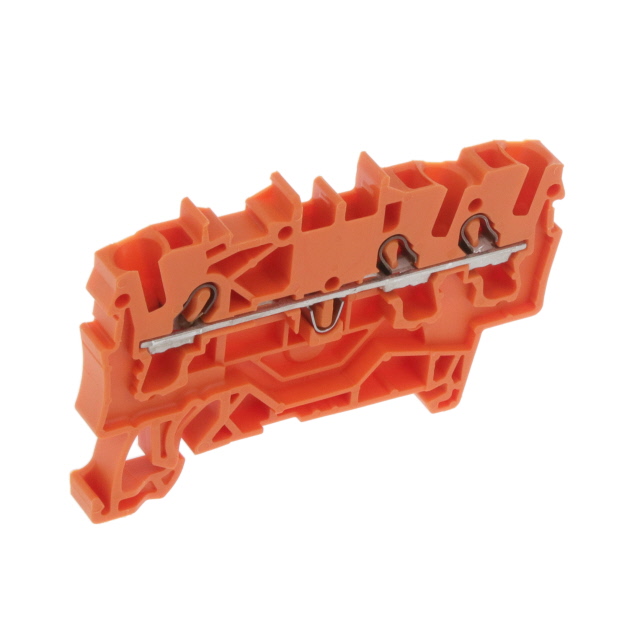

WAGO Corporation 2002-1302	10 mm	12 mm	Nylon 6/6 Polyamide (PA66)	Push In Spring	1	20 A	800 V	32 A	12 AWG	18 AWG	5.2 mm	600 V	Feed Through	4 mm²	0.75 mm²

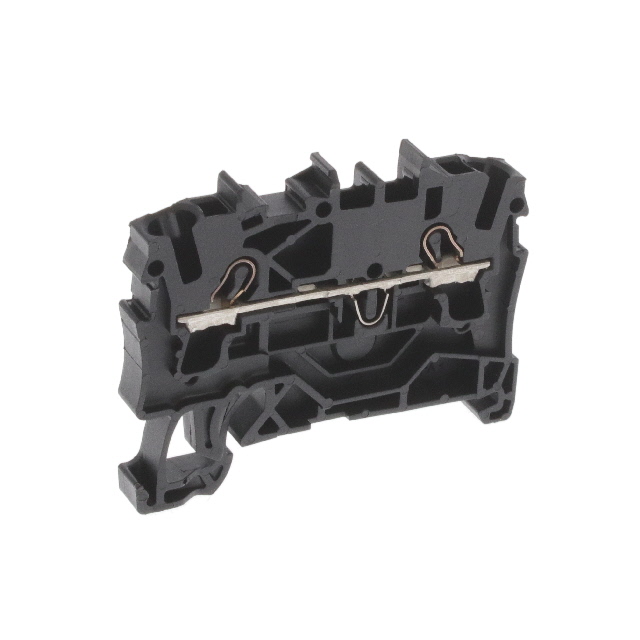

WAGO Corporation 2002-1205	10 mm	12 mm	Nylon 6/6 Polyamide (PA66)	Push In Spring	1	20 A	800 V	32 A	12 AWG	18 AWG	5.2 mm	600 V	Feed Through	4 mm²	0.75 mm²	Black	2

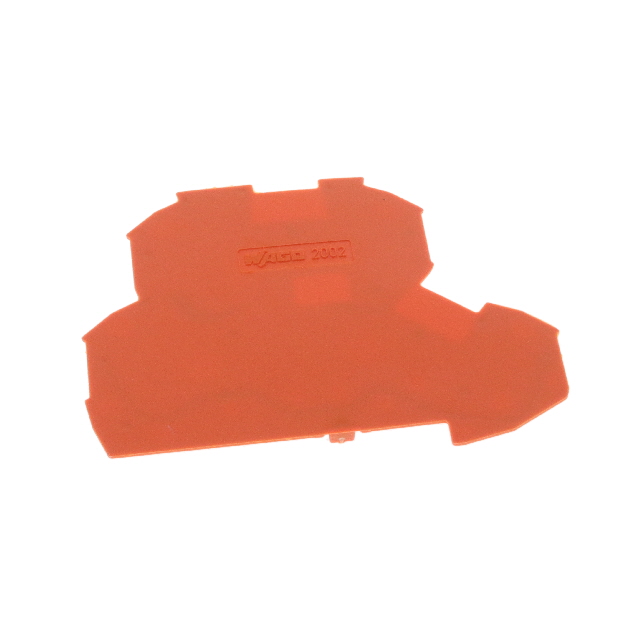

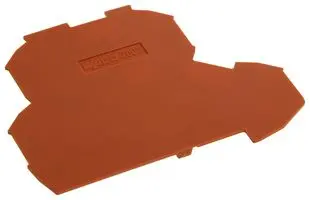

WAGO Corporation 2002-2292													End Plate					TOPJOB®S Series

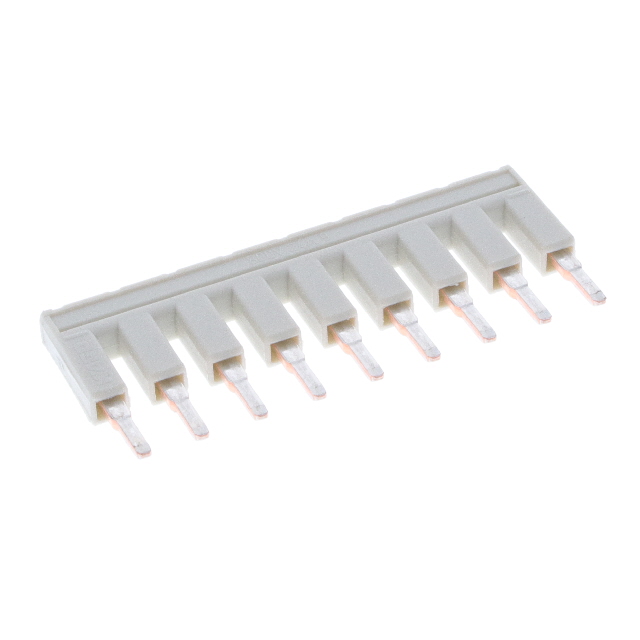

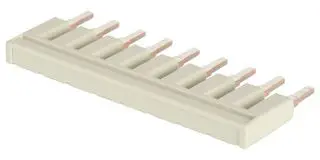

WAGO Corporation 2002-409													Terminal Block Cross Connection			Gray	9	TOPJOB®S Series	Flat Pins

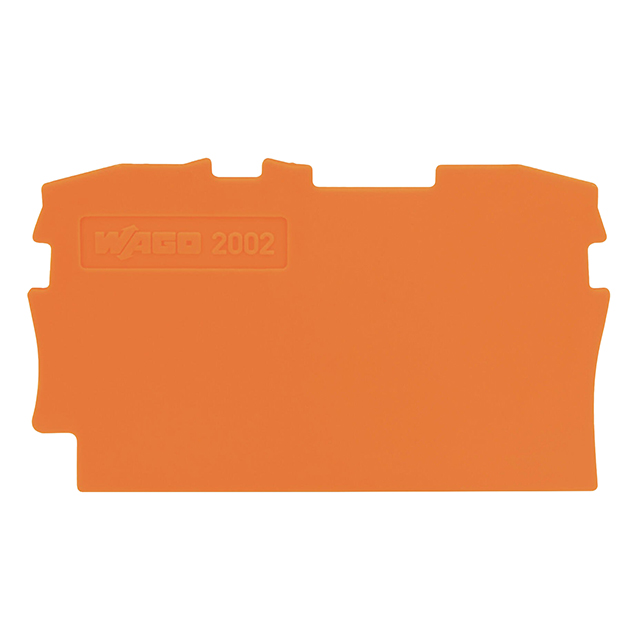

WAGO Corporation 2002-1292													End Plate					TOPJOB®S Series

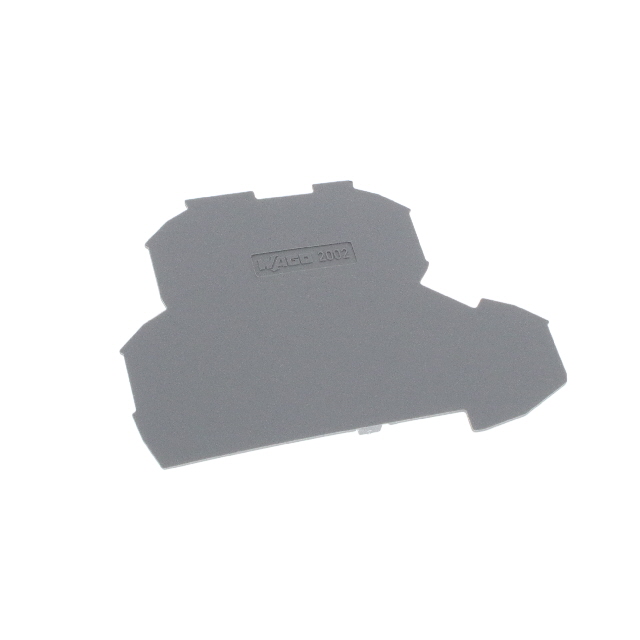

WAGO Corporation 2002-2291													End Plate			Gray		TOPJOB®S Series

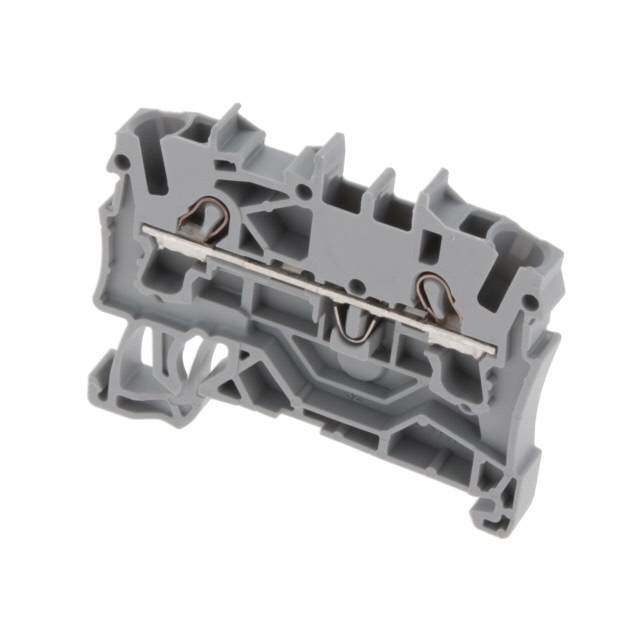

WAGO Corporation 2002-1201	10 mm	12 mm	Nylon 6/6 Polyamide (PA66)	Push In Spring	1	20 A	800 V	32 A	12 AWG	18 AWG	5.2 mm	600 V	Feed Through	4 mm²	1 mm²	Gray	2
WAGO Corporation 2002-404													Terminal Block Cross Connection			Gray	4	TOPJOB®S Series	Flat Pins

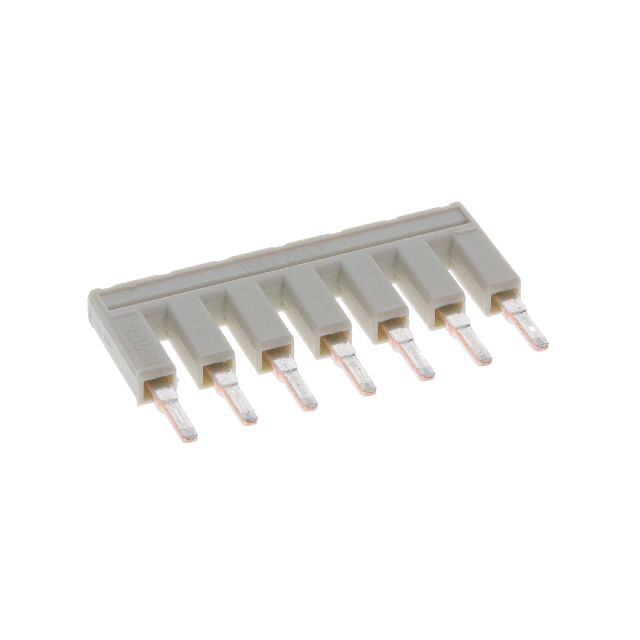

WAGO Corporation 2002-407													Terminal Block Cross Connection			Gray	7	TOPJOB®S Series	Flat Pins

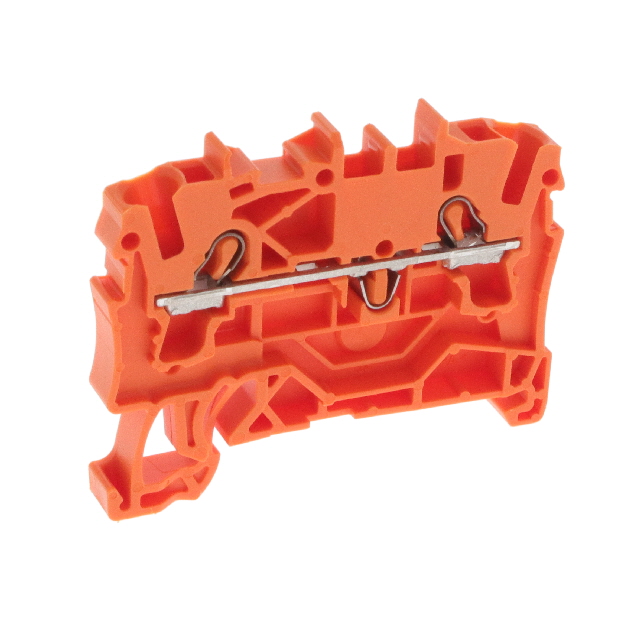

WAGO Corporation 2002-1202	10 mm	12 mm	Nylon 6/6 Polyamide (PA66)	Push In Spring	1	20 A	800 V	32 A	12 AWG	18 AWG	5.2 mm	600 V	Feed Through	4 mm²	0.75 mm²		2
