KG Series
Manufacturer: ZF Electronics
Beta
⌘K

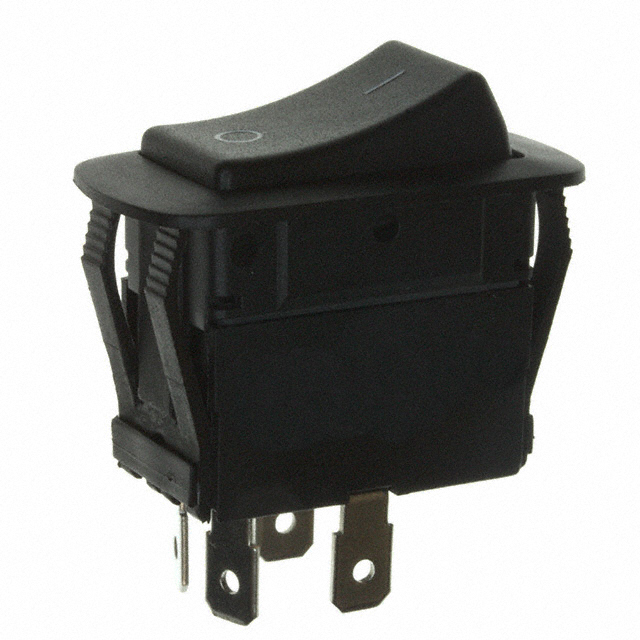

ROCKER SWITCHES DPST - ON-OFF 20A 125VAC
| Part | Mechanical Life | Electrical Life | Circuit | Actuator Type | Ingress Protection | Panel Cutout Dimensions [y] | Panel Cutout Dimensions [x] | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature [Max] | Operating Temperature [Min] | Current Rating (Amps) | Actuator Marking | Mounting Type | Color - Actuator/Cap | Termination Style | Switch Function |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ZF Electronics | 100000 Cycles | 6000 Cycles | DPST | Concave (Curved) | IP56 - Dust Protected Water Resistant | 21.2 mm | 36.6 mm | 14 V | 125 V | 85 °C | -20 ░C | 20 A 21 A | O - | Panel Mount Snap-In | Black | Quick Connect - 0.250" (6.3mm) | On-Off |
