9991 Series
Manufacturer: Belden Inc.
Beta
⌘K

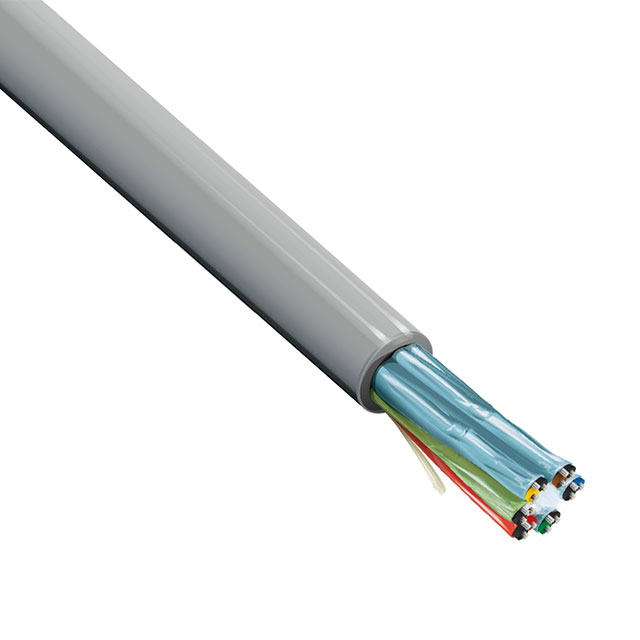

MULTI-PAIR 12COND 24AWG
| Part | Shield Material | Shield Coverage | Jacket Color | Conductor Strand [custom] | Conductor Strand [custom] | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Insulation | Usage | Length | Length | Operating Temperature [Max] | Operating Temperature [Min] | Jacket (Insulation) Material | Shield Type | Features | Conductor Material | Number of Conductors | Ratings | Cable Type | Wire Gauge | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Aluminum | 100 % | Chrome | 7 | 32 AWG | 0.035 in | 0.889 mm | 0.33 in | 8.38 mm | Polyethylene (PE) | Audio Control Instrumentation | 304.8 m | 1000 ft | 80 °C | -20 ░C | Poly-Vinyl Chloride (PVC) | Foil | Drain Wire | Copper Tinned | 12 | UL Style 2919 | Multi-Pair | 24 AWG | ||
 Belden Inc. | Aluminum | 100 % | Chrome | 7 | 32 AWG | 0.035 in | 0.889 mm | 0.33 in | 8.38 mm | Polyethylene (PE) | Audio Control Instrumentation | 80 °C | -20 ░C | Poly-Vinyl Chloride (PVC) | Foil | Drain Wire | Copper Tinned | 12 | UL Style 2919 | Multi-Pair | 24 AWG | 100 ft | 30.5 m |
