HGP.00.250 Series
Manufacturer: LEMO
Beta
⌘K

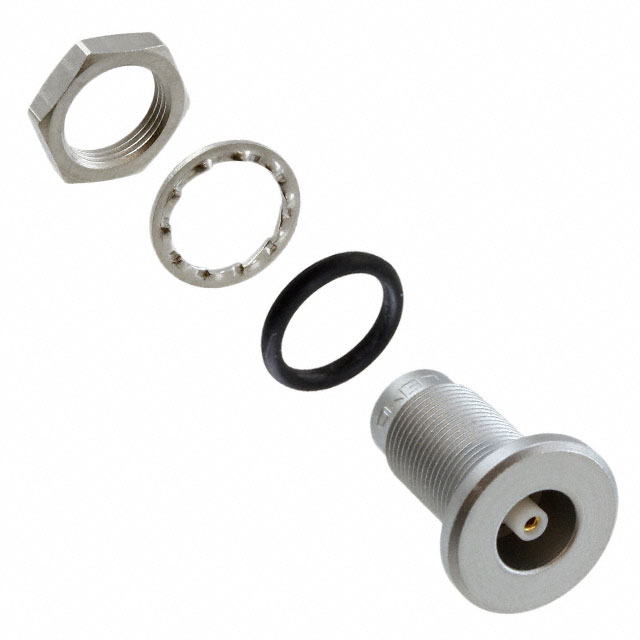

CONN NIMCAMAC RCPT STR 50 OHM
| Part | Mating Cycles | Operating Temperature [Min] | Operating Temperature [Max] | Body Finish | Includes | Center Contact Plating | Dielectric Material | Body Material | Voltage Rating | Housing Color | Center Contact Material | Connector Style | Mounting Type | Impedance | Contact Termination | Connector Type | Number of Ports | Shield Termination | Mounting Feature | Fastening Type | Features | Ingress Protection |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 LEMO | 5000 | -20 ░C | 100 °C | Nickel | 1 Connector 1 Lockwasher 1 Nut | Gold | Polytetrafluoroethylene (PTFE) | Brass | 700 VDC | Silver | Bronze | NIM-CAMAC CD/N 549 | Panel Mount | 50 Ohms | Solder Cup | Receptacle Female Socket | 1 | Solder | Bulkhead - Rear Side Nut | Push-Pull | Vacuumtight | IP68 - Dust Tight Waterproof |
 LEMO | 5000 | -20 ░C | 100 °C | Chrome | 1 Connector 1 Lockwasher 1 Nut | Gold | Polytetrafluoroethylene (PTFE) | Brass | 700 VDC | Silver | Bronze | NIM-CAMAC CD/N 549 | Panel Mount | 50 Ohms | Solder Cup | Receptacle Female Socket | 1 | Solder | Bulkhead - Rear Side Nut | Push-Pull | IP68 - Dust Tight Waterproof | |
 LEMO | 5000 | -20 ░C | 100 °C | Chrome | 1 Connector 1 Lockwasher 1 Nut | Gold | Polytetrafluoroethylene (PTFE) | Brass | 700 VDC | Silver | Bronze | NIM-CAMAC CD/N 549 | Panel Mount | 50 Ohms | Solder Cup | Receptacle Female Socket | 1 | Solder | Bulkhead - Rear Side Nut | Push-Pull | Vacuumtight | IP68 - Dust Tight Waterproof |
