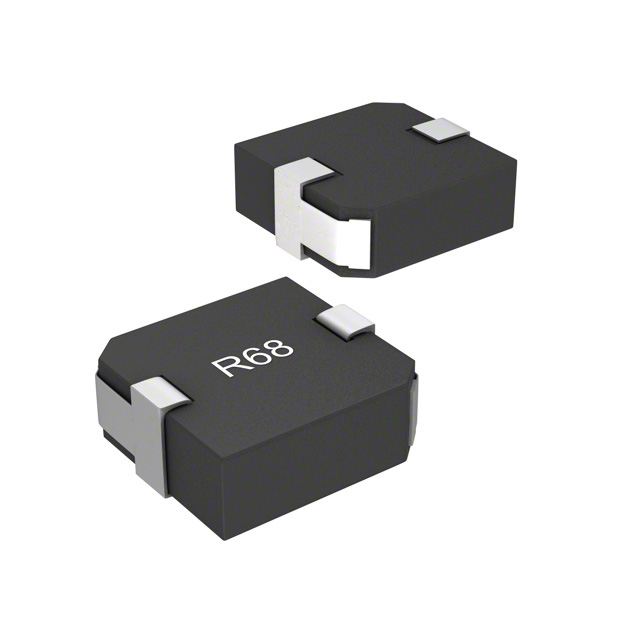

SRP1040 Series

Catalog

FIXED IND 470NH 26A 1.6 MOHM SMD

Part	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Tolerance	Size / Dimension	Size / Dimension	Current - Saturation (Isat)	Height - Seated (Max)	Height - Seated (Max) [Max] [z]	Inductance Frequency - Test	Shielding	Material - Core	DC Resistance (DCR)	Current Rating (Amps)	Inductance	Mounting Type	DC Resistance (DCR) [Max]
Bourns Inc. SRP1040-R47M	Nonstandard	-55 C	150 °C	20 %	0.413 " 0.465 "	10.5 mm 11.8 mm	38 A	4.2 mm	0.165 "	100 kHz	Shielded	Iron	1.6 mOhm	26 A	470 nH	Surface Mount
Bourns Inc. SRP1040-R39M	Nonstandard	-55 C	150 °C	20 %	0.413 " 0.465 "	10.5 mm 11.8 mm	32 A	4.2 mm	0.165 "	100 kHz	Shielded	Iron	1.4 mOhm	24 A	390 nH	Surface Mount
Bourns Inc. SRP1040-150M	Nonstandard	-55 C	150 °C	20 %	0.413 " 0.465 "	10.5 mm 11.8 mm	7 A	4.2 mm	0.165 "	100 kHz	Shielded	Iron		5 A	15 µH	Surface Mount	57 mOhm
Bourns Inc. SRP1040-R75M	Nonstandard	-55 C	150 °C	20 %	0.413 " 0.465 "	10.5 mm 11.8 mm	28 A	4.2 mm	0.165 "	100 kHz	Shielded	Iron		22 A	750 nH	Surface Mount	2.5 mOhm
Bourns Inc. SRP1040-R36M	Nonstandard	-55 C	150 °C	20 %	0.413 " 0.465 "	10.5 mm 11.8 mm	40 A	4.2 mm	0.165 "	100 kHz	Shielded	Iron	1.4 mOhm	28 A	360 nH	Surface Mount
Bourns Inc. SRP1040-R80M	Nonstandard	-55 C	150 °C	20 %	0.413 " 0.465 "	10.5 mm 11.8 mm	30 A	4.2 mm	0.165 "	100 kHz	Shielded	Iron	3 mOhm	21 A	800 nH	Surface Mount
Bourns Inc. SRP1040-2R5M	Nonstandard	-55 C	150 °C	20 %	0.413 " 0.465 "	10.5 mm 11.8 mm	14 A	4.2 mm	0.165 "	100 kHz	Shielded	Iron		11.5 A	2.5 µH	Surface Mount	8.7 mOhm
Bourns Inc. SRP1040-220M	Nonstandard	-55 C	150 °C	20 %	0.413 " 0.465 "	10.5 mm 11.8 mm	6 A	4.2 mm	0.165 "	100 kHz	Shielded	Iron	62 mOhm	3.5 A	22 µH	Surface Mount
Bourns Inc. SRP1040-R56M	Nonstandard	-55 C	150 °C	20 %	0.413 " 0.465 "	10.5 mm 11.8 mm	36 A	4.2 mm	0.165 "	100 kHz	Shielded	Iron		25 A	560 nH	Surface Mount	1.9 mOhm
