FUSE 5x20 M 4A/250V (P)
Description
AI
5x20mm meduim- acting glass body fuse designed to UL specification.
Beta
⌘K
FUSE 5x20 M 4A/250V (P)
FUSE 5x20 M 4A/250V (P)
| Part | DC Cold Resistance | Package / Case [y] | Package / Case | Package / Case [x] | Response Time | Voltage Rating - AC | Current Rating (Amps) | Fuse Type | Size / Dimension [x] | Size / Dimension [diameter] | Size / Dimension [diameter] | Size / Dimension [x] | Approval Agency | Breaking Capacity @ Rated Voltage | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Melting I²t |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

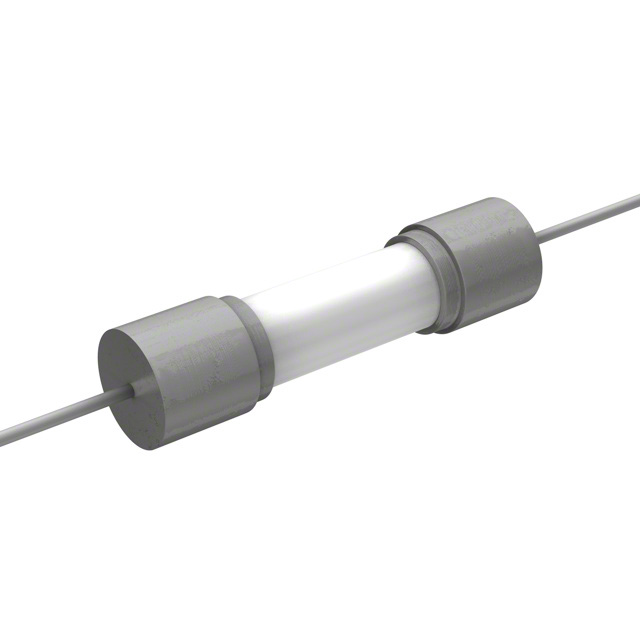

 LITTELFUSE | 0.0304 Ohms | 20 mm | Axial | 5 mm | Medium Blow | 250 V | 4 A | Cartridge Ceramic | 22.5 mm | 5.8 mm | 0.228 " | 0.886 in | CE CSA K-Mark PSE UL | 200 A | Through Hole | -55 C | 125 °C | 10.37 |
LITTELFUSE | 20 mm | 5 mm | Medium Blow | 250 V | 4 A | Cartridge Ceramic | 20 mm | 5.2 mm | 0.205 in | 0.787 " | CE CSA K-Mark PSE UL | 200 A | Requires Holder | -55 C | 125 °C | 10.37 | ||
 LITTELFUSE | 20 mm | 5 mm | Medium Blow | 250 V | 4 A | Cartridge Ceramic | 20 mm | 5.2 mm | 0.205 in | 0.787 " | CE CSA K-Mark PSE UL | 200 A | Requires Holder | -55 C | 125 °C | 10.37 |
