857-016 Series

Manufacturer: EDAC Inc.

Catalog

Catalog

CONN EDGE DUAL FMALE 32POS 0.156

...

Part	Material - Insulation	Termination Rows	Mounting Type	Color	Contact Finish	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]	Termination	Number of Positions/Bay/Row	Contact Material	Card Type	Read Out	Number of Rows [custom]	Contact Type	Operating Temperature [Max]	Operating Temperature [Min]	Gender	Pitch	Pitch	Contact Finish Thickness	Contact Finish Thickness	Card Thickness [Max]	Card Thickness [Min]	Termination Rows [custom]	Number of Positions	Features	Number of Rows
EDAC Inc. 857-016-501-102	Polyphenylene Sulfide (PPS)	1	Through Hole	Black	Gold	Flush Mount Top Opening Unthreaded	3.25 mm	0.128 "	Solder Eyelet(s)	16	Copper Alloy	Non Specified - Dual Edge	Dual	2	Semi Bellows	125 °C	-40 C	Female	3.96 mm	0.156 in	0.25 Ám	10 Áin	0.07 in 1.78 mm	0.054 in 1.37 mm

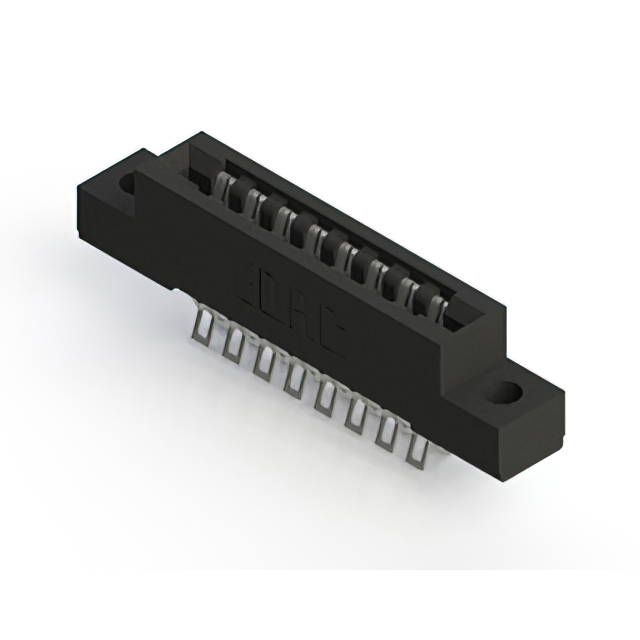

EDAC Inc. 857-016-455-202	Polyphenylene Sulfide (PPS)		Board Edge Straddle Mount	Black	Tin	Flush Mount Top Opening Unthreaded	3.25 mm	0.128 "	Solder	8	Copper Alloy	Non Specified - Dual Edge	Dual	2	Semi Bellows	125 °C	-40 C	Female	3.96 mm	0.156 in			0.07 in 1.78 mm	0.054 in 1.37 mm	2	16	Card Extender
EDAC Inc. 857-016-458-201	Polyphenylene Sulfide (PPS)		Right Angle Through Hole	Black	Tin				Solder	8	Copper Alloy	Non Specified - Dual Edge	Single	2	Semi Bellows	125 °C	-40 C	Female	3.96 mm	0.156 in			0.07 in 1.78 mm	0.054 in 1.37 mm	2	16

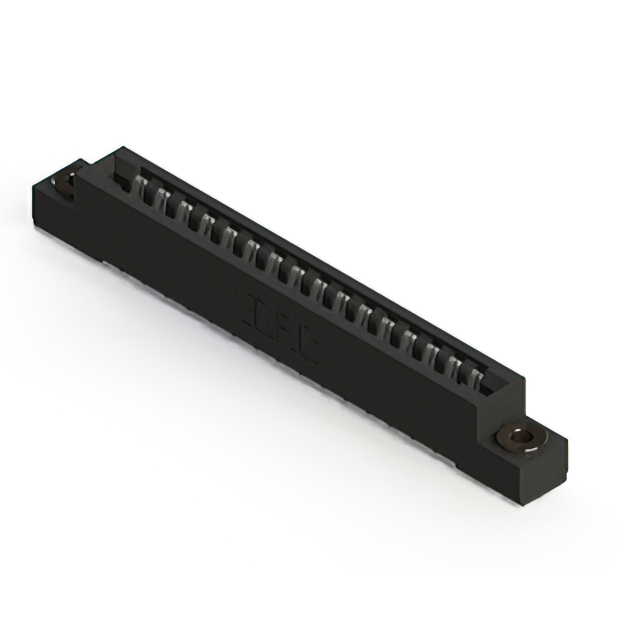

EDAC Inc. 857-016-459-103	Polyphenylene Sulfide (PPS)	1	Right Angle Through Hole	Black	Tin	Floating Bobbin Flush Mount	2.95 mm	0.116 "	Solder	16	Copper Alloy	Non Specified - Single Edge	Single		Semi Bellows	125 °C	-40 C	Female	3.96 mm	0.156 in			0.07 in 1.78 mm	0.054 in 1.37 mm		16		1

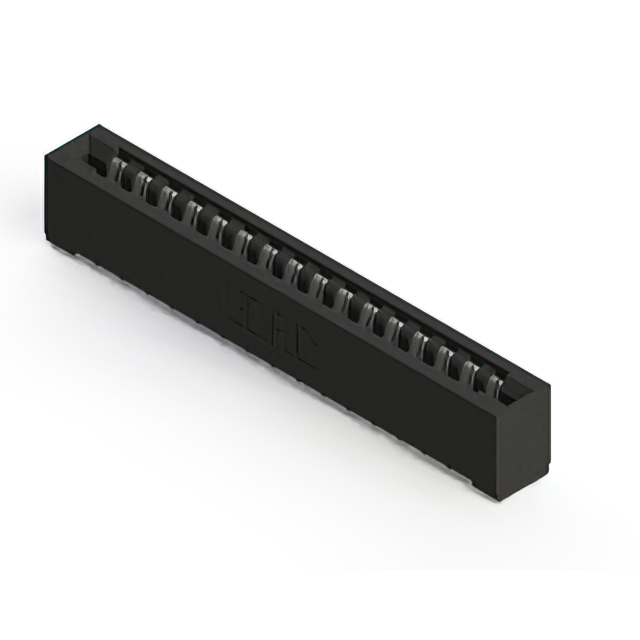

EDAC Inc. 857-016-459-101	Polyphenylene Sulfide (PPS)	1	Right Angle Through Hole	Black	Tin				Solder	16	Copper Alloy	Non Specified - Single Edge	Single		Semi Bellows	125 °C	-40 C	Female	3.96 mm	0.156 in			0.07 in 1.78 mm	0.054 in 1.37 mm		16		1

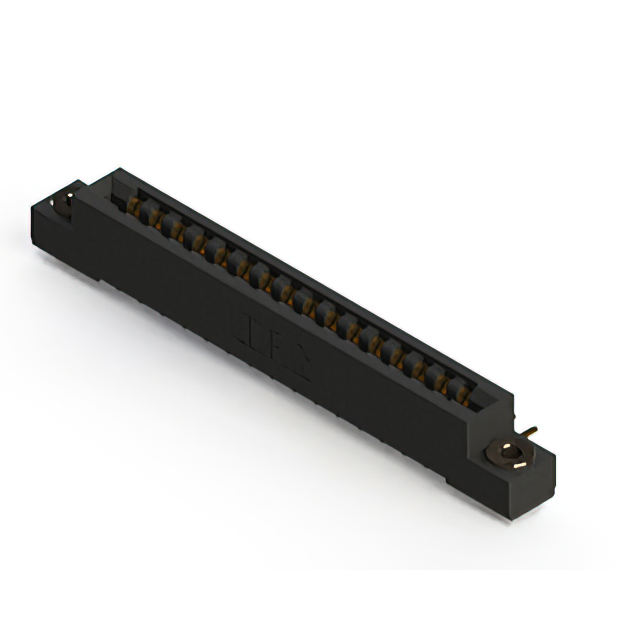

EDAC Inc. 857-016-557-103	Polyphenylene Sulfide (PPS)	1	Right Angle Through Hole	Black	Gold	Floating Bobbin Flush Mount	2.95 mm	0.116 "	Solder	16	Copper Alloy	Non Specified - Dual Edge	Dual	2	Semi Bellows	125 °C	-40 C	Female	3.96 mm	0.156 in	0.25 Ám	10 Áin	0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 857-016-453-102	Polyphenylene Sulfide (PPS)	1	Right Angle Through Hole	Black	Tin	Flush Mount Top Opening Unthreaded	3.25 mm	0.128 "	Solder	16	Copper Alloy	Non Specified - Dual Edge	Dual	2	Semi Bellows	125 °C	-40 C	Female	3.96 mm	0.156 in			0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 857-016-459-108	Polyphenylene Sulfide (PPS)	1	Right Angle Through Hole	Black	Tin	4-40 Flush Mount Threaded Insert Top Opening			Solder	16	Copper Alloy	Non Specified - Single Edge	Single		Semi Bellows	125 °C	-40 C	Female	3.96 mm	0.156 in			0.07 in 1.78 mm	0.054 in 1.37 mm		16		1

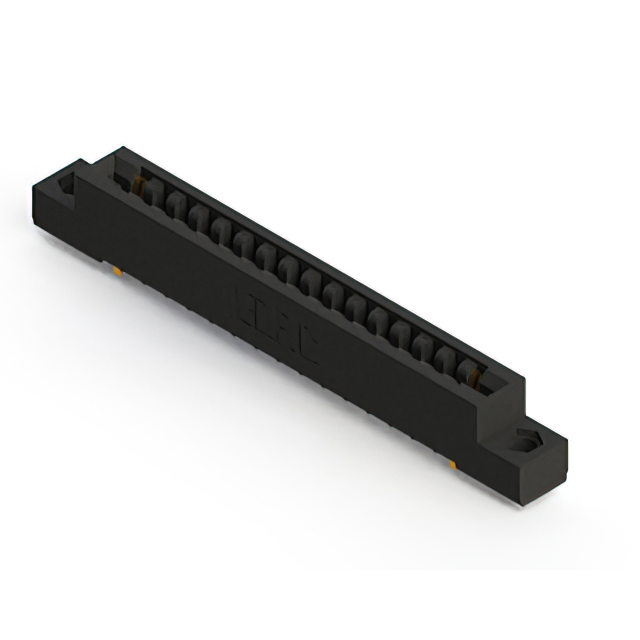

EDAC Inc. 857-016-559-104	Polyphenylene Sulfide (PPS)	1	Right Angle Through Hole	Black	Gold	Flush Mount Top Opening Unthreaded	3.96 mm	0.156 "	Solder	16	Copper Alloy	Non Specified - Single Edge	Single		Semi Bellows	125 °C	-40 C	Female	3.96 mm	0.156 in	0.25 Ám	10 Áin	0.07 in 1.78 mm	0.054 in 1.37 mm		16		1

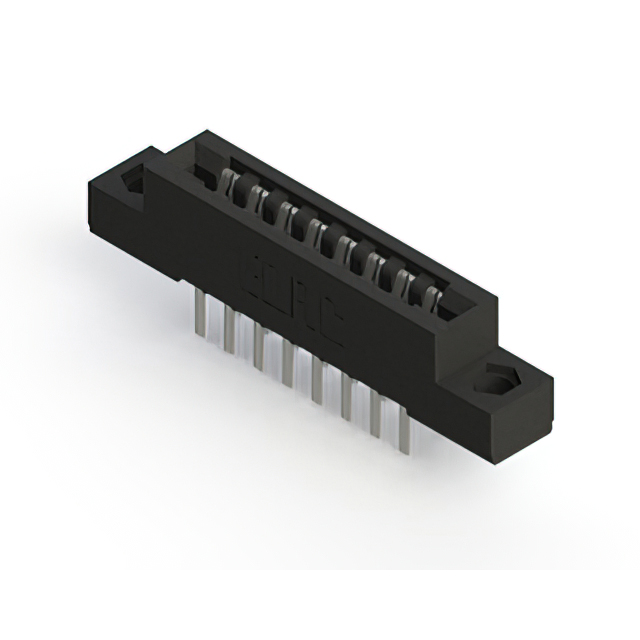

EDAC Inc. 857-016-422-204	Polyphenylene Sulfide (PPS)		Through Hole	Black	Tin	Flush Mount Top Opening Unthreaded	3.96 mm	0.156 "	Solder	8	Copper Alloy	Non Specified - Dual Edge	Dual	2	Semi Bellows	125 °C	-40 C	Female	3.96 mm	0.156 in			0.07 in 1.78 mm	0.054 in 1.37 mm	2	16
