053254 Series

Manufacturer: Molex

Catalog

CONN HEADER R/A 15POS 2MM

Part	Number of Positions Loaded	Shrouding	Applications	Style	Contact Type	Fastening Type	Pitch - Mating [x]	Pitch - Mating [x]	Number of Positions	Insulation Material	Contact Length - Mating	Contact Length - Mating	Contact Shape	Contact Finish - Post	Insulation Height [z]	Insulation Height [z]	Contact Length - Post	Contact Length - Post	Mounting Type	Material Flammability Rating	Connector Type	Insulation Color	Contact Material	Number of Rows	Termination
Molex 0532541510	All	Shrouded - 3 Wall	Automotive General Purpose	Board to Cable/Wire	Male Pin	Detent Lock	0.079 in	2 mm	15	Polyamide (PA66) Nylon 6/6	0.13 in	3.3 mm	Square	Tin	0.165 in	4.2 mm	3.5 mm	0.138 in	Through Hole Right Angle	UL94 V-0	Header	Natural	Brass	1	Kinked Pin Solder
Molex 0532541170	All	Shrouded - 3 Wall	Automotive General Purpose	Board to Cable/Wire	Male Pin	Detent Lock	0.079 in	2 mm	11		0.13 in	3.3 mm	Square	Tin	0.165 in	4.2 mm	3.5 mm	0.138 in	Through Hole Right Angle	UL94 V-0	Header		Brass	1	Kinked Pin Solder
Molex 0532541010	All	Shrouded - 3 Wall	Automotive General Purpose	Board to Cable/Wire	Male Pin	Detent Lock	0.079 in	2 mm	10	Polyamide (PA66) Nylon 6/6	0.13 in	3.3 mm	Square	Tin	0.165 in	4.2 mm	3.5 mm	0.138 in	Through Hole Right Angle	UL94 V-0	Header	Natural	Brass	1	Kinked Pin Solder
Molex 0532540710	All	Shrouded - 3 Wall	Automotive General Purpose	Board to Cable/Wire	Male Pin	Detent Lock	0.079 in	2 mm	7	Polyamide (PA66) Nylon 6/6	0.13 in	3.3 mm	Square	Tin	0.165 in	4.2 mm	3.5 mm	0.138 in	Through Hole Right Angle	UL94 V-0	Header	Natural	Brass	1	Kinked Pin Solder

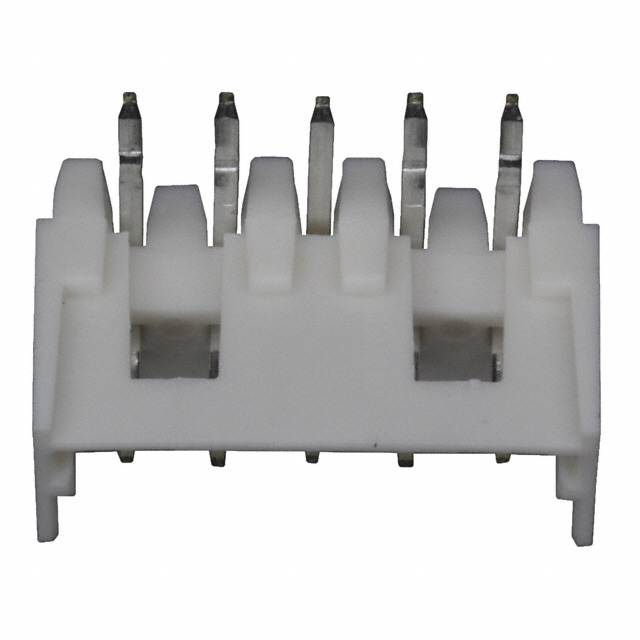

Molex 0532540570	All	Shrouded - 3 Wall	Automotive General Purpose	Board to Cable/Wire	Male Pin	Detent Lock	0.079 in	2 mm			0.13 in	3.3 mm	Square	Tin	0.165 in	4.2 mm	3.5 mm	0.138 in	Through Hole Right Angle	UL94 V-0	Header		Brass	1	Kinked Pin Solder
Molex 0532541110	All	Shrouded - 3 Wall	Automotive General Purpose	Board to Cable/Wire	Male Pin	Detent Lock	0.079 in	2 mm	11	Polyamide (PA66) Nylon 6/6	0.13 in	3.3 mm	Square	Tin	0.165 in	4.2 mm	3.5 mm	0.138 in	Through Hole Right Angle	UL94 V-0	Header	Natural	Brass	1	Kinked Pin Solder
Molex 0532540210	All	Shrouded - 3 Wall	Automotive General Purpose	Board to Cable/Wire	Male Pin	Detent Lock	0.079 in	2 mm	2	Polyamide (PA66) Nylon 6/6	0.13 in	3.3 mm	Square	Tin	0.165 in	4.2 mm	3.5 mm	0.138 in	Through Hole Right Angle	UL94 V-0	Header	Natural	Brass	1	Solder
Molex 0532540410	All	Shrouded - 3 Wall	Automotive General Purpose	Board to Cable/Wire	Male Pin	Detent Lock	0.079 in	2 mm	4	Polyamide (PA66) Nylon 6/6	0.13 in	3.3 mm	Square	Tin	0.165 in	4.2 mm	3.5 mm	0.138 in	Through Hole Right Angle	UL94 V-0	Header	Natural	Brass	1	Kinked Pin Solder
Molex 0532540610	All	Shrouded - 3 Wall	Automotive General Purpose	Board to Cable/Wire	Male Pin	Detent Lock	0.079 in	2 mm	6	Polyamide (PA66) Nylon 6/6	0.13 in	3.3 mm	Square	Tin	0.165 in	4.2 mm	3.5 mm	0.138 in	Through Hole Right Angle	UL94 V-0	Header	Natural	Brass	1	Kinked Pin Solder
Molex 0532541370	All	Shrouded - 3 Wall	Automotive General Purpose	Board to Cable/Wire	Male Pin	Detent Lock	0.079 in	2 mm	13		0.13 in	3.3 mm	Square	Tin	0.165 in	4.2 mm	3.5 mm	0.138 in	Through Hole Right Angle	UL94 V-0	Header		Brass	1	Kinked Pin Solder
