2823373 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

7P,2MM,SHRD HDR,SRVT,2.8,SN,TB

Part	Insulation Color	Mounting Type	Contact Length - Post [x]	Contact Length - Post [x]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Positions Loaded	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Height [custom]	Insulation Height [custom]	Shrouding	Contact Finish - Post	Number of Rows	Termination	Pitch - Mating [x]	Pitch - Mating [x]	Contact Shape	Voltage Rating	Number of Positions	Insulation Material	Contact Length - Mating	Contact Length - Mating	Contact Material	Material Flammability Rating	Fastening Type	Current Rating (Amps)	Connector Type	Contact Type

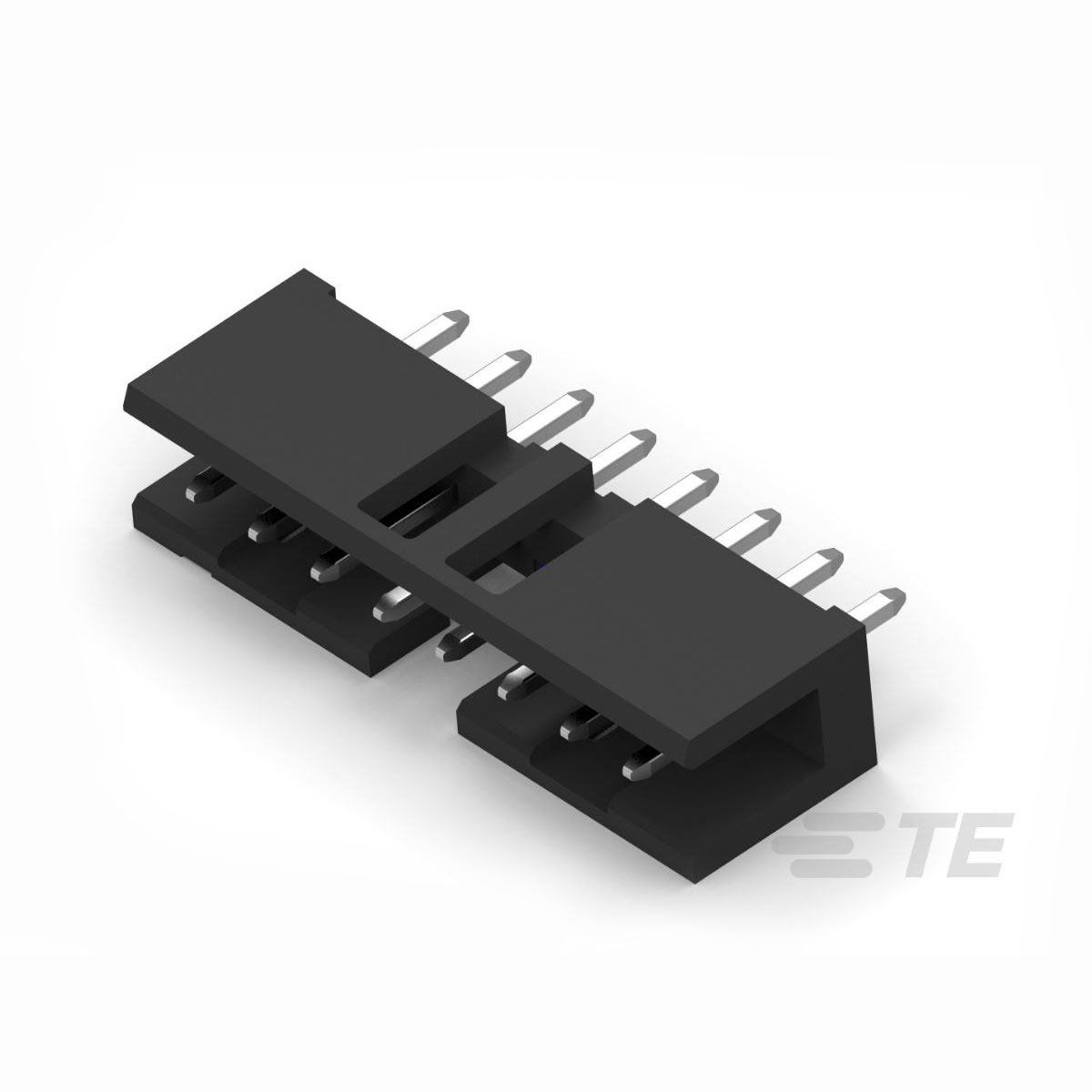

TE Connectivity Raychem Cable Protection 2823373-7	Black	Through Hole	0.11 in	2.8 mm	118.1 µin	3 µm	0.3 µm	12 µin	All	-40 °C	105 ░C	5.51 mm	0.217 in	Shrouded - 2 Wall	Tin	1	Solder	0.079 in	2 mm	Square	125 VAC	7	Thermoplastic	4 mm	0.157 in	Phosphor Bronze	UL94 V-0	Detent Lock	2 A	Header	Male Pin
TE Connectivity Raychem Cable Protection 1-2823373-0	Black	Through Hole	0.11 in	2.8 mm	118.1 µin	3 µm	0.3 µm	12 µin	All	-40 °C	105 ░C	5.51 mm	0.217 in	Shrouded - 2 Wall	Tin	1	Solder	0.079 in	2 mm	Square	125 VAC	10	Thermoplastic	4 mm	0.157 in	Phosphor Bronze	UL94 V-0	Detent Lock	2 A	Header	Male Pin
TE Connectivity Raychem Cable Protection 2823373-6	Black	Through Hole	0.11 in	2.8 mm	118.1 µin	3 µm	0.3 µm	12 µin	All	-40 °C	105 ░C	5.51 mm	0.217 in	Shrouded - 2 Wall	Tin	1	Solder	0.079 in	2 mm	Square	125 VAC	6	Thermoplastic	4 mm	0.157 in	Phosphor Bronze	UL94 V-0	Detent Lock	2 A	Header	Male Pin
TE Connectivity Raychem Cable Protection 2823373-8	Black	Through Hole	0.11 in	2.8 mm	118.1 µin	3 µm	0.3 µm	12 µin	All	-40 °C	105 ░C	5.51 mm	0.217 in	Shrouded - 2 Wall	Tin	1	Solder	0.079 in	2 mm	Square	125 VAC	8	Thermoplastic	4 mm	0.157 in	Phosphor Bronze	UL94 V-0	Detent Lock	2 A	Header	Male Pin
TE Connectivity Raychem Cable Protection 2823373-3	Black	Through Hole	0.11 in	2.8 mm	118.1 µin	3 µm	0.3 µm	12 µin	All	-40 °C	105 ░C	5.51 mm	0.217 in	Shrouded - 2 Wall	Tin	1	Solder	0.079 in	2 mm	Square	125 VAC		Thermoplastic	4 mm	0.157 in	Phosphor Bronze	UL94 V-0	Detent Lock	2 A	Header	Male Pin

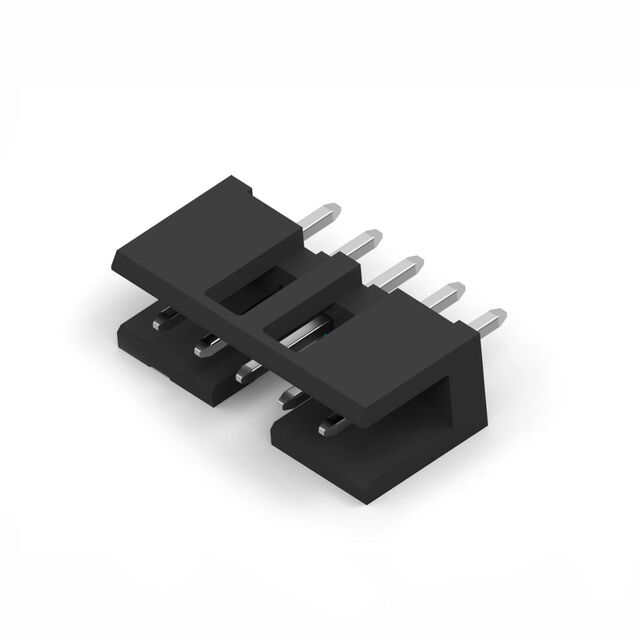

TE Connectivity Raychem Cable Protection 2823373-5	Black	Through Hole	0.11 in	2.8 mm	118.1 µin	3 µm	0.3 µm	12 µin	All	-40 °C	105 ░C	5.51 mm	0.217 in	Shrouded - 2 Wall	Tin	1	Solder	0.079 in	2 mm	Square	125 VAC		Thermoplastic	4 mm	0.157 in	Phosphor Bronze	UL94 V-0	Detent Lock	2 A	Header	Male Pin

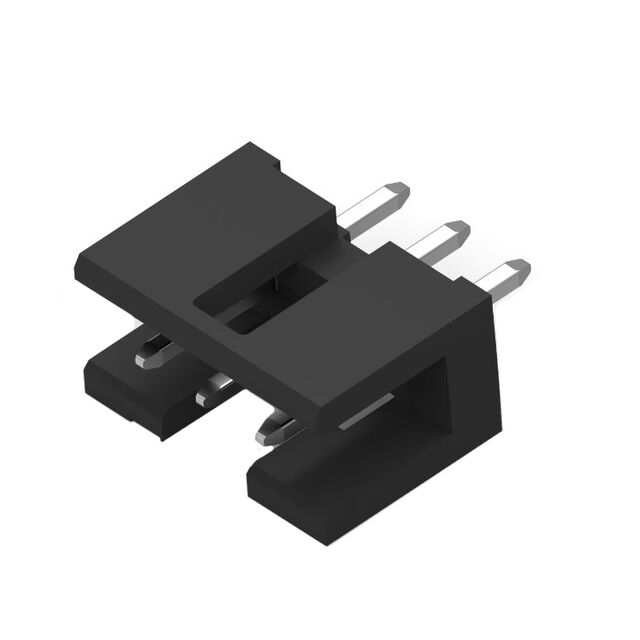

TE Connectivity Raychem Cable Protection 2823373-4	Black	Through Hole	0.11 in	2.8 mm	118.1 µin	3 µm	0.3 µm	12 µin	All	-40 °C	105 ░C	5.51 mm	0.217 in	Shrouded - 2 Wall	Tin	1	Solder	0.079 in	2 mm	Square	125 VAC	4	Thermoplastic	4 mm	0.157 in	Phosphor Bronze	UL94 V-0	Detent Lock	2 A	Header	Male Pin
TE Connectivity Raychem Cable Protection 1-2823373-2	Black	Through Hole	0.11 in	2.8 mm	118.1 µin	3 µm	0.3 µm	12 µin	All	-40 °C	105 ░C	5.51 mm	0.217 in	Shrouded - 2 Wall	Tin	1	Solder	0.079 in	2 mm	Square	125 VAC	12	Thermoplastic	4 mm	0.157 in	Phosphor Bronze	UL94 V-0	Detent Lock	2 A	Header	Male Pin

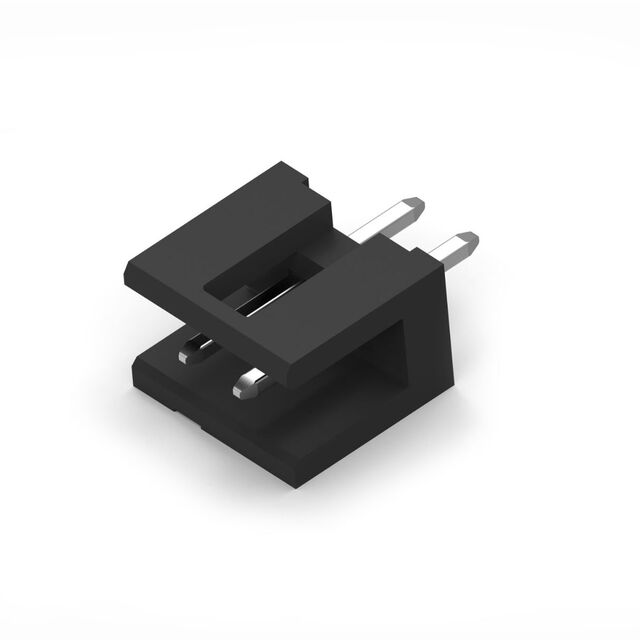

TE Connectivity Raychem Cable Protection 2823373-2	Black	Through Hole	0.11 in	2.8 mm	118.1 µin	3 µm	0.3 µm	12 µin	All	-40 °C	105 ░C	5.51 mm	0.217 in	Shrouded - 2 Wall	Tin	1	Solder	0.079 in	2 mm	Square	125 VAC	2	Thermoplastic	4 mm	0.157 in	Phosphor Bronze	UL94 V-0	Detent Lock	2 A	Header	Male Pin
