FAM65HR51XS1 Series

Power Integrated Module (PIM) Boost Converter Stage for Multiphase and Semi-Bridgeless PFC

Catalog

Power Integrated Module (PIM) Boost Converter Stage for Multiphase and Semi-Bridgeless PFC

Part	Configuration	Current	Voltage	Type	Package / Case	Mounting Type
ON Semiconductor FAM65CR51DZ2	2 Independent	33 A	650 V	MOSFET	12-SSIP Exposed Pad Formed Leads	Through Hole

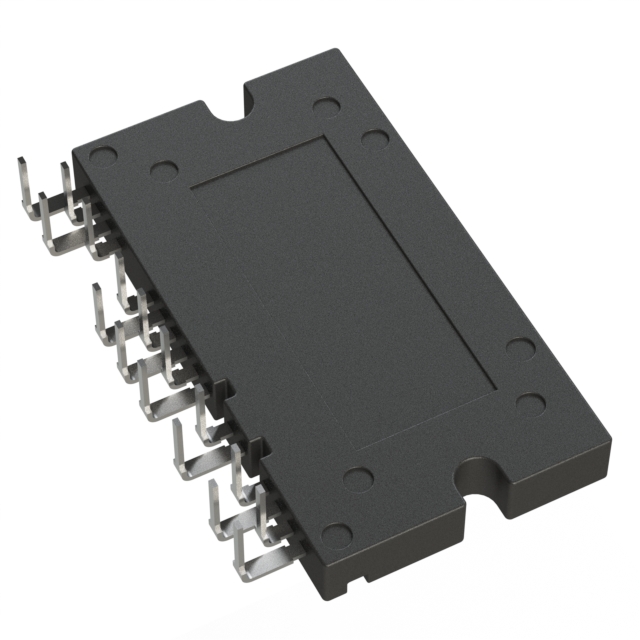

ON Semiconductor FAM65HR51XS2	H-Bridge Inverter	64 A	650 V	MOSFET	16-SIP Exposed Pad Formed Leads	Through Hole

Catalog

Power Integrated Module (PIM) Boost Converter Stage for Multiphase and Semi-Bridgeless PFC

Key Features

• SIP or DIP H−Bridge Power Module for On−board Charger (OBC) in EV−PHEV

• High Voltage Snubber Capacitor for Low Noise at High Voltage Battery

• 5 kV/1 sec Electrically Isolated Substrate for Easy Assembly

• Compact Design for Low Total Module Resistance

• Module Serialization for Full Traceability

• Lead Free, RoHS and UL94V−0 Compliant

• Automotive Qualified per AEC Q101 and AQG324 Guidelines

Description

OnBoard Charger H-Bridge in APM16 Series for LLC and Phase-shifted DC-DC Converter. 51mOhm SuperFET3 H-Bridge on AlN DBC substrate with 5kV isolation in a compact APM16 transfer molded module
