PEH169 Series

Manufacturer: KEMET

Catalog

ALUMINUM ELECTROLYTIC CAPACITORS - SCREW TERMINAL 450V 3300UF 20% 38000HRS

Part	Ripple Current @ High Frequency	Capacitance	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Applications	Package / Case	Voltage - Rated	Size / Dimension [diameter]	Size / Dimension [diameter]	Polarization	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Lead Spacing	Lead Spacing	Ripple Current @ Low Frequency	Tolerance	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	ESR (Equivalent Series Resistance)	Tolerance [Min]	Tolerance [Max]	Lifetime @ Temp.	Size / Dimension [diameter]
KEMET PEH169YY4330MB2	28.3 A	3.3 mF	146.5 mm	5.768 "	General Purpose	Radial Can - Screw Terminals	450 V	3.606 "	91.6 mm	Polar	Chassis Mount	85 °C	-40 C	1.26 in	32 mm	12.6 A	20 %
KEMET PEH169KH5150QB2	30.5 A	15 mF			General Purpose	Radial Can - Screw Terminals	40 V	2.031 in	51.6 mm	Polar	Chassis Mount	105 ░C	-40 C	0.866 "	22 mm	10.2 A		75.5 mm	2.972 in	14 mOhm	-10 %	30 %	8000 Hrs
KEMET PEH169PO5100QB2	36.6 A	10000 µF			General Purpose	Radial Can - Screw Terminals	100 V		2.622 in	Polar	Chassis Mount	105 ░C	-40 C	1.122 in	28.5 mm	11.7 A		107 mm	4.213 in	14 mOhm	-10 %	30 %	10000 Hrs	66.6 mm
KEMET PEH169KA4330QU2	17.6 A	3.3 mF			General Purpose	Radial Can - Screw Terminals	40 V	1.441 in	36.6 mm	Polar	Chassis Mount	105 ░C	-40 C	0.512 "	13 mm	4.6 A		52.5 mm	2.067 in	41 mOhm	-10 %	30 %	7000 Hrs
KEMET PEH169KV6100QU2	59 A	0.1 F	147 mm	5.787 in	General Purpose	Radial Can - Screw Terminals	40 V	3.016 "	76.6 mm	Polar	Chassis Mount	105 ░C	-40 C	1.26 in	32 mm	23 A				4 mOhm	-10 %	30 %	13000 Hrs
KEMET PEH169VY447VMU2		4700 µF	146.5 mm	5.768 "	General Purpose	Radial Can - Screw Terminals	400 V	3.606 "	91.6 mm	Polar	Chassis Mount	85 °C	-40 C	1.26 in	32 mm	16.8 A	20 %			25 mOhm
KEMET PEH169MC447VMU2	23.9 A	4700 µF	74.5 mm	2.933 in	General Purpose	Radial Can - Screw Terminals	63 V	1.441 in	36.6 mm	Polar	Chassis Mount	85 °C	-40 C	0.512 "	13 mm	8.8 A	20 %			23 mOhm			14000 Hrs
KEMET PEH169HA468VMB2	18.3 A	6800 µF			General Purpose	Radial Can - Screw Terminals	25 VDC	1.441 in	36.6 mm	Polar	Chassis Mount	85 °C	-40 C	0.512 "	13 mm	8.3 A	20 %	52.5 mm	2.067 in	30 mOhm			5000 Hrs
KEMET PEH169UO4150QB2	23.5 A	1.5 mF			General Purpose	Radial Can - Screw Terminals	350 V		2.622 in	Polar	Chassis Mount	105 ░C	-40 C	1.122 in	28.5 mm	5.5 A		107 mm	4.213 in	60 mOhm	-10 %	30 %	10000 Hrs	66.6 mm

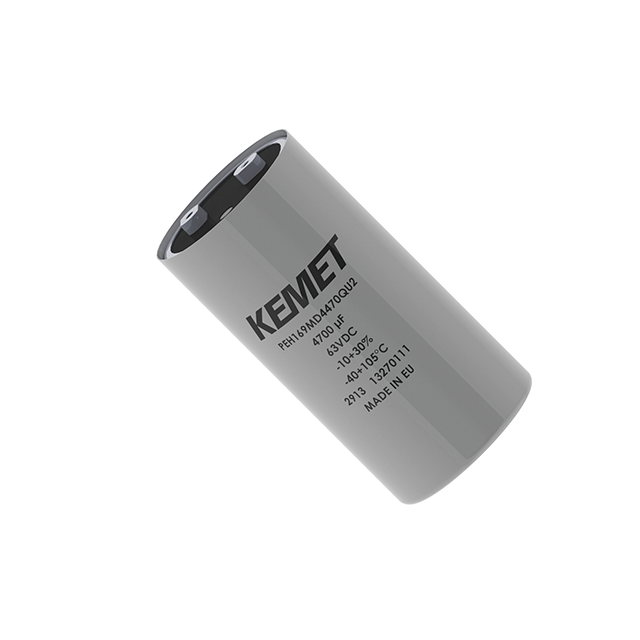

KEMET PEH169KA4330QB2	17.6 A	3.3 mF	51.5 mm	2.028 in	General Purpose	Radial Can - Screw Terminals	40 V	1.441 in	36.6 mm	Polar	Chassis Mount	105 ░C	-40 C	0.512 "	13 mm	4.6 A				41 mOhm	-10 %	30 %	7000 Hrs
