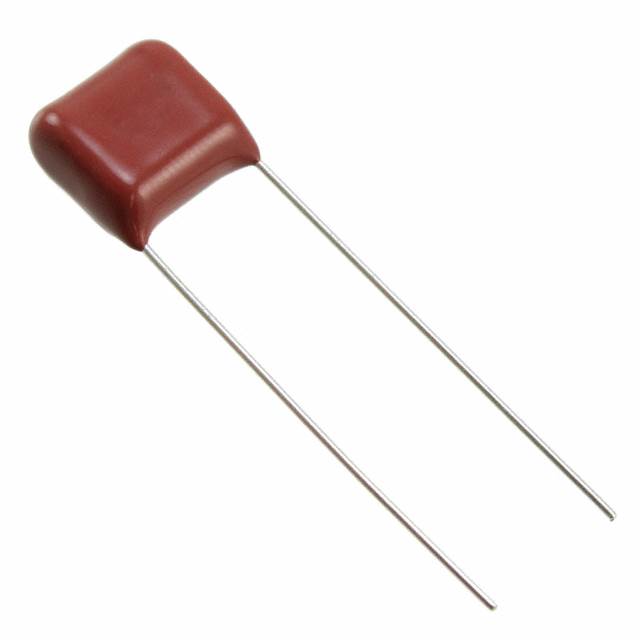

ECQ-E2334 Series

Manufacturer: Panasonic Electronic Components

Catalog

FILM CAPACITORS 250VDC 0.33UF 10% MPET L/S=7.5MM

Part	Height - Seated (Max) [Max]	Height - Seated (Max)	Termination	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Package / Case	Voltage Rating - DC	Mounting Type	Tolerance	Lead Spacing	Lead Spacing	Applications	Operating Temperature [Min]	Operating Temperature [Max]	Dielectric Material	Capacitance	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max]
Panasonic Electronic Components ECQ-E2334RKB	0.642 in	16.3 mm	PC Pins	0.252 in	6.4 mm	10.3 mm	0.406 in	Radial	250 V	Through Hole	10 %	0.295 in	7.5 mm	General Purpose	-40 C	105 ░C	Polyester Metallized	0.33 µF
Panasonic Electronic Components ECQ-E2334RJF	0.472 in	12 mm	PC Pins	0.256 "	6.5 mm	12 mm	0.472 in	Radial	250 V	Through Hole	5 %	0.394 in	10 mm	General Purpose	-40 C	105 ░C	Polyester Metallized	0.33 µF
Panasonic Electronic Components ECQ-E2334JB3	0.642 in	16.3 mm	PC Pins	0.252 in	6.4 mm	10.3 mm	0.406 in	Radial	250 V	Through Hole	5 %	0.197 "	5 mm	General Purpose	-40 C	105 ░C	Polyester Metallized	0.33 µF
Panasonic Electronic Components ECQ-E2334JF			PC Pins	0.256 "	6.5 mm	12 mm	0.472 in	Radial	250 V	Through Hole	5 %	0.394 in	10 mm	General Purpose	-40 C	105 ░C	Polyester Metallized	0.33 µF	0.512 "	13 mm
Panasonic Electronic Components ECQ-E2334KBB	0.642 in	16.3 mm	PC Pins	0.252 in	6.4 mm	10.3 mm	0.406 in	Radial	250 V	Through Hole	10 %	0.197 "	5 mm	General Purpose	-40 C	105 ░C	Polyester Metallized	0.33 µF
Panasonic Electronic Components ECQ-E2334JF9			PC Pins	0.256 "	6.5 mm	12 mm	0.472 in	Radial	250 V	Through Hole	5 %	0.197 "	5 mm	General Purpose	-40 C	105 ░C	Polyester Metallized	0.33 µF	0.669 "		17 mm
Panasonic Electronic Components ECQ-E2334KFW			PC Pins	0.256 "	6.5 mm	12 mm	0.472 in	Radial	250 V	Through Hole	10 %	0.394 in	10 mm	General Purpose	-40 C	105 ░C	Polyester Metallized	0.33 µF	0.669 "		17 mm
Panasonic Electronic Components ECQ-E2334JFW			PC Pins	0.256 "	6.5 mm	12 mm	0.472 in	Radial	250 V	Through Hole	5 %	0.394 in	10 mm	General Purpose	-40 C	105 ░C	Polyester Metallized	0.33 µF	0.669 "		17 mm
