5120.2207 Series
Manufacturer: SCHURTER Inc.
Beta
⌘K

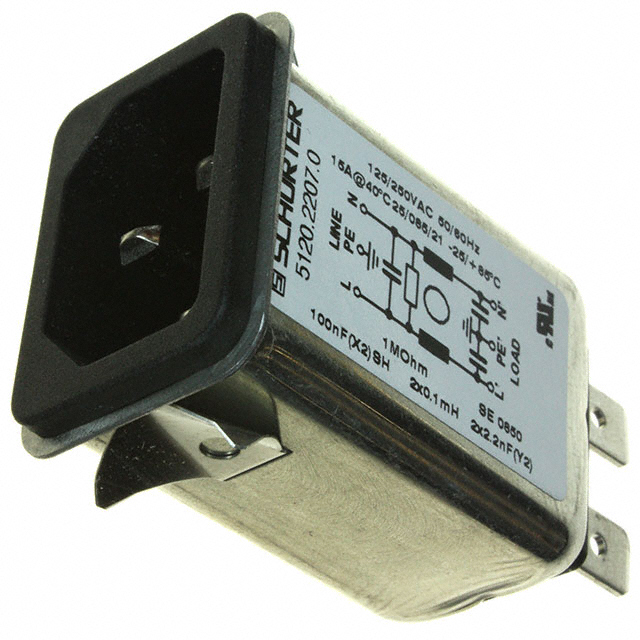

PWR ENT RCPT IEC320-C14 PANEL QC
| Part | Features | Termination | Termination | Termination | Panel Thickness [Min] | Panel Thickness [Max] | Panel Thickness [Min] | Panel Thickness [Max] | Filter Type | Accomodates a Fuse | Material Flammability Rating | Current Rating - Filter | Ingress Protection | Approval Agency | Connector Type | Connector Style | Panel Cutout Dimensions [x] | Panel Cutout Dimensions [y] | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SCHURTER Inc. | Bleed Resistor Shielded | 6.3 mm | Quick Connect | 0.25 " | 0.79 mm | 0.079 " | 0.031 " | 2 mm | Filtered (EMI RFI) - Commercial | UL94 V-0 | 15 A | IP40 | CCC cULus ENEC | Receptacle Male Blades | IEC 320-C14 | 29.4 mm | 21.5 mm | Panel Mount Snap-In |
