BU-P3750 Series
Manufacturer: Mueller Electric Co
Beta
⌘K

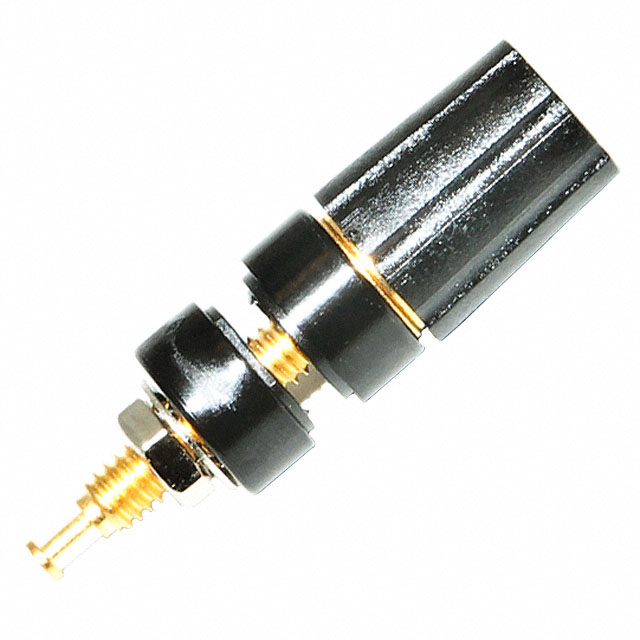

CONN BIND POST KNURLED BLACK
| Part | Material - Insulation | Head Size [diameter] | Head Size [diameter] | Cross Hole Diameter | Cross Hole Diameter | Voltage Rating | Panel Thickness [Max] | Panel Thickness [Min] | Panel Thickness [Max] | Panel Thickness [Min] | Termination | Plating - Body | Type | Material - Body | Current Rating (Amps) | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mueller Electric Co | Polycarbonate (PC) | 0.44 " | 11.18 mm | 2.43 mm | 0.096 in | 2500 V | 0.25 " | 0.07 " | 6.35 mm | 1.77 mm | Threaded and Turret | Gold | Standard | Brass | 15 A | Black |
 Mueller Electric Co | Polycarbonate (PC) | 0.44 " | 11.18 mm | 2.43 mm | 0.096 in | 2500 V | 0.25 " | 0.07 " | 6.35 mm | 1.77 mm | Threaded and Turret | Gold | Standard | Brass | 15 A | Red |
