8315 Series
Manufacturer: Belden Inc.
Beta
⌘K

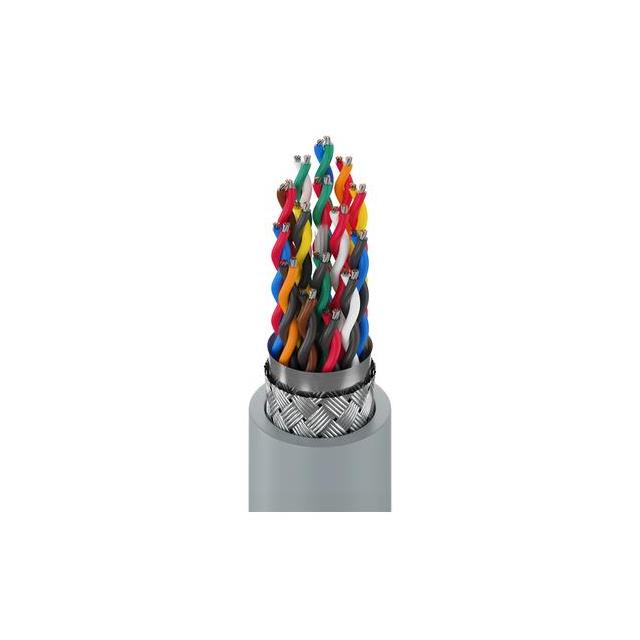

MULTI-PAIR 30COND 22AWG
| Part | Shield Material | Shield Coverage | Cable Type | Wire Gauge | Jacket (Insulation) Material | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Shield Type | Number of Conductors | Conductor Material | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Conductor Insulation | Operating Temperature [Max] | Operating Temperature [Min] | Usage | Voltage | Jacket Color | Ratings | Conductor Strand [custom] | Conductor Strand [custom] | Length [x] | Length [x] | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Aluminum Copper Tinned | 65 % 100 % | Multi-Pair | 22 AWG | Poly-Vinyl Chloride (PVC) | 12.75 mm | 0.502 in | Braid Foil | 30 | Copper Tinned | 1.016 mm | 0.04 in | Poly-Vinyl Chloride (PVC) | 80 °C | -30 ░C | Computer | 300 VDC | Chrome | UL Style 2464 | 30 AWG | 7 | 100 ft | 30.5 m | ||
Belden Inc. | Aluminum Copper Tinned | 65 % 100 % | Multi-Pair | 22 AWG | Poly-Vinyl Chloride (PVC) | 12.75 mm | 0.502 in | Braid Foil | 30 | Copper Tinned | 1.016 mm | 0.04 in | Poly-Vinyl Chloride (PVC) | 80 °C | -30 ░C | Computer | 300 VDC | Chrome | UL Style 2464 | 30 AWG | 7 | 304.8 m | 1000 ft |
