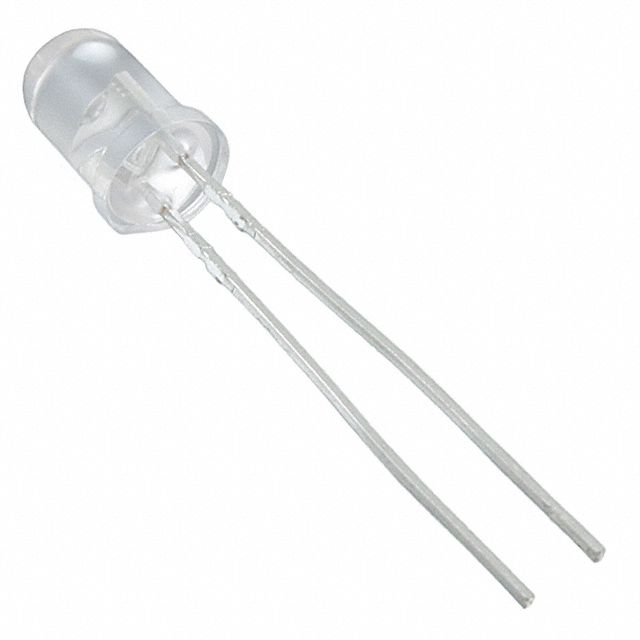

HLMP-EL3 Series

Catalog

LED AMBER T-1 3/4 T/H

Part	Lens Size	Lens Size	Wavelength - Dominant	Mounting Type	Configuration	Viewing Angle	Size / Dimension [diameter]	Color	Lens Style	Supplier Device Package	Package / Case	Height (Max) [Max]	Current - Test	Wavelength - Peak	Voltage - Forward (Vf) (Typ)	Millicandela Rating	Lens Transparency	Lens Color	Height (Max) [Max] [z]
Broadcom Limited HLMP-EL3U-XYKDD	T-1 3/4	5 mm	590 nm	Through Hole	Standard	30 °	5 mm	Amber	Round with Domed Top	T-1 3/4 (5mm)	Radial	8.91 mm
Broadcom Limited HLMP-EL3S-VXKDD	T-1 3/4	5 mm	590 nm	Through Hole	Standard	30 °	5 mm	Amber	Round with Domed Top	T-1 3/4 (5mm)	Radial	8.91 mm	20 mA	594 nm	2.1 V
Broadcom Limited HLMP-EL3H-VX0DD	T-1 3/4	5 mm	590 nm	Through Hole	Standard	30 °	5 mm	Amber	Round with Domed Top	T-1 3/4 (5mm)	Radial	8.91 mm	20 mA	594 nm	2.1 V
Broadcom Limited HLMP-EL3A-WXKDD	T-1 3/4	5 mm	590 nm	Through Hole	Standard	30 °		Amber	Round with Domed Top	T-1 3/4 (5mm)	Radial	8.91 mm	20 mA	594 nm	2.1 V	7400 mcd	Clear	Colorless
Broadcom Limited HLMP-EL3B-WXLDV	T-1 3/4	5 mm	590 nm	Through Hole	Standard	30 °		Amber	Round with Domed Top	T-1 3/4	Radial		20 mA	594 nm	2.1 V	7400 mcd	Clear	Colorless
Broadcom Limited HLMP-EL3S-VX0DD	T-1 3/4	5 mm	590 nm	Through Hole	Standard	30 °	5 mm	Amber	Round with Domed Top	T-1 3/4 (5mm)	Radial	8.91 mm	20 mA	594 nm	2.1 V
Broadcom Limited HLMP-EL3H-VW0DD	T-1 3/4	5 mm	590 nm	Through Hole	Standard	30 °		Amber	Round with Domed Top	T-1 3/4	Radial		20 mA	594 nm	2.1 V	5700 mcd	Clear	Colorless	12.35 mm
Broadcom Limited HLMP-EL3V-XY0DD	T-1 3/4	5 mm	590 nm	Through Hole	Standard	30 °	5 mm	Amber	Round with Domed Top	T-1 3/4 (5mm)	Radial								12.51 mm
Broadcom Limited HLMP-EL3A-WXKDV	T-1 3/4	5 mm	590 nm	Through Hole	Standard	30 °		Amber	Round with Domed Top	T-1 3/4	Radial	8.91 mm	20 mA	594 nm	2.1 V	7400 mcd	Clear	Colorless
Broadcom Limited HLMP-EL3V-XYKDD	T-1 3/4	5 mm	590 nm	Through Hole	Standard	30 °	5 mm	Amber	Round with Domed Top	T-1 3/4 (5mm)	Radial								12.51 mm
