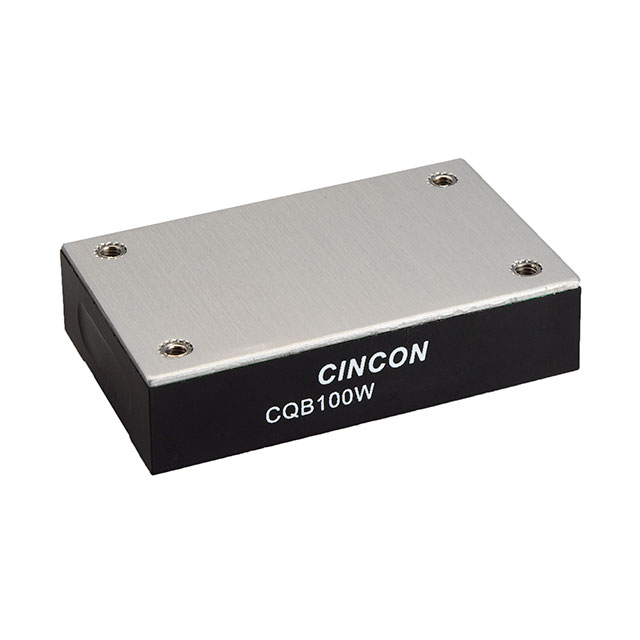

CQB100 Series

Manufacturer: Cincon Electronics Co. LTD

Catalog

ISOLATED DC/DC CONVERTERS - THROUGH HOLE

Part	Control Features	Voltage - Output 1	Supplier Device Package	Standard Number	Voltage - Input (Max) [Max]	Voltage - Input (Min) [Min]	Number of Outputs	Type	Efficiency	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Features	Mounting Type	Power (Watts)	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Voltage - Isolation	Applications	Current - Output (Max) [Max]

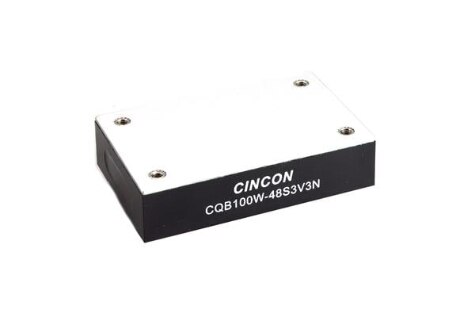

Cincon Electronics Co. LTD CQB100W-24S12N	Active Low Enable	12 V	Module	60950-1	36 V	9 V	1	Isolated Module	86.5 %	Module	-40 °C	100 °C	OCP OTP OVP Remote On/Off SCP UVLO	Through Hole	100 W	57.9 mm	1.45 in	0.5 in	2.28 "	12.7 mm	36.8 mm	1.5 kV	ITE (Commercial)	8.3 A
Cincon Electronics Co. LTD CQB100W-24S3V3N	Active Low Enable	3.3 V	Module	60950-1	36 V	9 V	1	Isolated Module	86 %	Module	-40 °C	100 °C	OCP OTP OVP Remote On/Off SCP UVLO	Through Hole	99 W	57.9 mm	1.45 in	0.5 in	2.28 "	12.7 mm	36.8 mm	1.5 kV	ITE (Commercial)	30 A
Cincon Electronics Co. LTD CQB100W-48S05N	Active Low Enable	5 V	Module	60950-1	75 V	18 V	1	Isolated Module	88 %	Module	-40 °C	100 °C	OCP OTP OVP Remote On/Off SCP UVLO	Through Hole	100 W	57.9 mm	1.45 in	0.5 in	2.28 "	12.7 mm	36.8 mm	1.5 kV	ITE (Commercial)	20 A
Cincon Electronics Co. LTD CQB100W-24S24	Active High Enable	24 V	Module	60950-1	36 V	9 V	1	Isolated Module	87 %	Module	-40 °C	100 °C	OCP OTP OVP Remote On/Off SCP UVLO	Through Hole	100 W	57.9 mm	1.45 in	0.5 in	2.28 "	12.7 mm	36.8 mm	1.5 kV	ITE (Commercial)	4.17 A
Cincon Electronics Co. LTD CQB100W-24S12	Active High Enable	12 V	Module	60950-1	36 V	9 V	1	Isolated Module	86.5 %	Module	-40 °C	100 °C	OCP OTP OVP Remote On/Off SCP UVLO	Through Hole	100 W	57.9 mm	1.45 in	0.5 in	2.28 "	12.7 mm	36.8 mm	1.5 kV	ITE (Commercial)	8.3 A
Cincon Electronics Co. LTD CQB100W-24S05N	Active Low Enable	5 V	Module	60950-1	36 V	9 V	1	Isolated Module	86.5 %	Module	-40 °C	100 °C	OCP OTP OVP Remote On/Off SCP UVLO	Through Hole	100 W	57.9 mm	1.45 in	0.5 in	2.28 "	12.7 mm	36.8 mm	1.5 kV	ITE (Commercial)	20 A
Cincon Electronics Co. LTD CQB100W-24S15	Active High Enable	15 V	Module	60950-1	36 V	9 V	1	Isolated Module	86.5 %	Module	-40 °C	100 °C	OCP OTP OVP Remote On/Off SCP UVLO	Through Hole	101 W	57.9 mm	1.45 in	0.5 in	2.28 "	12.7 mm	36.8 mm	1.5 kV	ITE (Commercial)	6.7 A
Cincon Electronics Co. LTD CQB100W-48S15	Active High Enable	15 V	Module	60950-1	75 V	18 V	1	Isolated Module	88 %	Module	-40 °C	100 °C	OCP OTP OVP Remote On/Off SCP UVLO	Through Hole	101 W	57.9 mm	1.45 in	0.5 in	2.28 "	12.7 mm	36.8 mm	1.5 kV	ITE (Commercial)	6.7 A
Cincon Electronics Co. LTD CQB100W-48S12N	Active Low Enable	12 V	Module	60950-1	75 V	18 V	1	Isolated Module	88 %	Module	-40 °C	100 °C	OCP OTP OVP Remote On/Off SCP UVLO	Through Hole	100 W	57.9 mm	1.45 in	0.5 in	2.28 "	12.7 mm	36.8 mm	1.5 kV	ITE (Commercial)	8.3 A
Cincon Electronics Co. LTD CQB100W-24S05	Active High Enable	5 V	Module	60950-1	36 V	9 V	1	Isolated Module	86.5 %	Module	-40 °C	100 °C	OCP OTP OVP Remote On/Off SCP UVLO	Through Hole	100 W	57.9 mm	1.45 in	0.5 in	2.28 "	12.7 mm	36.8 mm	1.5 kV	ITE (Commercial)	20 A
