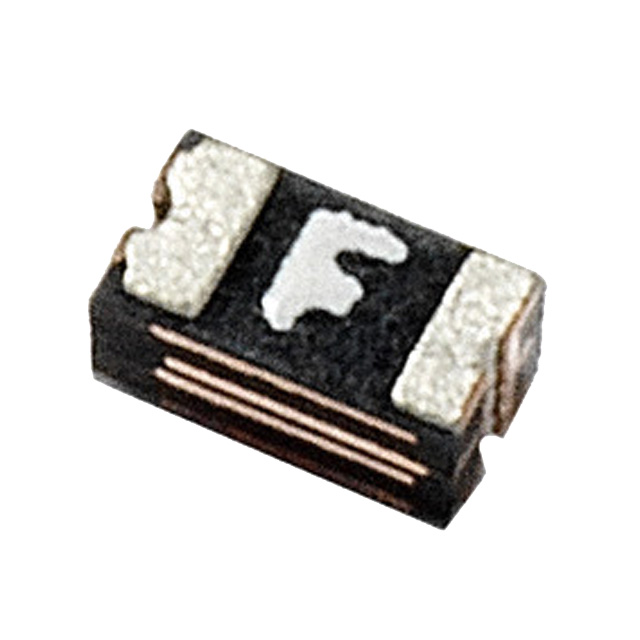

0603L002/60 Series

PTC 60V POLYFUSE SURF MOUNT 0603 .020A

Catalog

PTC 60V POLYFUSE SURF MOUNT 0603 .020A

Part	Time to Trip	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Type	Resistance - Initial (Ri) (Min) [Min]	Resistance - Post Trip (R1) (Max) [Max]	Current - Max [Max]	Thickness (Max) [Max]	Thickness (Max) [Max]	Approval Agency	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Package / Case	Package / Case	Current - Trip (It)	Current - Hold (Ih) (Max) [Max]	Voltage - Max [Max]
Littelfuse/Commercial Vehicle Products 0603L002/60YR	1 s	85 °C	-40 °C	Surface Mount	Polymeric	12 Ohms	70 Ohms	40 A	1 mm	0.039 in	cURus TUV	0.8 mm	0.063 in	1.6 mm	0.031 in	0603 Concave	1608 Metric	60 mA	20 mA	60 V

PTC 60V POLYFUSE SURF MOUNT 0603 .020A

• RoHS compliant, lead-free and halogen free

• Fast response to fault currents

• Compact design saves board space

• Low resistance

• Low-profile

• Compatible with high temperature solders

The 0603L Series PTC provides surface mount overcurrent protection for applications where space is at a premium and resettable protection is desired.
