A2H1CSQ Series
Manufacturer: CIT Relay and Switch
Beta
⌘K
RELAY AUTOMOTIVE SPDT 50A 12V
| Part | Coil Resistance | Contact Material | Coil Power | Coil Type | Operate Time | Release Time | Contact Rating (Current) | Coil Voltage | Coil Current | Contact Form | Termination Style | Must Release Voltage | Mounting Type | Must Operate Voltage | Features | Operating Temperature [Max] | Operating Temperature [Min] | Switching Voltage [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

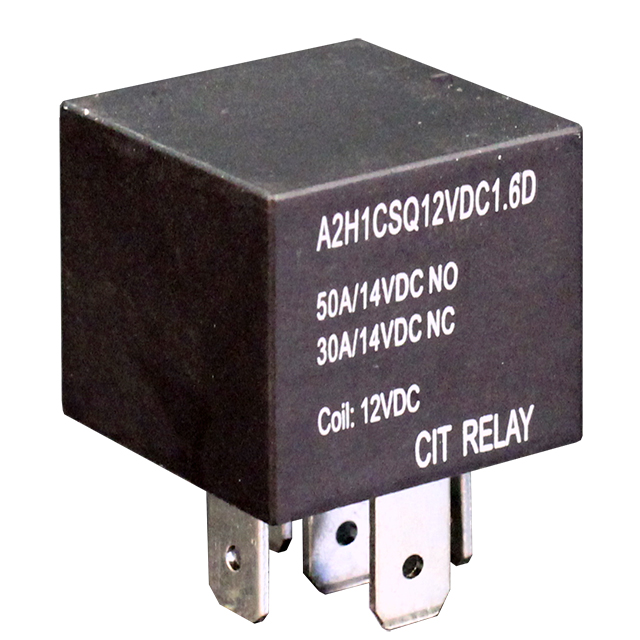

 CIT Relay and Switch | 90 Ohms | Silver Tin Oxide (AgSnO) | 1.6 W | Non Latching | 10 ms | 10 ms | 50 A | 12 VDC | 133.3 mA | SPDT (1 Form C) | Plug In Quick Connect - 0.250" (6.3mm) | 1.2 VDC | Socketable | 7.8 VDC | Diode Sealed - Fully | 125 °C | -40 C | 75 VDC |

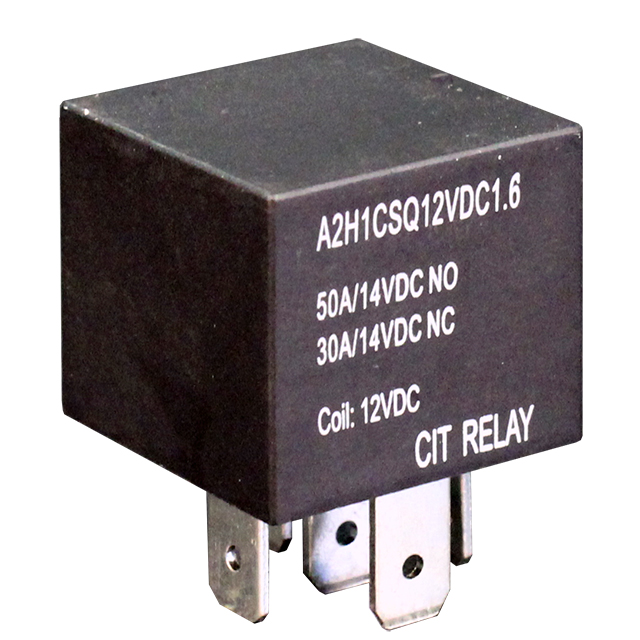

 CIT Relay and Switch | 90 Ohms | Silver Tin Oxide (AgSnO) | 1.6 W | Non Latching | 10 ms | 10 ms | 50 A | 12 VDC | 133.3 mA | SPDT (1 Form C) | Plug In Quick Connect - 0.250" (6.3mm) | 1.2 VDC | Socketable | 7.8 VDC | Sealed - Fully | 125 °C | -40 C | 75 VDC |

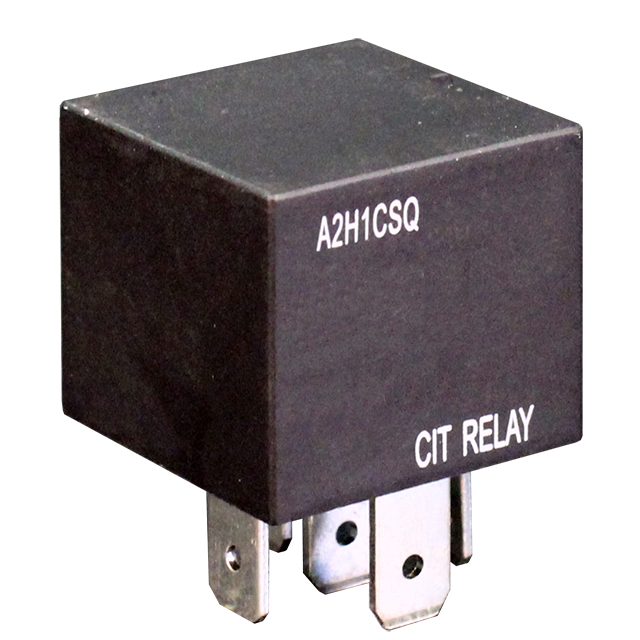

 CIT Relay and Switch | 360 Ohms | Silver Tin Oxide (AgSnO) | 1.6 W | Non Latching | 10 ms | 10 ms | 50 A | 24 VDC | 66.7 mA | SPDT (1 Form C) | Plug In Quick Connect - 0.250" (6.3mm) | 2.4 VDC | Socketable | Sealed - Fully | 125 °C | -40 C | 75 VDC |
