2339204 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

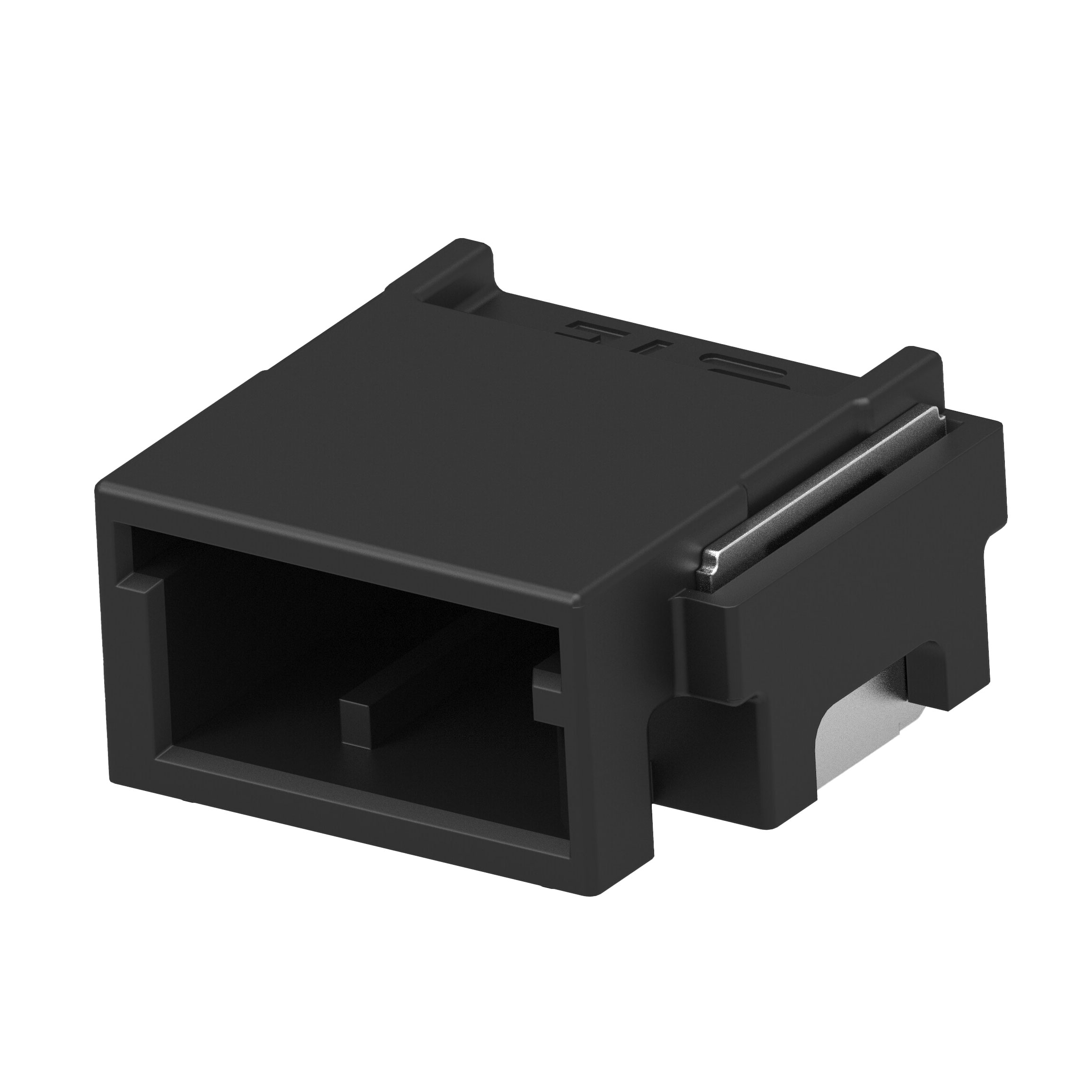

4POS,TAB0.5X0.4,HDR ASSY,90 DEG,COD A
| Part | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Contact Material | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Insulation Material | Number of Rows | Contact Type | Contact Shape | Fastening Type | Number of Positions Loaded | Connector Type | Pitch - Mating | Pitch - Mating | Style | Operating Temperature [Max] | Operating Temperature [Min] | Insulation Color | Shrouding | Voltage Rating | Features | Number of Positions | Insulation Height | Insulation Height | Contact Length - Mating | Contact Length - Mating | Mounting Type | Termination | Material Flammability Rating | Contact Finish - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | 12 µin | 0.3 µm | Copper Alloy | 39.4 µin | 1 µm | Glass Filled Nylon 4T Polyamide (PA4T) | 1 | Tab | Square | Push-Pull | All | Header | 0.05 in | 1.27 mm | Board to Cable/Wire | 130 °C | -40 °C | Black | Shrouded - 4 Wall | 12 V | Solder Retention | 4 | 5.97 mm | 0.235 in | 4 mm | 0.157 in | Surface Mount Right Angle | Solder | UL94 HB | Tin |
