EPM30 Series

Catalog

AC/DC CONVERTER 3.3V 20W

Part	Load Regulation	Approval Agency	Line Regulation	Current - Output (Max) [Max]	Applications	Voltage - Output 1	Package / Case	Efficiency	Features	Voltage - Input [Min]	Voltage - Input [Max]	Mounting Type	Number of Outputs	Power (Watts)	Type	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Isolation	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Standard Number	Current - Output 1

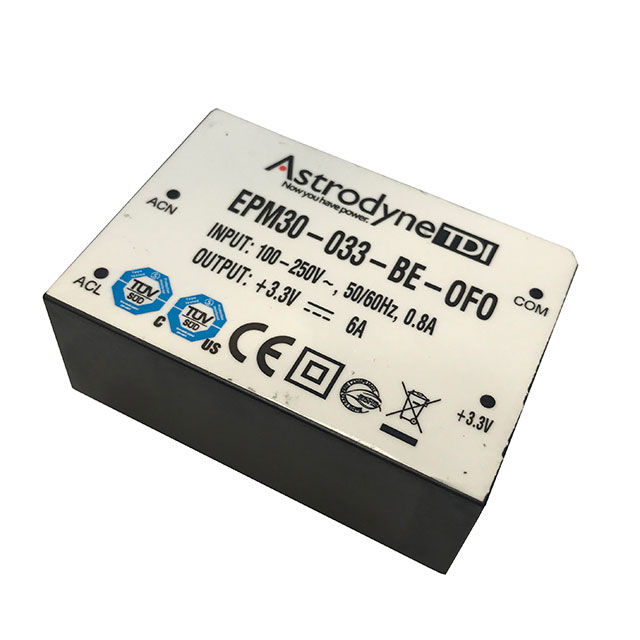

Astrodyne TDI EPM30-033-BE-0F0	3 %	CB CE cTUVus TUV	0.5 %	6.06 A	Medical	3.3 V	5-DIP Module 4 Leads	87.5 %	Universal Input	80 VAC	275 VAC	Through Hole	1	20 W	Enclosed	-40 °C	85 °C
Astrodyne TDI EPM30-050-BC-0F0		CB CE cTUVus TUV			Medical	5 V		87.5 %	Universal Input	80 VAC	275 VAC	Chassis Mount	1	30 Watts	Enclosed	-40 °C	85 °C	4000 V	1 in	2.16 in	25.4 mm	95.8 mm	3.77 "	54.9 mm	60601-1	6 A
Astrodyne TDI EPM30-090-BC-0F0		CB CE cTUVus TUV			Medical	9 V		87.5 %	Universal Input	80 VAC	275 VAC	Chassis Mount	1	30 Watts	Enclosed	-40 °C	85 °C	4000 V	1 in	2.16 in	25.4 mm	95.8 mm	3.77 "	54.9 mm	60601-1	3.33 A
Astrodyne TDI EPM30-180-BC-0F0		CB CE cTUVus TUV			Medical	18 V		87.5 %	Universal Input	80 VAC	275 VAC	Chassis Mount	1	30 Watts	Enclosed	-40 °C	85 °C	4000 V	1 in	2.16 in	25.4 mm	95.8 mm	3.77 "	54.9 mm	60601-1	1.67 A
Astrodyne TDI EPM30-090-BE-0F0	3 %	CB CE cTUVus TUV	0.5 %	3.33 A	Medical	9 V	5-DIP Module 4 Leads	87.5 %	Universal Input	80 VAC	275 VAC	Through Hole	1	30 Watts	Enclosed	-40 °C	85 °C
Astrodyne TDI EPM30-180-BE-0F0	3 %	CB CE cTUVus TUV	0.5 %	1.67 A	Medical	18 V	5-DIP Module 4 Leads	87.5 %	Universal Input	80 VAC	275 VAC	Through Hole	1	30 Watts	Enclosed	-40 °C	85 °C
Astrodyne TDI EPM30-120-BP-0F0	3 %	CB CE cTUVus TUV	0.5 %	2.5 A	Medical	12 V	5-DIP Module 4 Leads	87.5 %	Universal Input	80 VAC	275 VAC	Through Hole	1	30 Watts	Open Frame	-40 °C	85 °C		0.93 "	1.6 in	23.7 mm	60.5 mm	2.38 in	40.6 mm
Astrodyne TDI EPM30-180-BP-0F0	3 %	CB CE cTUVus TUV	0.5 %	1.67 A	Medical	18 V	5-DIP Module 4 Leads	87.5 %	Universal Input	80 VAC	275 VAC	Through Hole	1	30 Watts	Open Frame	-40 °C	85 °C		0.93 "	1.6 in	23.7 mm	60.5 mm	2.38 in	40.6 mm

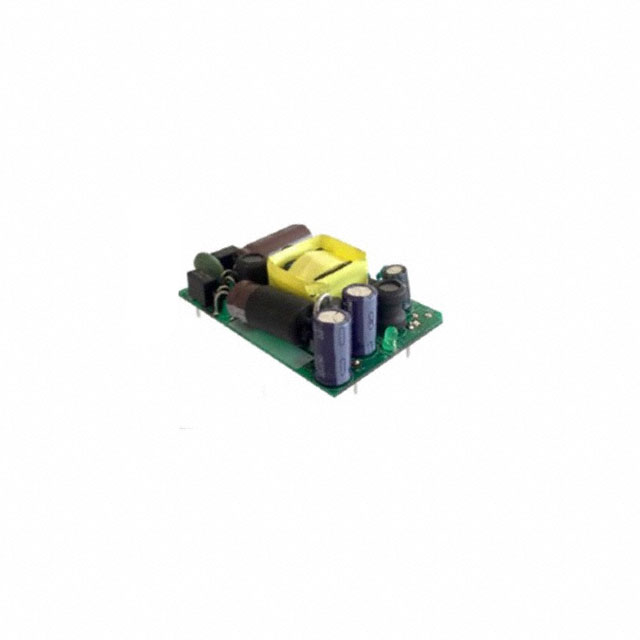

Astrodyne TDI EPM30-033-BP-0F0	3 %	CB CE cTUVus TUV	0.5 %	6.06 A	Medical	3.3 V	5-DIP Module 4 Leads	87.5 %	Universal Input	80 VAC	275 VAC	Through Hole	1	20 W	Open Frame	-40 °C	85 °C		0.93 "	1.6 in	23.7 mm	60.5 mm	2.38 in	40.6 mm
Astrodyne TDI EPM30-150-BP-0F0	3 %	CB CE cTUVus TUV	0.5 %	2 A	Medical	15 V	5-DIP Module 4 Leads	87.5 %	Universal Input	80 VAC	275 VAC	Through Hole	1	30 Watts	Open Frame	-40 °C	85 °C		0.93 "	1.6 in	23.7 mm	60.5 mm	2.38 in	40.6 mm
