24-4060 Series
Manufacturer: Kester Solder
Beta
⌘K

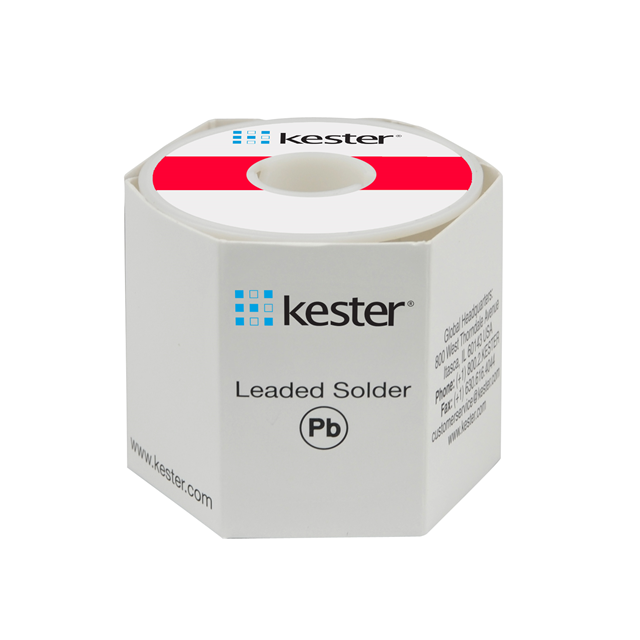

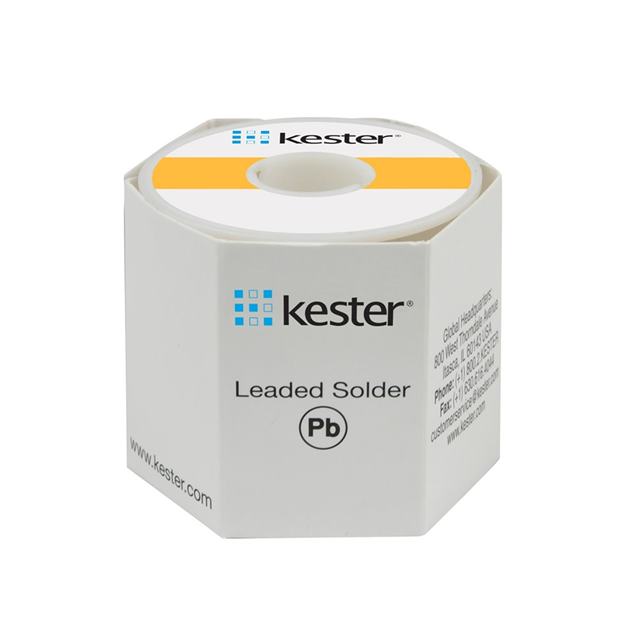

SOLDER FLUX-CORED/88 .020" 1LB S
| Part | Type | Process | Storage/Refrigeration Temperature [Max] | Storage/Refrigeration Temperature [Min] | Diameter [diameter] | Diameter [diameter] | Flux Type | Form | Form | Wire Gauge | Composition | Melting Point [Max] | Melting Point [Min] | Melting Point [Min] | Melting Point [Max] | Shelf Life | Wire Gauge | Shelf Life Start |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Kester Solder | Wire Solder | Leaded | 40 °C 104 F | 10 C 50 F | 0.02 in | 0.51 mm | Rosin Activated (RA) | 1 lb 454 g | Spool | 24 AWG 25 mmý | Pb60Sn40 (60/40) | 460 °F | 183 °C | 361 °F | 238 °C | |||
 Kester Solder | Wire Solder | Leaded | 40 °C 104 F | 10 C 50 F | 0.125 in | 3.18 mm | Acid Cored | 1 lb 454 g | Spool | Pb60Sn40 (60/40) | 460 °F | 183 °C | 361 °F | 238 °C | 36 Months | 10 SWG 8 AWG | Date of Manufacture | |
 Kester Solder | Wire Solder | Leaded | 40 °C 104 F | 10 C 50 F | 0.062 in | 1.57 mm | Rosin Activated (RA) | 1 lb 454 g | Spool | Pb60Sn40 (60/40) | 460 °F | 183 °C | 361 °F | 238 °C | 14 16 | |||
Kester Solder | Wire Solder | Leaded | 40 °C 104 F | 10 C 50 F | 0.093 in | 2.36 mm | Rosin Activated (RA) | 1 lb 454 g | Spool | 11 AWG 13 SWG | Pb60Sn40 (60/40) | 460 °F | 183 °C | 361 °F | 238 °C |
