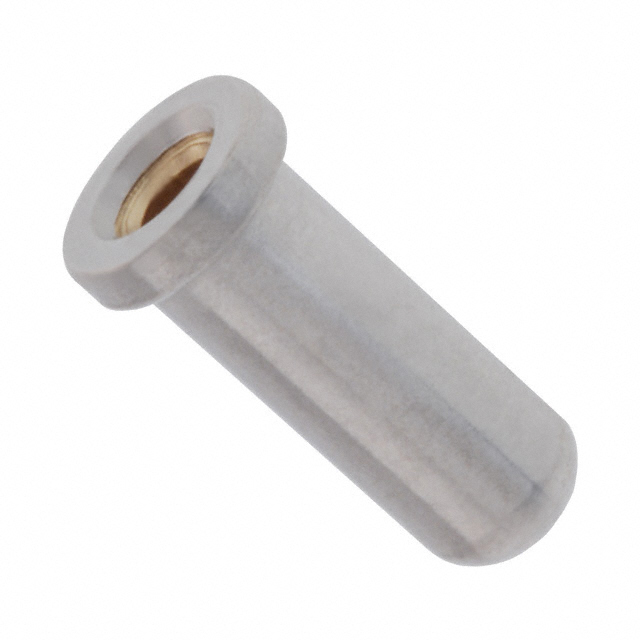

0317-0 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

CONN PIN RCPT

Part	Operating Temperature [Min]	Operating Temperature [Max]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Termination	Flange Diameter [diameter]	Flange Diameter [diameter]	Tail Type	Contact Finish	Contact Material	Length - Overall [x]	Length - Overall [x]	Contact Finish Thickness	Contact Finish Thickness	Pin Hole Diameter [diameter]	Pin Hole Diameter [diameter]	Mounting Hole Diameter	Mounting Hole Diameter	Socket Depth	Socket Depth
Mill-Max Manufacturing Corp. 0317-0-15-80-34-14-10-0	-55 C	125 °C	1.17 mm	0.81 mm	0.046 "	0.032 "	Solder	0.12 in	3.05 mm	No Tail	Gold	Beryllium Copper	6.43 mm	0.253 in	0.25 Ám	10 Áin	1.63 mm	0.064 in	2.31 mm	0.091 in	0.22 in	5.59 mm
Mill-Max Manufacturing Corp. 0317-0-15-80-34-27-10-0	-55 C	125 °C	1.17 mm	0.81 mm	0.046 "	0.032 "	Solder	0.12 in	3.05 mm	No Tail	Gold	Beryllium Copper	6.43 mm	0.253 in	0.76 Ám	30 Áin	1.63 mm	0.064 in	2.31 mm	0.091 in	0.22 in	5.59 mm
Mill-Max Manufacturing Corp. 0317-0-15-15-34-27-10-0	-55 C	125 °C	1.17 mm	0.81 mm	0.046 "	0.032 "	Solder	0.12 in	3.05 mm	No Tail	Gold	Beryllium Copper	6.43 mm	0.253 in	0.76 Ám	30 Áin	1.63 mm	0.064 in	2.31 mm	0.091 in	0.22 in	5.59 mm
Mill-Max Manufacturing Corp. 0317-0-15-80-34-80-10-0	-55 C	125 °C	1.17 mm	0.81 mm	0.046 "	0.032 "	Solder	0.12 in	3.05 mm	No Tail	Tin	Beryllium Copper	6.43 mm	0.253 in	5.08 Ám	200 Áin	1.63 mm	0.064 in	2.31 mm	0.091 in	0.22 in	5.59 mm
Mill-Max Manufacturing Corp. 0317-0-15-01-34-01-10-0	-55 C	125 °C	1.17 mm	0.81 mm	0.046 "	0.032 "	Solder	0.12 in	3.05 mm	No Tail	Tin-Lead	Beryllium Copper	6.43 mm	0.253 in	5.08 Ám	200 Áin	1.63 mm	0.064 in	2.31 mm	0.091 in	0.22 in	5.59 mm
Mill-Max Manufacturing Corp. 0317-0-15-01-34-27-10-0	-55 C	125 °C	1.17 mm	0.81 mm	0.046 "	0.032 "	Solder	0.12 in	3.05 mm	No Tail	Gold	Beryllium Copper	6.43 mm	0.253 in	0.76 Ám	30 Áin	1.63 mm	0.064 in	2.31 mm	0.091 in	0.22 in	5.59 mm
