CDFS13W Series
Manufacturer: NorComp Inc.
Beta
⌘K

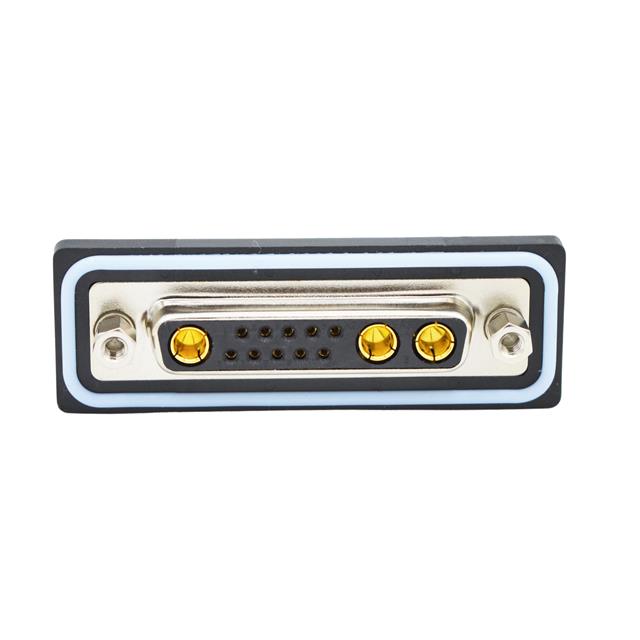

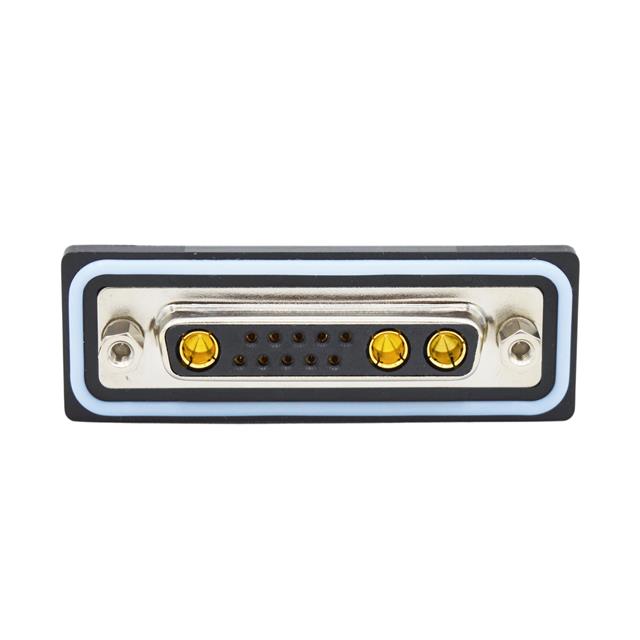

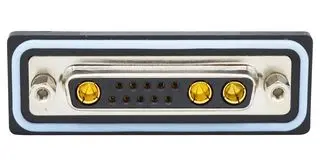

COMBINATION LAYOUT D SUB CONNECTOR, IP67, NANOOK SERIES, DB-13W3, RECEPTACLE, 13 CONTACTS
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Contact Material | Dielectric Material | Shell Size, Connector Layout | Shell Size, Connector Layout | Contact Finish Thickness | Number of Positions [custom] | Number of Positions [custom] | Mounting Type | Number of Rows [custom] | Connector Style | Shell Material, Finish | Contact Finish | Material Flammability Rating | Flange Feature | Connector Type | Ingress Protection | Contact Type | Features | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NorComp Inc. | 85 °C | -25 °C | Brass | Polybutylene Terephthalate (PBT) | 3 | 13C3 13W3 | Flash | 10 | 3 | Panel Mount | 2 | Combo D-Sub | Nickel Plated Steel | Gold | UL94 V-0 | 4-40 Mating Side Female Screwlock | Receptacle Female Sockets | IP67 - Dust Tight Waterproof | Signal and Power | |||

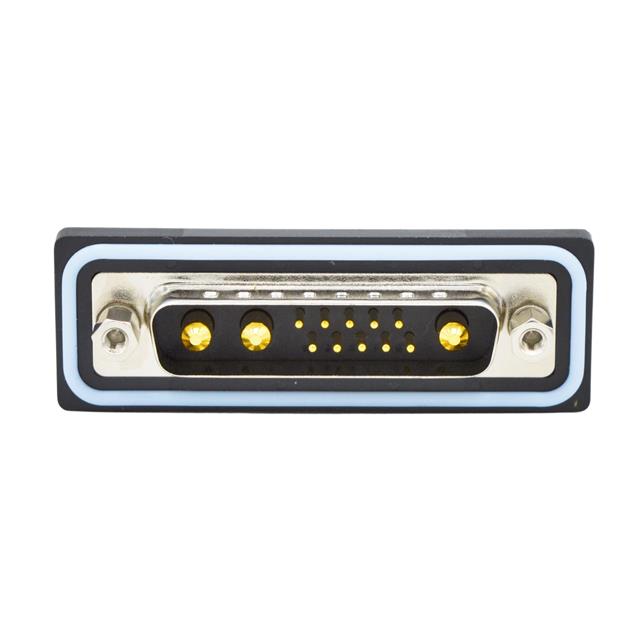

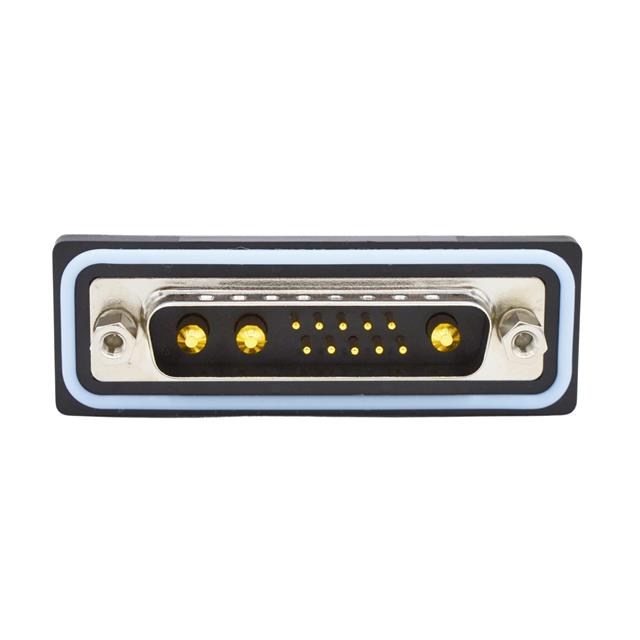

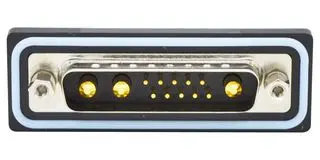

 NorComp Inc. | 85 °C | -25 °C | Brass | Polybutylene Terephthalate (PBT) | 3 | 13C3 13W3 | Flash | 10 | 3 | Panel Mount | 2 | Combo D-Sub | Nickel Plated Steel | Gold | UL94 V-0 | 4-40 Mating Side Female Screwlock | Plug Male Pins | IP67 - Dust Tight Waterproof | Signal and Power | Grounding Indents | ||
 NorComp Inc. | 85 °C | -25 °C | Brass | Polybutylene Terephthalate (PBT) | 3 | 13C3 13W3 | Flash | 10 | 3 | Panel Mount | 2 | Combo D-Sub | Nickel Plated Steel | Gold | UL94 V-0 | 4-40 Mating Side Female Screwlock | Receptacle Female Sockets | IP67 - Dust Tight Waterproof | Signal and Power | |||
NorComp Inc. | 85 °C | -25 °C | Brass | Polybutylene Terephthalate (PBT) | 3 | 13C3 13W3 | 10 | 3 | Panel Mount | 2 | Combo D-Sub | Nickel Plated Steel | Gold | UL94 V-0 | 4-40 Mating Side Female Screwlock | Receptacle Female Sockets | IP67 - Dust Tight Waterproof | Signal and Power | 30 Áin | 0.76 Ám | ||
 NorComp Inc. | 85 °C | -25 °C | Brass | Polybutylene Terephthalate (PBT) | 3 | 13C3 13W3 | 10 | 3 | Panel Mount | 2 | Combo D-Sub | Nickel Plated Steel | Gold | UL94 V-0 | 4-40 Mating Side Female Screwlock | Receptacle Female Sockets | IP67 - Dust Tight Waterproof | Signal and Power | 30 Áin | 0.76 Ám | ||
 NorComp Inc. | 85 °C | -25 °C | Brass | Polybutylene Terephthalate (PBT) | 3 | 13C3 13W3 | Flash | 10 | 3 | Panel Mount | 2 | Combo D-Sub | Nickel Plated Steel | Gold | UL94 V-0 | 4-40 Mating Side Female Screwlock | Plug Male Pins | IP67 - Dust Tight Waterproof | Signal and Power | Grounding Indents | ||
NorComp Inc. | 85 °C | -25 °C | Brass | Polybutylene Terephthalate (PBT) | 3 | 13C3 13W3 | 10 | 3 | Panel Mount | 2 | Combo D-Sub | Nickel Plated Steel | Gold | UL94 V-0 | 4-40 Mating Side Female Screwlock | Plug Male Pins | IP67 - Dust Tight Waterproof | Signal and Power | Grounding Indents | 30 Áin | 0.76 Ám | |
 NorComp Inc. | 85 °C | -25 °C | Brass | Polybutylene Terephthalate (PBT) | 3 | 13C3 13W3 | 10 | 3 | Panel Mount | 2 | Combo D-Sub | Nickel Plated Steel | Gold | UL94 V-0 | 4-40 Mating Side Female Screwlock | Plug Male Pins | IP67 - Dust Tight Waterproof | Signal and Power | Grounding Indents | 30 Áin | 0.76 Ám |
