892-043 Series

Manufacturer: EDAC Inc.

Catalog

Catalog

CONN EDGE SINGLE FML 43POS 0.100

...

Part	Material - Insulation	Termination Rows	Operating Temperature [Max]	Operating Temperature [Min]	Contact Material	Gender	Card Type	Number of Rows	Contact Finish Thickness	Contact Finish Thickness	Card Thickness [Max]	Card Thickness [Min]	Contact Finish	Read Out	Number of Positions	Color	Termination	Number of Positions/Bay/Row	Mounting Type	Pitch	Pitch	Contact Type	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]
EDAC Inc. 892-043-521-101	Polyphenylene Sulfide (PPS)	1	125 °C	-40 C	Copper Alloy	Female	Non Specified - Single Edge	1	0.25 Ám	10 Áin	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Single	43	Black	Solder	43	Through Hole	0.1 "	2.54 mm	Cantilever
EDAC Inc. 892-043-542-101	Polyphenylene Sulfide (PPS)	1	125 °C	-40 C	Copper Alloy	Female	Non Specified - Single Edge	1	0.25 Ám	10 Áin	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Single	43	Black	Wire Wrap	43	Through Hole	0.1 "	2.54 mm	Cantilever

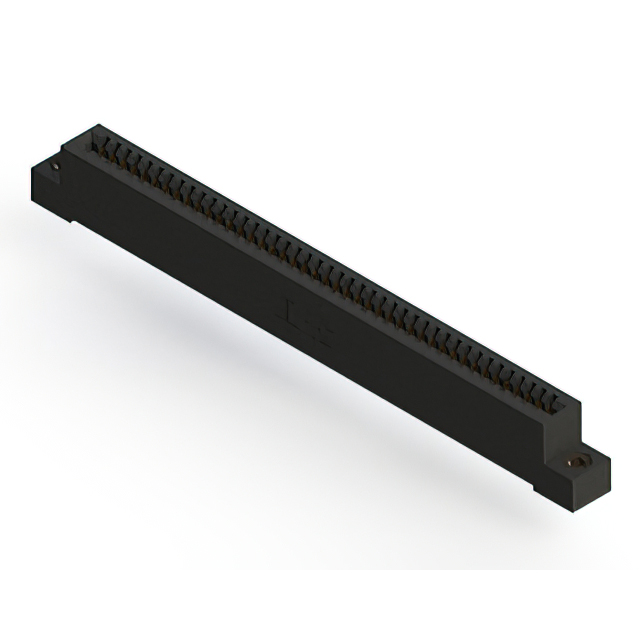

EDAC Inc. 892-043-524-107	Polyphenylene Sulfide (PPS)	1	125 °C	-40 C	Copper Alloy	Female	Non Specified - Single Edge	1	0.25 Ám	10 Áin	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Single	43	Black	Solder	43	Through Hole	0.1 "	2.54 mm	Cantilever	Flush Mount M3 Threaded Insert Top Opening
EDAC Inc. 892-043-540-102	Polyphenylene Sulfide (PPS)	1	125 °C	-40 C	Copper Alloy	Female	Non Specified - Single Edge	1	0.25 Ám	10 Áin	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Single	43	Black	Wire Wrap	43	Through Hole	0.1 "	2.54 mm	Cantilever	Flush Mount Top Opening Unthreaded	3.25 mm	0.128 "
EDAC Inc. 892-043-523-108	Polyphenylene Sulfide (PPS)	1	125 °C	-40 C	Copper Alloy	Female	Non Specified - Single Edge	1	0.25 Ám	10 Áin	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Single	43	Black	Solder	43	Through Hole	0.1 "	2.54 mm	Cantilever	4-40 Flush Mount Threaded Insert Top Opening
EDAC Inc. 892-043-520-107	Polyphenylene Sulfide (PPS)	1	125 °C	-40 C	Copper Alloy	Female	Non Specified - Single Edge	1	0.25 Ám	10 Áin	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Single	43	Black	Solder	43	Through Hole	0.1 "	2.54 mm	Cantilever	Flush Mount M3 Threaded Insert Top Opening
EDAC Inc. 892-043-541-101	Polyphenylene Sulfide (PPS)	1	125 °C	-40 C	Copper Alloy	Female	Non Specified - Single Edge	1	0.25 Ám	10 Áin	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Single	43	Black	Wire Wrap	43	Through Hole	0.1 "	2.54 mm	Cantilever

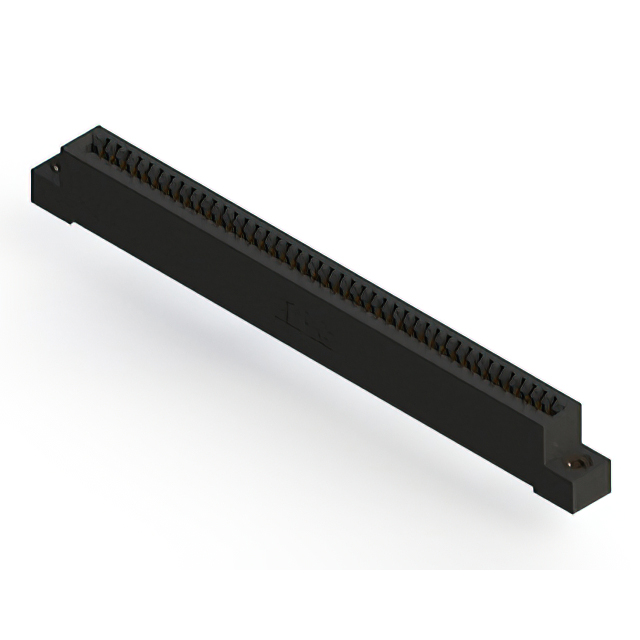

EDAC Inc. 892-043-521-107	Polyphenylene Sulfide (PPS)	1	125 °C	-40 C	Copper Alloy	Female	Non Specified - Single Edge	1	0.25 Ám	10 Áin	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Single	43	Black	Solder	43	Through Hole	0.1 "	2.54 mm	Cantilever	Flush Mount M3 Threaded Insert Top Opening

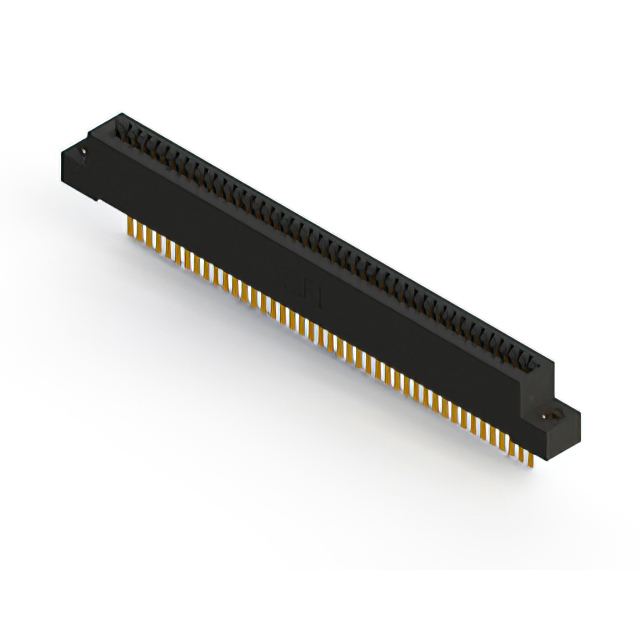

EDAC Inc. 892-043-544-108	Polyphenylene Sulfide (PPS)	1	125 °C	-40 C	Copper Alloy	Female	Non Specified - Single Edge	1	0.25 Ám	10 Áin	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Single	43	Black	Wire Wrap	43	Through Hole	0.1 "	2.54 mm	Cantilever	4-40 Flush Mount Threaded Insert Top Opening
EDAC Inc. 892-043-559-112	Polyphenylene Sulfide (PPS)	1	125 °C	-40 C	Copper Alloy	Female	Non Specified - Single Edge	1	0.25 Ám	10 Áin	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Single	43	Black	Solder	43	Right Angle Through Hole	0.1 "	2.54 mm	Cantilever	Flush Mount Side Opening Unthreaded	3.25 mm	0.128 "
