745187 Series

Catalog

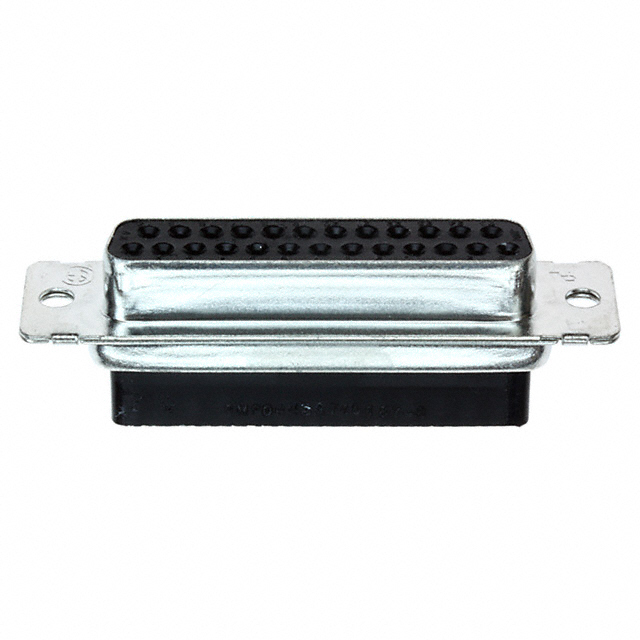

D SUB CONNECTOR, STANDARD, 25POS, RCPT

Part	Operating Temperature [Min]	Operating Temperature [Max]	Dielectric Material	Contact Material	Color	Voltage Rating	Current Rating (Amps)	Contact Finish	Termination	Connector Style	Number of Rows [custom]	Contact Finish Thickness	Mounting Type	Material Flammability Rating	Number of Positions	Connector Type	Shell Size, Connector Layout	Shell Size, Connector Layout [x]	Contact Type	Flange Feature
TE Connectivity AMP Connectors 745187-7	-55 C	105 ░C	Thermoplastic	Phosphor Bronze	Black	125 VDC	6 A	Gold	Solder	D-Sub	2	Flash	Through Hole	UL94 V-0	25	Receptacle Female Sockets	B DB	3	Signal	Housing/Shell (Unthreaded)
TE Connectivity AMP Connectors 745187-8	-55 C	105 ░C	Thermoplastic	Phosphor Bronze	Black	125 VDC	6 A	Gold	Solder	D-Sub	2	Flash	Through Hole	UL94 V-0	25	Receptacle Female Sockets	B DB	3	Signal	Housing/Shell (Unthreaded)
TE Connectivity AMP Connectors 745187-3	-55 C	105 ░C	Thermoplastic	Phosphor Bronze	Black	125 VDC	6 A	Gold	Solder	D-Sub	2	Flash	Through Hole	UL94 V-0	25	Receptacle Female Sockets	B DB	3	Signal	Housing/Shell (Unthreaded)
