HEN.1F Series

Manufacturer: LEMO

Catalog

CONN RCPT FMALE 8POS GOLD SOLDER

Part	Shielding	Ingress Protection	Current Rating (Amps)	Shell Material	Fastening Type	Color	Termination	Mounting Feature	Mounting Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Operating Temperature [Max]	Operating Temperature [Min]	Shell Size - Insert	Applications	Number of Positions	Material Flammability Rating	Primary Material	Orientation	Shell Finish	Contact Finish - Mating	Features	Connector Type	Insert Material	Contact Material	Shell Size - Insert [custom]
LEMO HEN.1F.308.XLVP	Shielded	IP68 - Dust Tight Waterproof	5 A	Aluminum Alloy	Push-Pull	Gray	Solder	Bulkhead - Front Side Nut	Panel Mount Right Angle Through Hole	1.5 Ám	59 Áin	100 °C	-15 °C	308	Aerospace	8	UL94 V-0	Metal	N (Normal)	Nickel	Gold	Potted	Receptacle Female Sockets	Polyetheretherketone (PEEK)	Bronze
LEMO HEN.1F.307.XLNP	Shielded	IP68 - Dust Tight Waterproof	7 A	Aluminum Alloy	Push-Pull	Gray	Solder	Bulkhead - Front Side Nut	Panel Mount Through Hole	1.5 Ám	59 Áin	100 °C	-15 °C		Aerospace	7	UL94 V-0	Metal	N (Normal)	Nickel	Gold	Potted	Receptacle Female Sockets	Polyetheretherketone (PEEK)	Bronze	307
LEMO HEN.1F.303.XLVP	Shielded	IP68 - Dust Tight Waterproof	12 Amps	Aluminum Alloy	Push-Pull	Gray	Solder	Bulkhead - Front Side Nut	Panel Mount Right Angle Through Hole	1.5 Ám	59 Áin	100 °C	-15 °C	303	Aerospace		UL94 V-0	Metal	N (Normal)	Nickel	Gold	Potted	Receptacle Female Sockets	Polyetheretherketone (PEEK)	Bronze
LEMO HEN.1F.308.XLNP	Shielded	IP68 - Dust Tight Waterproof	5 A	Aluminum Alloy	Push-Pull	Gray	Solder	Bulkhead - Front Side Nut	Panel Mount Through Hole	1.5 Ám	59 Áin	100 °C	-15 °C	308	Aerospace	8	UL94 V-0	Metal	N (Normal)	Nickel	Gold	Potted	Receptacle Female Sockets	Polyetheretherketone (PEEK)	Bronze

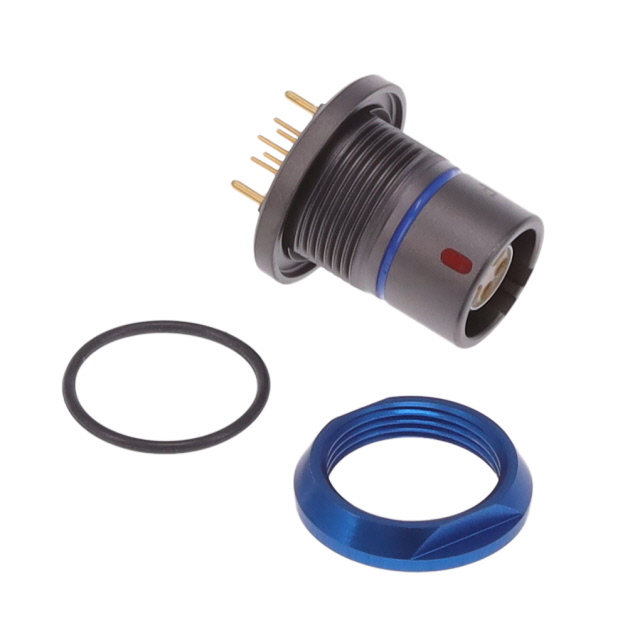

LEMO HEN.1F.305.XLNP	Shielded	IP68 - Dust Tight Waterproof	9 A	Aluminum Alloy	Push-Pull	Gray	Solder	Bulkhead - Front Side Nut	Panel Mount Through Hole	1.5 Ám	59 Áin	100 °C	-15 °C	305	Aerospace	5	UL94 V-0	Metal	N (Normal)	Nickel	Gold	Potted	Receptacle Female Sockets	Polyetheretherketone (PEEK)	Bronze
LEMO HEN.1F.303.XLNP	Shielded	IP68 - Dust Tight Waterproof	12 Amps	Aluminum Alloy	Push-Pull	Gray	Solder	Bulkhead - Front Side Nut	Panel Mount Through Hole	1.5 Ám	59 Áin	100 °C	-15 °C	303	Aerospace		UL94 V-0	Metal	N (Normal)	Nickel	Gold	Potted	Receptacle Female Sockets	Polyetheretherketone (PEEK)	Bronze
