PRPC012 Series

Manufacturer: Sullins Connector Solutions

Catalog

CONN HEADER VERT 24POS 2.54MM

Part	Contact Finish Thickness - Post	Contact Material	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Length - Post	Contact Length - Post	Number of Positions Loaded	Contact Type	Current Rating (Amps)	Termination	Contact Length - Mating	Contact Length - Mating	Insulation Height	Insulation Height	Connector Type	Contact Finish Thickness - Mating	Contact Shape	Insulation Color	Mounting Type	Contact Finish - Post	Overall Contact Length	Overall Contact Length	Pitch - Mating	Pitch - Mating	Number of Positions	Style	Insulation Material	Fastening Type	Material Flammability Rating	Number of Rows [custom]	Shrouding	Contact Finish - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows	Overall Contact Length	Overall Contact Length [x]	Overall Contact Length [x]
Sullins Connector Solutions PRPC012DABN-RC	Flash	Brass	0.1 in	2.54 mm	5.84 mm	0.23 "	All	Male Pin	3 A	Solder	0.23 in	5.84 mm	0.098 "	2.5 mm	Header Breakaway	Flash	Square	Black	Through Hole	Gold	0.558 in	14.18 mm	0.1 "	2.54 mm	24	Board to Board Cable	Polybutylene Terephthalate (PBT)	Push-Pull	UL94 V-0	2	Unshrouded	Gold	-40 C	105 ░C

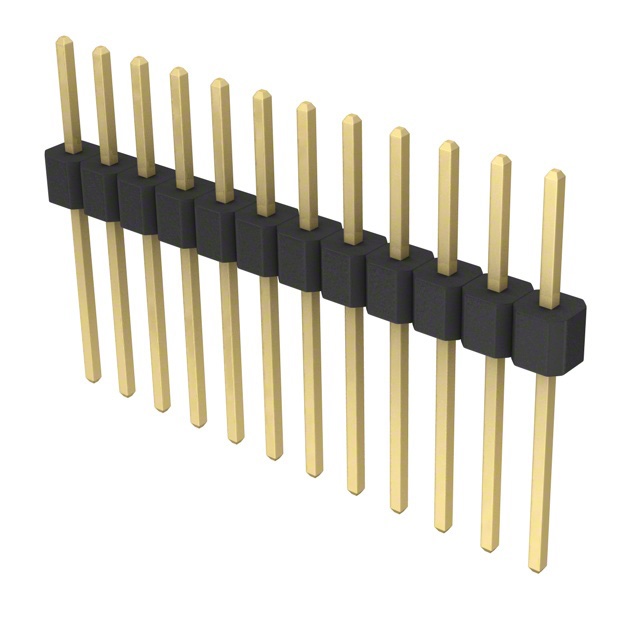

Sullins Connector Solutions PRPC012SADN-RC	Flash	Brass			10.67 mm	0.42 in	All	Male Pin	3 A	Solder	0.23 in	5.84 mm	0.098 "	2.5 mm	Header Breakaway	Flash	Square	Black	Through Hole	Gold	0.748 in	19.01 mm	0.1 "	2.54 mm	12	Board to Board Cable	Polybutylene Terephthalate (PBT)	Push-Pull	UL94 V-0		Unshrouded	Gold	-40 C	105 ░C	1

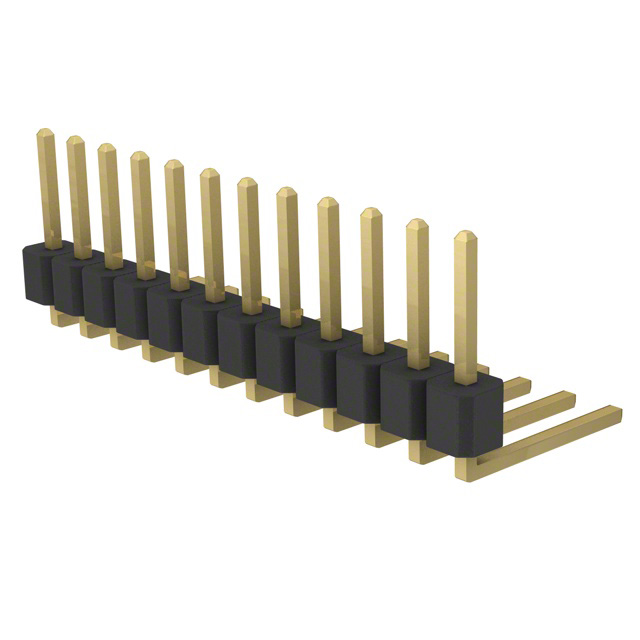

Sullins Connector Solutions PRPC012SBCN-M71RC	Flash	Brass			8.13 mm	0.32 in	All	Male Pin	3 A	Solder	0.23 in	5.84 mm	0.098 "	2.5 mm	Header Breakaway	Flash	Square	Black	Right Angle Through Hole	Gold			0.1 "	2.54 mm	12	Board to Board Cable	Polybutylene Terephthalate (PBT)	Push-Pull	UL94 V-0		Unshrouded	Gold	-40 C	105 ░C	1

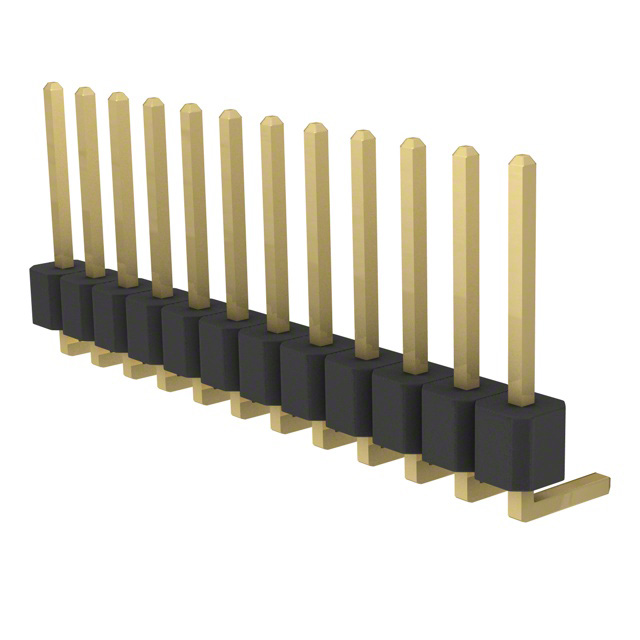

Sullins Connector Solutions PRPC012SGAN-M71RC	Flash	Brass			3.05 mm	0.12 in	All	Male Pin	3 A	Solder	0.318 in	8.08 mm	0.098 "	2.5 mm	Header Breakaway	Flash	Square	Black	Right Angle Through Hole	Gold			0.1 "	2.54 mm	12	Board to Board Cable	Polybutylene Terephthalate (PBT)	Push-Pull	UL94 V-0		Unshrouded	Gold	-40 C	105 ░C	1

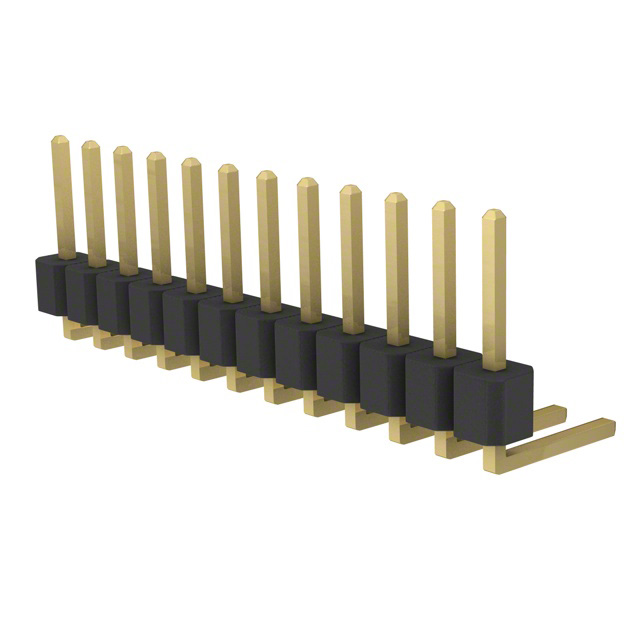

Sullins Connector Solutions PRPC012SBBN-M71RC	Flash	Brass			5.58 mm	0.22 in	All	Male Pin	3 A	Solder	0.23 in	5.84 mm	0.098 "	2.5 mm	Header Breakaway	Flash	Square	Black	Right Angle Through Hole	Gold			0.1 "	2.54 mm	12	Board to Board Cable	Polybutylene Terephthalate (PBT)	Push-Pull	UL94 V-0		Unshrouded	Gold	-40 C	105 ░C	1
Sullins Connector Solutions PRPC012DAAN-RC	Flash	Brass	0.1 in	2.54 mm	3.05 mm	0.12 in	All	Male Pin	3 A	Solder	0.23 in	5.84 mm	0.098 "	2.5 mm	Header Breakaway	Flash	Square	Black	Through Hole	Gold	0.448 in	11.39 mm	0.1 "	2.54 mm	24	Board to Board Cable	Polybutylene Terephthalate (PBT)	Push-Pull	UL94 V-0	2	Unshrouded	Gold	-40 C	105 ░C
Sullins Connector Solutions PRPC012DFBN-RC	Flash	Brass	0.1 in	2.54 mm	5.58 mm	0.22 in	All	Male Pin	3 A	Solder	0.318 in	8.08 mm	0.098 "	2.5 mm	Header Breakaway	Flash	Square	Black	Through Hole	Gold		0.637 in	0.1 "	2.54 mm	24	Board to Board Cable	Polybutylene Terephthalate (PBT)	Push-Pull	UL94 V-0	2	Unshrouded	Gold	-40 C	105 ░C		16.17 mm
Sullins Connector Solutions PRPC012DFAN-RC	Flash	Brass	0.1 in	2.54 mm	3.05 mm	0.12 in	All	Male Pin	3 A	Solder	0.318 in	8.08 mm	0.098 "	2.5 mm	Header Breakaway	Flash	Square	Black	Through Hole	Gold			0.1 "	2.54 mm	24	Board to Board Cable	Polybutylene Terephthalate (PBT)	Push-Pull	UL94 V-0	2	Unshrouded	Gold	-40 C	105 ░C			13.63 mm	0.537 in
Sullins Connector Solutions PRPC012SAAN-RC	Flash	Brass			3.05 mm	0.12 in	All	Male Pin	3 A	Solder	0.23 in	5.84 mm	0.098 "	2.5 mm	Header Breakaway	Flash	Square	Black	Through Hole	Gold	0.448 in	11.39 mm	0.1 "	2.54 mm	12	Board to Board Cable	Polybutylene Terephthalate (PBT)	Push-Pull	UL94 V-0		Unshrouded	Gold	-40 C	105 ░C	1

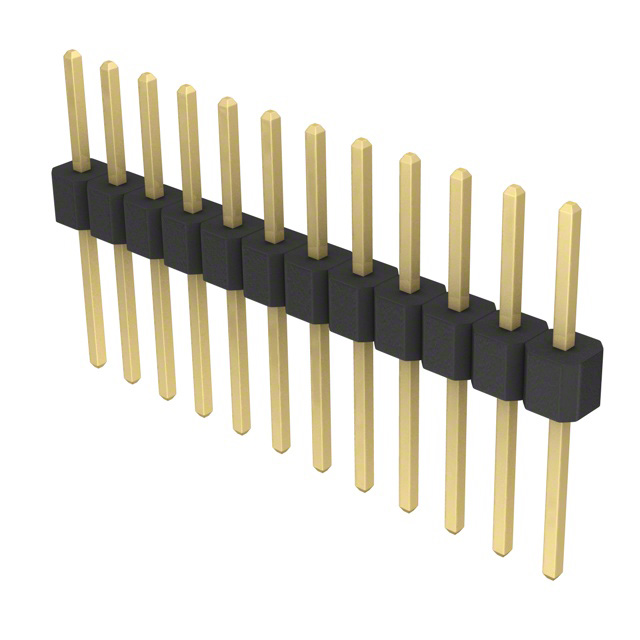

Sullins Connector Solutions PRPC012SACN-RC	Flash	Brass			8.13 mm	0.32 in	All	Male Pin	3 A	Solder	0.23 in	5.84 mm	0.098 "	2.5 mm	Header Breakaway	Flash	Square	Black	Through Hole	Gold			0.1 "	2.54 mm	12	Board to Board Cable	Polybutylene Terephthalate (PBT)	Push-Pull	UL94 V-0		Unshrouded	Gold	-40 C	105 ░C	1		16.47 mm	0.648 in
