9776 Series
Manufacturer: Belden Inc.
Beta
⌘K

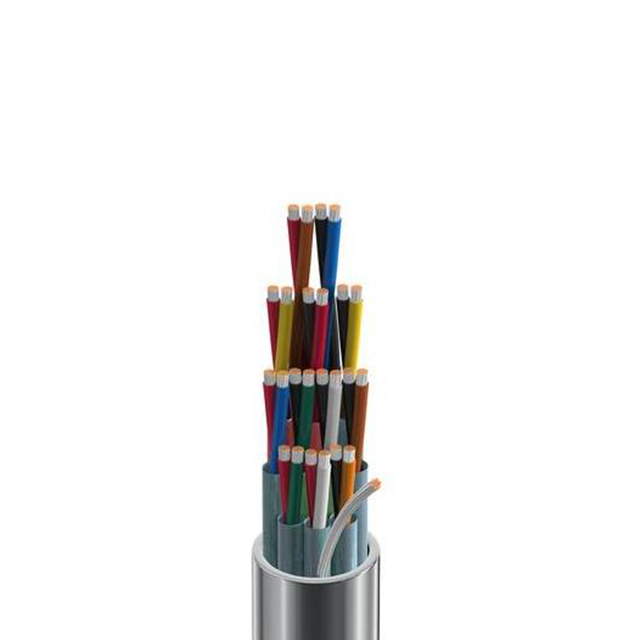

MULTI-PAIR 24COND 18AWG
| Part | Shield Material | Shield Coverage | Jacket (Insulation) Material | Length | Length | Ratings | Conductor Strand [custom] | Conductor Strand [custom] | Conductor Material | Conductor Insulation | Operating Temperature [Max] | Operating Temperature [Min] | Shield Type | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Wire Gauge | Number of Conductors | Usage | Features | Jacket Color | Cable Type | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Aluminum | 100 % | Poly-Vinyl Chloride (PVC) | 152.4 m | 500 ft | UL Style 2919 | 30 AWG | 19 | Copper Tinned | Polypropylene (PP) | 80 °C | -20 ░C | Foil | 0.052 in | 1.321 mm | 18 AWG | 24 | Audio Control Instrumentation | Drain Wire | Chrome | Multi-Pair | 18.67 mm | 0.735 in | ||
Belden Inc. | Aluminum | 100 % | Poly-Vinyl Chloride (PVC) | UL Style 2919 | 30 AWG | 19 | Copper Tinned | Polypropylene (PP) | 80 °C | -20 ░C | Foil | 0.052 in | 1.321 mm | 18 AWG | 24 | Audio Control Instrumentation | Drain Wire | Chrome | Multi-Pair | 18.67 mm | 0.735 in | 100 ft | 30.5 m | ||
Belden Inc. | Aluminum | 100 % | Poly-Vinyl Chloride (PVC) | 304.8 m | 1000 ft | UL Style 2919 | 30 AWG | 19 | Copper Tinned | Polypropylene (PP) | 80 °C | -20 ░C | Foil | 0.052 in | 1.321 mm | 18 AWG | 24 | Audio Control Instrumentation | Drain Wire | Chrome | Multi-Pair | 18.67 mm | 0.735 in |
