14-235 Series
Manufacturer: EAO
Beta
⌘K

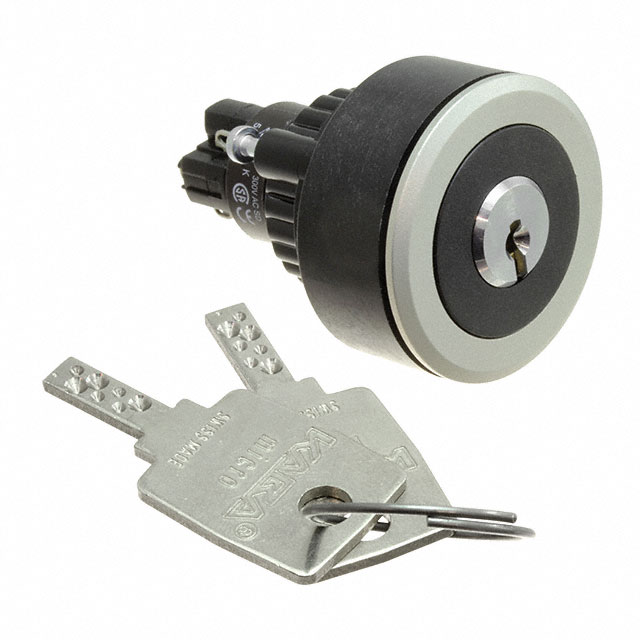

KEYLOCK SWITCH 2 POSITIONS REST(A)-MAINTAINED SA 1NC+1NO ST/PT D29 GOLD/SILVER 1001 ROHS COMPLIANT: YES
| Part | Mechanical Life | Depth Behind Flange [z] | Angle of Throw | Mounting Type | Actuator Type | Current Rating (Amps) | Switch Function | Contact Timing | Key Removable Positions | Operating Temperature [Max] | Operating Temperature [Min] | Circuit | Features | Number of Positions | Panel Cutout Dimensions [diameter] | Voltage Rating - AC | Termination Style | Depth Behind Flange |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EAO | 1000000 Cycles | 45.5 mm | 90 ° | Panel Mount | Flat Key | 5 A | Off-On On-Off | Not Specified | 1 | 55 °C | -25 °C | DPST-NO/NC | IP65 | 2 | 22.3 mm | 250 V | Solder Quick Connect - 0.110" (2.8mm) | |
 EAO | 1000000 Cycles | 90 ° | Panel Mount | Flat Key | 5 A | Off-On On-Off | Not Specified | 1 | 55 °C | -25 °C | DPST-NO/NC | IP65 | 2 | 22.3 mm | 250 V | Solder Lug | 35.5 mm |
