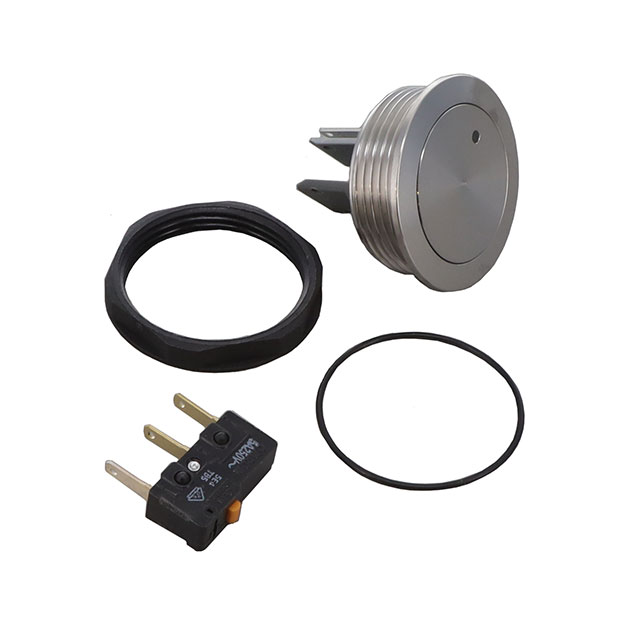

1241.6663 Series
Manufacturer: SCHURTER Inc.
Beta
⌘K
SWITCH PUSHBUTTON SPDT 10A 250V
| Part | Electrical Life | Mechanical Life | Circuit | Type | Color - Actuator/Cap | Actuator Type | Panel Cutout Dimensions [diameter] | Illumination Type, Color | Termination Style | Current Rating (Amps) | Switch Function | Illumination Voltage (Nominal) | Mounting Type | Voltage Rating - AC | Actuator Marking | Operating Temperature [Max] | Operating Temperature [Min] | Ingress Protection | Voltage Rating - DC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SCHURTER Inc. | 50000 Cycles | 1500000 Cycles | SPDT | Anti-Vandal Illuminated | Silver | Button Flush Round | 30.1 mm | Green LED | Quick Connect - 0.110" (2.8mm) | 10 A | On-Mom | 2.1 VDC | Panel Mount Front | 250 V | No Marking | 85 °C | -25 °C | IP40 | |
 SCHURTER Inc. | 200000 Cycles | 1500000 Cycles | SPDT | Anti-Vandal Illuminated | Silver | Button Flush Round | 30.1 mm | LED Red | Quick Connect - 0.110" (2.8mm) | 5 A | On-Mom | 1.9 VDC | Panel Mount Front | 125 V | No Marking | 85 °C | -25 °C | IP40 | |
 SCHURTER Inc. | 200000 Cycles | 1500000 Cycles | SPDT | Anti-Vandal Illuminated | Silver | Button Flush Round | 30.1 mm | Green LED | Quick Connect - 0.110" (2.8mm) | 100 mA | On-Mom | 2.1 VDC | Panel Mount Front | No Marking | 85 °C | -25 °C | IP40 | 30 V | |
 SCHURTER Inc. | 200000 Cycles | 1500000 Cycles | SPDT | Anti-Vandal Illuminated | Silver | Button Flush Round | 30.1 mm | Green LED | Quick Connect - 0.110" (2.8mm) | 5 A | On-Mom | 2.1 VDC | Panel Mount Front | 125 V | No Marking | 85 °C | -25 °C | IP40 |
