TR9CG11330 Series

Catalog

AC/DC DESKTOP ADAPTER 15V 170W

Part	Standard Number	Region Utilized	Current - Output (Max) [Max]	Efficiency	Cord Length	Cord Length	Input Connector	Operating Temperature [Max]	Operating Temperature [Min]	Input Type	No Load Power Consumption	Output Connector	Voltage - Output	Voltage - Input [Max]	Voltage - Input [Min]	Power (Watts)	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Applications	Form

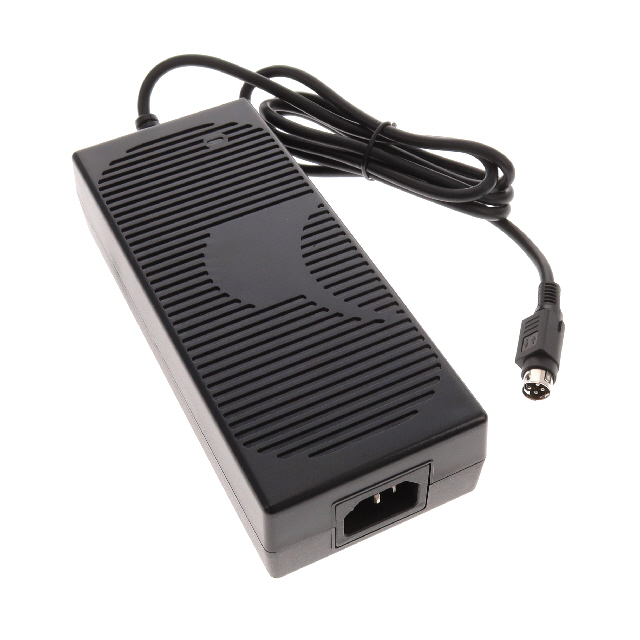

GlobTek, Inc. TR9CG11330YL4IMCFR6B	60335-1 60601-1 60950-1 62368-1	International	11.3 A	CoC Tier 1 Level VI	1.2 m	47.2 in	IEC 320-C14	40 °C	-10 °C	Cord (Sold Separately)	150 mW	Power DIN 4 Pin	15 V	264 VAC	90 VAC	170 W	34 mm	62.8 mm	149.4 mm	2.47 "	5.88 "	1.34 "	Household Appliances ITE (Commercial) Medical	Desktop (Class I)

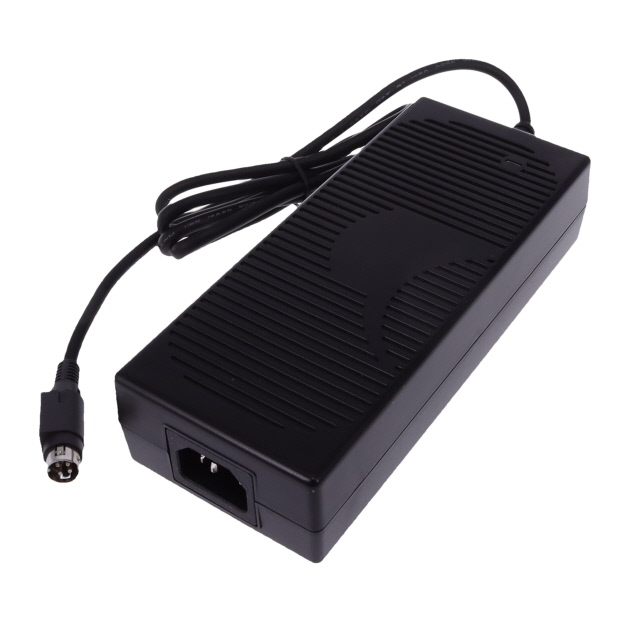

GlobTek, Inc. TR9CG11330YL4IMR6B	60335-1 60601-1-11 60601-1-2 60950-1 62368-1	International	11.33 A	CoC Tier 2 Level VI	1.2 m	47.2 in	IEC 320-C14	40 °C	-10 °C	Cord (Sold Separately)	150 mW	Power DIN 4 Pin	15 V	264 VAC	90 VAC	170 W	40 mm	74 mm	176.5 mm	2.91 in	6.95 in	1.58 in	Household Appliances ITE (Commercial) Medical	Desktop (Class I)
