9806 Series
Manufacturer: Belden Inc.
Beta
⌘K

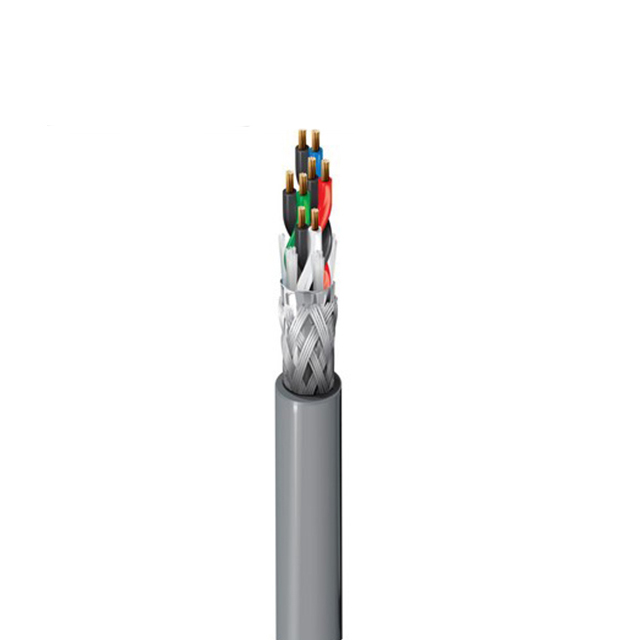

MULTI-PAIR 8CON 28AWG CHROM
| Part | Shield Material | Shield Coverage | Conductor Insulation | Conductor Strand [custom] | Conductor Strand [custom] | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Ratings | Jacket (Insulation) Material | Shield Type | Length | Length | Cable Type | Usage | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Wire Gauge | Features | Conductor Material | Number of Conductors | Jacket Color | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Aluminum Copper Tinned | 90 % 100 % | Polypropylene (PP) | 7 | 36 AWG | 0.035 in | 0.889 mm | UL Style 2960 | Poly-Vinyl Chloride (PVC) | Braid Foil | 152.4 m | 500 ft | Multi-Pair | Computer | 6.02 mm | 0.237 " | 28 AWG | Drain Wire | Copper Tinned | 8 | Chrome | -20 ░C | 60 °C |
