TPS59603-Q1 Series

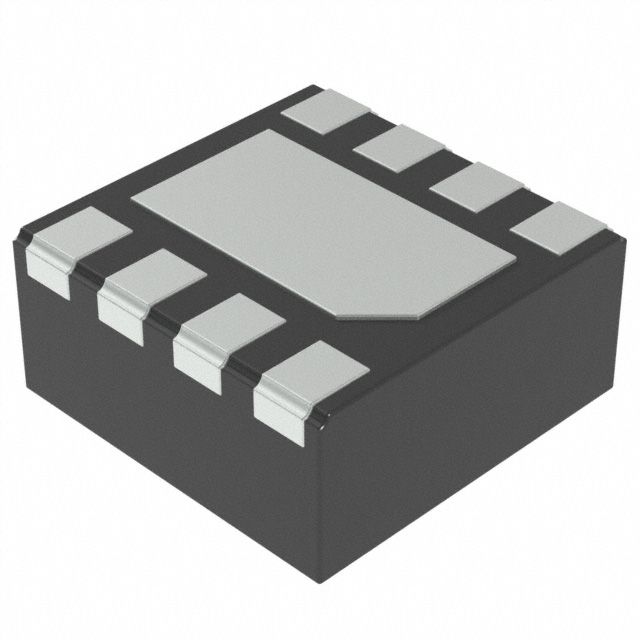

The TPS59603-Q1 drivers are optimized for high-frequency CPU VCOREapplications. Advanced features such as reduced dead-time drive and auto zero crossing are used to optimize efficiency over the entire load range. TheSKIPpin provides the option of CCM operation to support controlled management of the output voltage. In addition, the TPS59603-Q1 supports two low-power modes. With the PWM input in tri-state, quiescent current is reduced to 130 µA, with immediate response. WhenSKIPis held at tri-state, the current is reduced to 8 µA (typically 20 µs is required to resume switching). Paired with the appropriate TI controller, the drivers deliver an exceptionally high performance power supply system. The TPS59603-Q1 device is packaged in a space saving, thermally-enhanced 8-pin, 2-mm x 2-mm wettable flanks WSON package and operates from –40°C to 125°C. The TPS59603-Q1 drivers are optimized for high-frequency CPU VCOREapplications. Advanced features such as reduced dead-time drive and auto zero crossing are used to optimize efficiency over the entire load range. TheSKIPpin provides the option of CCM operation to support controlled management of the output voltage. In addition, the TPS59603-Q1 supports two low-power modes. With the PWM input in tri-state, quiescent current is reduced to 130 µA, with immediate response. WhenSKIPis held at tri-state, the current is reduced to 8 µA (typically 20 µs is required to resume switching). Paired with the appropriate TI controller, the drivers deliver an exceptionally high performance power supply system. The TPS59603-Q1 device is packaged in a space saving, thermally-enhanced 8-pin, 2-mm x 2-mm wettable flanks WSON package and operates from –40°C to 125°C.
