MLW3015 Series
Manufacturer: NKK Switches
Beta
⌘K
SWITCH ROCKER SPDT 5A 125V
| Part | Electrical Life | Mechanical Life | Circuit | Illumination Type, Color | Mounting Type | Actuator Marking | Voltage Rating - AC | Features | Panel Cutout Dimensions [y] | Panel Cutout Dimensions [x] | Actuator Type | Termination Style | Illumination Voltage (Nominal) | Voltage Rating - DC | Approval Agency | Color - Actuator/Cap | Operating Temperature [Max] | Operating Temperature [Min] | Switch Function | Current Rating (Amps) | Panel Cutout Dimensions [custom] | Panel Cutout Dimensions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

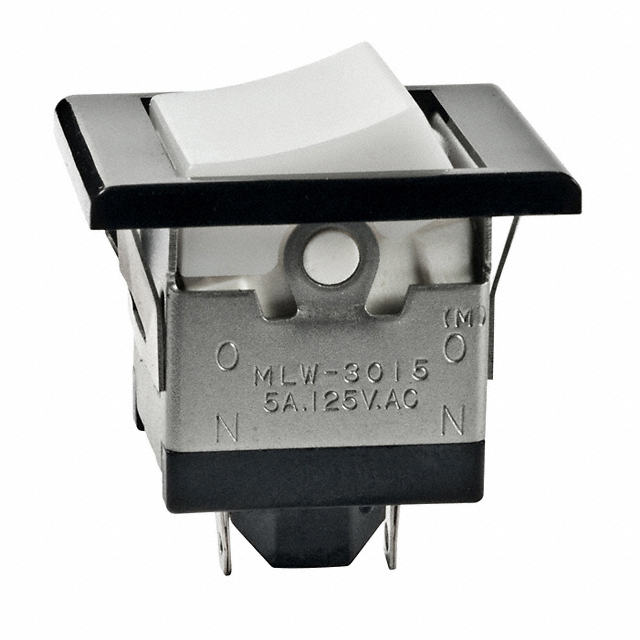

 NKK Switches | 10000 Cycles | 30000 Steps | SPDT | Incandescent White | Panel Mount Snap-In | No Marking | 125 V | Epoxy Sealed Terminals | 16.7 mm | 18.7 mm | Concave (Curved) - Illuminated | Solder Lug | 12 VAC | 30 V | UL | White | 50 °C | -10 °C | On-Mom | 3 A 5 A | ||
 NKK Switches | 10000 Cycles | 30000 Steps | SPDT | Panel Mount Snap-In | No Marking | 125 V | Epoxy Sealed Terminals | 16.7 mm | 18.7 mm | Concave (Curved) | Solder Lug | 30 V | UL | Black | 50 °C | -10 °C | On-Mom | 3 A 5 A | ||||

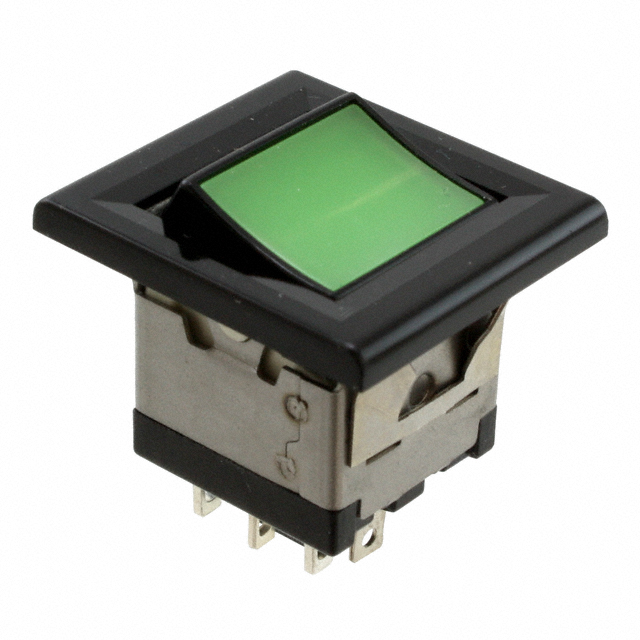

 NKK Switches | 10000 Cycles | 30000 Steps | SPDT | Green LED | Panel Mount Snap-In | No Marking | 125 V | Epoxy Sealed Terminals | Concave (Curved) - Illuminated | Solder Lug | 2.1 VDC | 30 V | UL | Green | 50 °C | -10 °C | On-Mom | 3 A 5 A | 19.2 mm˛ | 19.2 mm² | ||
NKK Switches | 10000 Cycles | 30000 Steps | SPDT | Green LED | Panel Mount Snap-In | No Marking | 125 V | Epoxy Sealed Terminals | 16.7 mm | 18.7 mm | Concave (Curved) - Illuminated | Solder Lug | 2.1 VDC | 30 V | UL | Green | 50 °C | -10 °C | On-Mom | 3 A 5 A | ||
NKK Switches | 10000 Cycles | 30000 Steps | SPDT | LED Red | Panel Mount Snap-In | No Marking | 125 V | Epoxy Sealed Terminals | 16.7 mm | 18.7 mm | Sculptured - Illuminated | Solder Lug | 1.85 VDC | 30 V | UL | Red | 50 °C | -10 °C | On-Mom | 3 A 5 A | ||
NKK Switches | 10000 Cycles | 30000 Steps | SPDT | Panel Mount Snap-In | No Marking | 125 V | Epoxy Sealed Terminals | 16.7 mm | 18.7 mm | Paddle | Solder Lug | 30 V | UL | Black | 50 °C | -10 °C | On-Mom | 3 A 5 A | ||||
NKK Switches | 10000 Cycles | 30000 Steps | SPDT | Panel Mount Snap-In | Varies by Cap | 125 V | 16.7 mm | 18.7 mm | Actuator Arm Cap Required | Solder Lug | 30 V | UL | 50 °C | -10 °C | On-Mom | 3 A 5 A |
