9330 Series
Manufacturer: Belden Inc.
Beta
⌘K

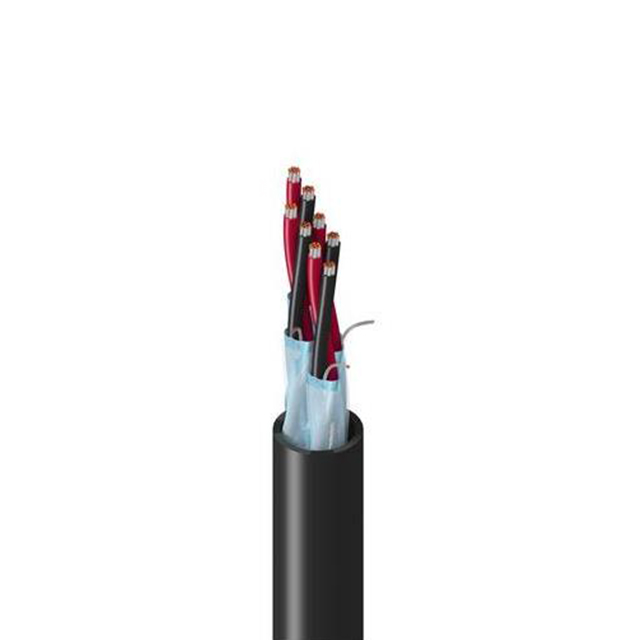

MULTI-PAIR 8COND 22AWG
| Part | Shield Material | Shield Coverage | Conductor Strand [custom] | Conductor Strand [custom] | Conductor Material | Conductor Insulation | Wire Gauge | Ratings | Number of Conductors | Cable Type | Jacket Color | Features | Jacket (Insulation) Material | Shield Type | Usage | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Operating Temperature [Min] | Operating Temperature [Max] | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Aluminum | 100 % | 30 AWG | 7 | Copper Tinned | Poly-Vinyl Chloride (PVC) | 22 AWG | UL Style 2464 | 8 | Multi-Pair | Chrome | Drain Wire Rip Cord | Poly-Vinyl Chloride (PVC) | Foil | Instrumentation | 0.372 in | 9.45 mm | 0.042 in | 1.067 mm | -30 ░C | 105 ░C | ||
Belden Inc. | Aluminum | 100 % | 30 AWG | 7 | Copper Tinned | Poly-Vinyl Chloride (PVC) | 22 AWG | UL Style 2464 | 8 | Multi-Pair | Chrome | Drain Wire Rip Cord | Poly-Vinyl Chloride (PVC) | Foil | Instrumentation | 0.372 in | 9.45 mm | 0.042 in | 1.067 mm | -30 ░C | 105 ░C | 304.8 m | 1000 ft |
Belden Inc. | Aluminum | 100 % | 30 AWG | 7 | Copper Tinned | Poly-Vinyl Chloride (PVC) | 22 AWG | UL Style 2464 | 8 | Multi-Pair | Chrome | Drain Wire Rip Cord | Poly-Vinyl Chloride (PVC) | Foil | Instrumentation | 0.372 in | 9.45 mm | 0.042 in | 1.067 mm | -30 ░C | 105 ░C | 152.4 m | 500 ft |
